Hubbell Wiring Device-Kellems

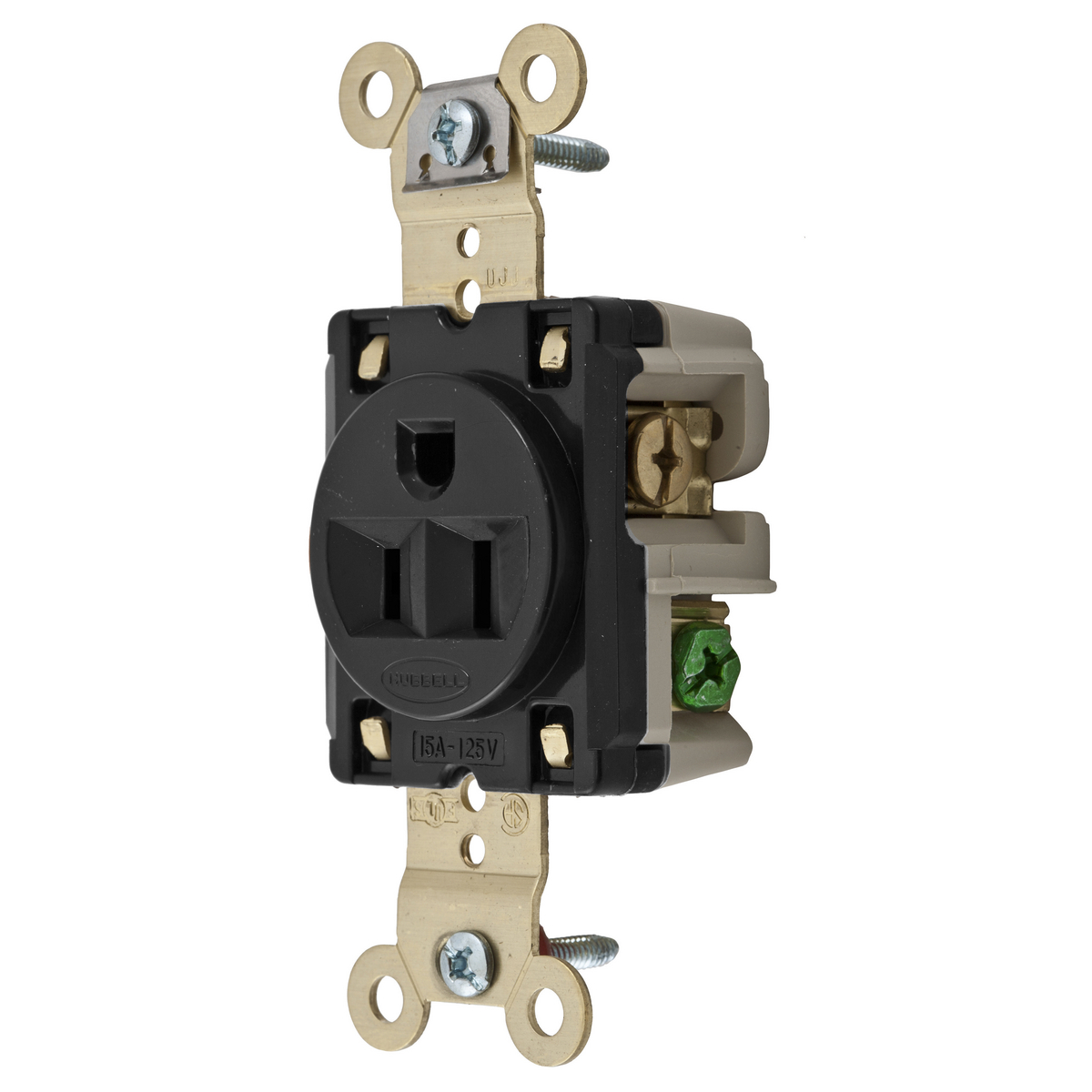

Hubbell Wiring Device-Kellems HCI HBL5261BK SGL RCPT, IND GRD, 15
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HCI HBL5261BK SGL RCPT, IND GRD, 15
SKU91464
MFGR #HBL5261BK
Your Cost: $31.27/ea
SGL RCPT, IND GRD, 15A 125V, 5-15R, BK
SGL RCPT, IND GRD, 15A 125V, 5-15R, BK
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL5261BK Connection Back and Side Wired Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.63 in W x 1.19 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Specification Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.50 in Height [Metric] 3.8100 cm Horsepower 1/2 hp Length 3.80 in Length [Metric] 9.6520 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-15R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.63 in x 1.19 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards CSA 22.2 No. 42 285Federal Specification W-C-596Meets NEMA WD-6 RequirementsUL 498/E2186 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Single Receptacle UNSPSC 39121406 UPC 11 78358501494 UPC 12 783585014944 Wattage 1,875 W Width 1.80 in Width [Metric] 4.5720 cm Wire Size #14 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Black Number of Wires 3 Voltage Rating 125 VAC Extra Heavy Duty Specification Grade Self Grounding One piece brass integral ground strap Unique bypass contact design Traditional face shape Finder groove face NO 8 to 32 brass terminal screw and ground screw Nylon top and reinforced PET base 0.032 in brass power contact 0.05 in brass mounting strap Stainless steel auto ground clip Steel, zinc plated mounting screws Withstand 2000 VAC minimum dielectric voltage Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Terminals identified in accordance with UL498 14 to 10 AWG copper stranded or solid conductor only terminal accommodation Ratings are a permanent part of the device product identification UL 94V-2 top, UL 94V-0 base flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5261BK |
| Connection | Back and Side Wired |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.63 in W x 1.19 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Specification |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Horsepower | 1/2 hp |
| Length | 3.80 in |
| Length [Metric] | 9.6520 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.63 in x 1.19 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | CSA 22.2 No. 42 285Federal Specification W-C-596Meets NEMA WD-6 RequirementsUL 498/E2186 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358501494 |
| UPC 12 | 783585014944 |
| Wattage | 1,875 W |
| Width | 1.80 in |
| Width [Metric] | 4.5720 cm |
| Wire Size | #14 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Extra Heavy Duty Specification Grade |
| Self Grounding |
| One piece brass integral ground strap |
| Unique bypass contact design |
| Traditional face shape |
| Finder groove face |
| NO 8 to 32 brass terminal screw and ground screw |
| Nylon top and reinforced PET base |
| 0.032 in brass power contact |
| 0.05 in brass mounting strap |
| Stainless steel auto ground clip |
| Steel, zinc plated mounting screws |
| Withstand 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL498 |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device product identification |
| UL 94V-2 top, UL 94V-0 base flammability |
