Hubbell Wiring Device-Kellems

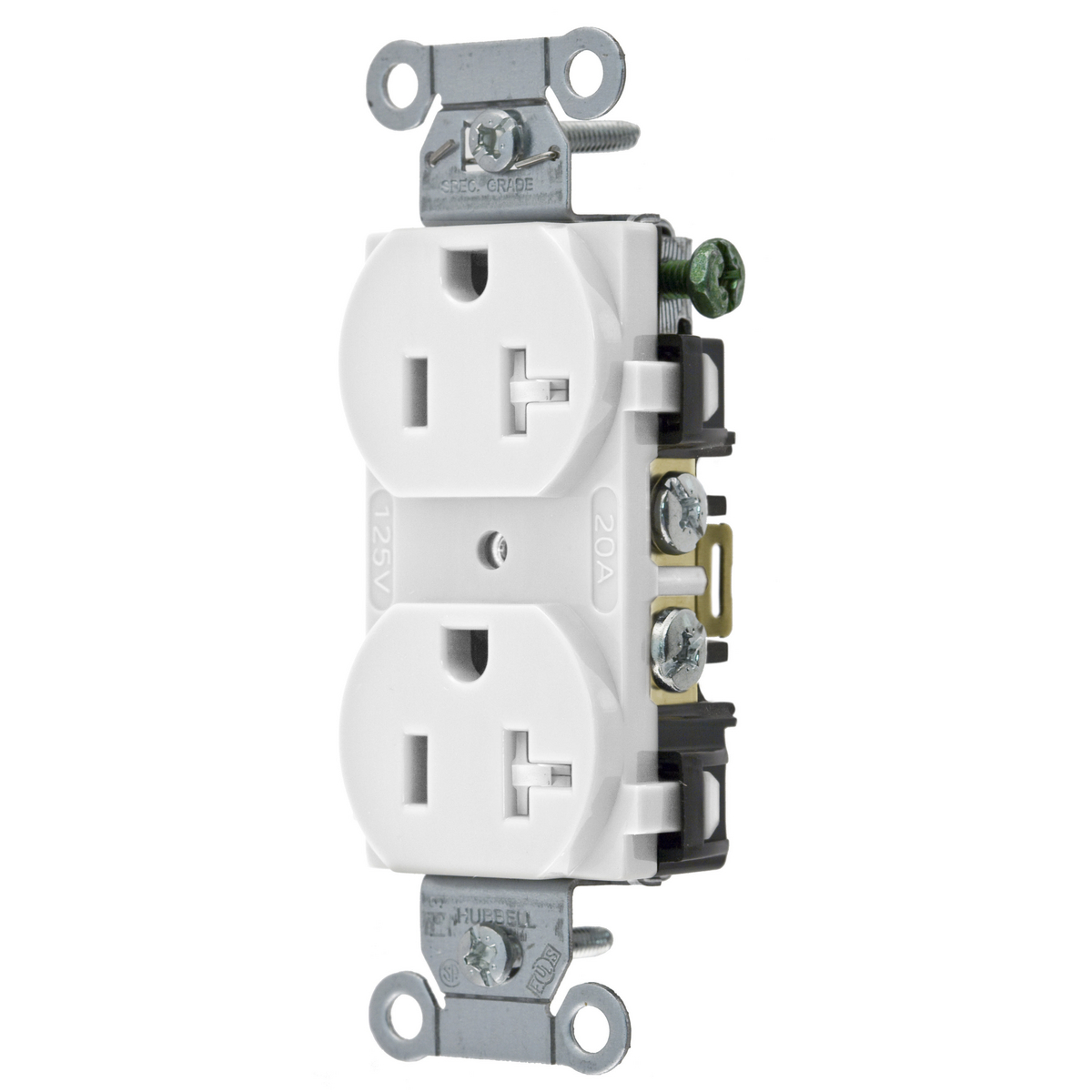

Hubbell Wiring Device-Kellems HCI BR20WHITR TAMP RES, COM GRD, 20
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HCI BR20WHITR TAMP RES, COM GRD, 20
SKU429149
MFGR #BR20WHITR
Your Cost: $8.29/ea
List: TAMP RES, COM GRD, 20A 125V, 5-20R,WH
TAMP RES, COM GRD, 20A 125V, 5-20R,WH
Application Commercial Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number BR20WHITR Connection Back and Side Wired Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.32 in L x 1.47 in W x 3.28 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Specification Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.15 in Height [Metric] 2.9210 cm Horsepower 1 hp Length 4.16 in Length [Metric] 10.5664 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 1.32 in x 1.47 in x 3.28 in Standard Certified to CSA C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal SpecificationUL 94-V-2 Flammability RatingNEC CertifiedNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Tamper-Resistant UNSPSC 39121406 UPC 11 78358514416 UPC 12 783585144160 Wattage 2,500 W Width 1.60 in Width [Metric] 4.0640 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 V Commercial Specification Grade Tamper Resistant- Self Grounding Smooth face Triple wipe contacts Wrap around galvanized steel strap
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BR20WHITR |
| Connection | Back and Side Wired |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.32 in L x 1.47 in W x 3.28 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Specification |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.15 in |
| Height [Metric] | 2.9210 cm |
| Horsepower | 1 hp |
| Length | 4.16 in |
| Length [Metric] | 10.5664 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.32 in x 1.47 in x 3.28 in |
| Standard | Certified to CSA C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal SpecificationUL 94-V-2 Flammability RatingNEC CertifiedNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 78358514416 |
| UPC 12 | 783585144160 |
| Wattage | 2,500 W |
| Width | 1.60 in |
| Width [Metric] | 4.0640 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Specification Grade |
| Tamper Resistant- Self Grounding |
| Smooth face |
| Triple wipe contacts |
| Wrap around galvanized steel strap |
