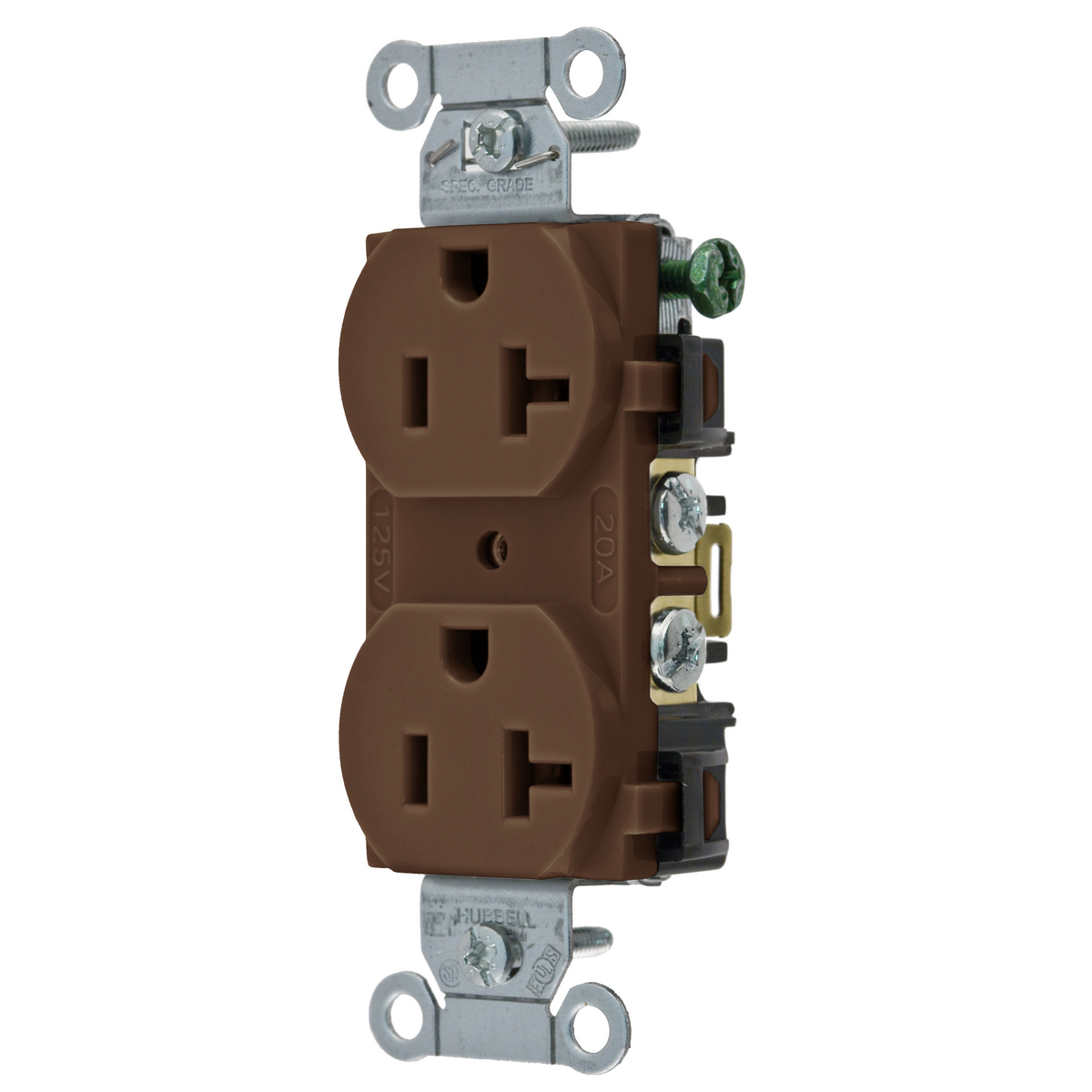

Hubbell Wiring Device-Kellems HCI BR20 RCPT, DUP SB, COM GRD, 20A
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HCI BR20 RCPT, DUP SB, COM GRD, 20A
SKU424893
MFGR #BR20
$/ea
RCPT, DUP SB, COM GRD, 20A 125V, B/S, BR
RCPT, DUP SB, COM GRD, 20A 125V, B/S, BR
Application Commercial Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number BR20 Connection Back and Side Wired Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.32 in L x 0.83 in W x 3.28 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Grade Commercial/Specification Gross Weight Per Pack 0.0410 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.06 in Height [Metric] 2.6924 cm Horsepower 1 hp Length 4.14 in Length [Metric] 10.5156 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 1.32 in x 0.83 in x 3.28 in Standard Certified to CSA 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL94 V-2 Flammability RatingNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Standard Duplex UNSPSC 39121406 UPC 11 78358514400 UPC 12 783585144009 Wattage 2,500 W Width 1.56 in Width [Metric] 3.9624 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 V Commercial Specification Grade Self Grounding Nylon face and base Triple wipe power contacts Wraparound galvanized steel strap Easy access split circuit tab
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BR20 |
| Connection | Back and Side Wired |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.32 in L x 0.83 in W x 3.28 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Grade | Commercial/Specification |
| Gross Weight Per Pack | 0.0410 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.06 in |
| Height [Metric] | 2.6924 cm |
| Horsepower | 1 hp |
| Length | 4.14 in |
| Length [Metric] | 10.5156 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.32 in x 0.83 in x 3.28 in |
| Standard | Certified to CSA 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL94 V-2 Flammability RatingNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358514400 |
| UPC 12 | 783585144009 |
| Wattage | 2,500 W |
| Width | 1.56 in |
| Width [Metric] | 3.9624 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Specification Grade |
| Self Grounding |
| Nylon face and base |
| Triple wipe power contacts |
| Wraparound galvanized steel strap |
| Easy access split circuit tab |
