Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HCI 5362BKWR HUBBELL PRO WR RECPT,
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HCI 5362BKWR HUBBELL PRO WR RECPT,
SKU982883
MFGR #5362BKWR
Your Cost: $13.72/ea

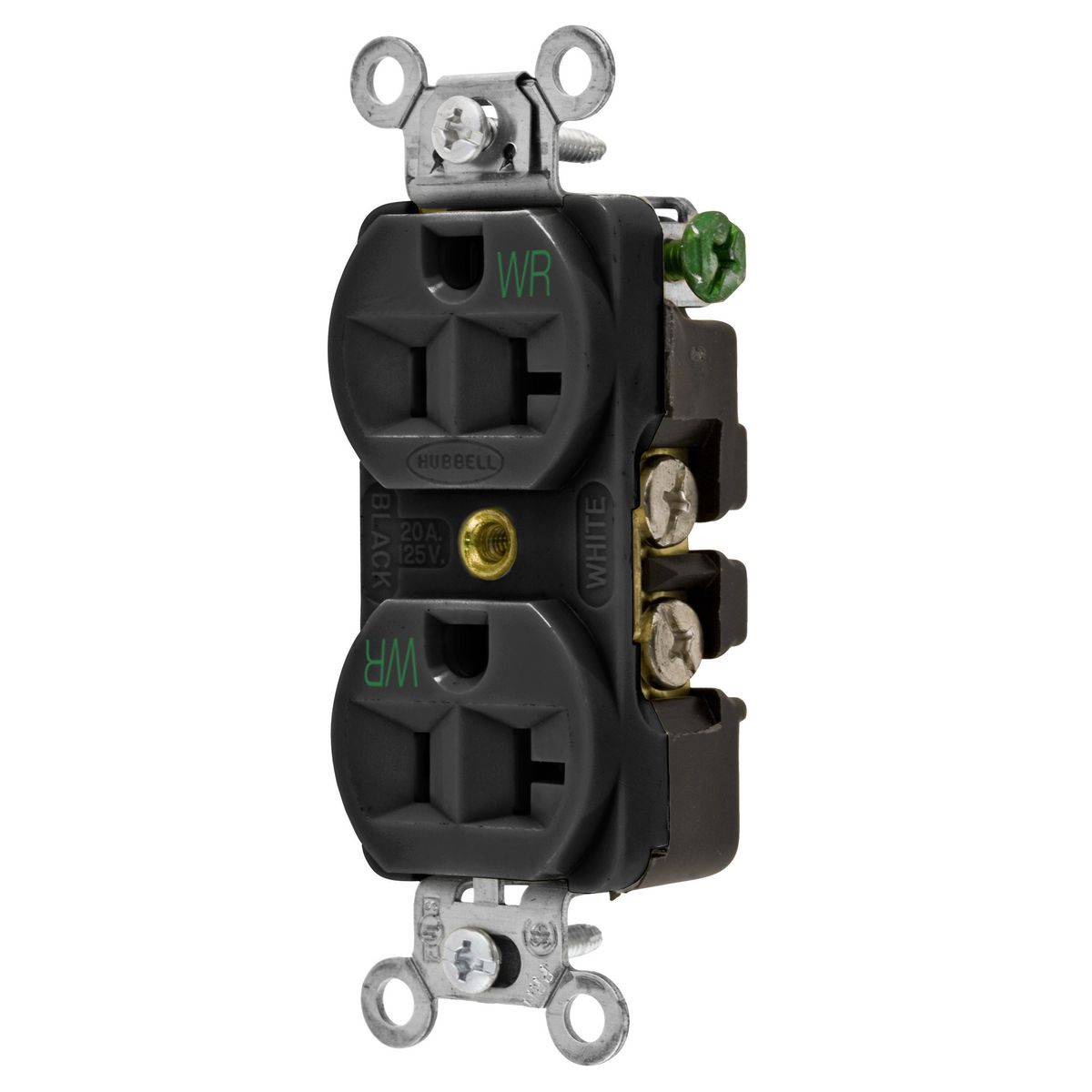

HUBBELL PRO WR RECPT, DUP, 20A 125V,BK
HUBBELL PRO WR RECPT, DUP, 20A 125V,BK
Application Hubbell-Pro Extra Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number 5362BKWR Connection Back and Side Wired Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.41 in W x 1.09 in D Environmental Conditions Weather Resistant EU RoHS Indicator N Grade Commercial/Industrial/Specification Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size Standard Sized Product Standard UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant Standards ARRA CompliantBuy American Act CompliantCSA CertifiedFederal Specification W-C-596NEMA WD1/WD5/WD6UL 498 Sub Brand Straight Blade Devices Temperature Rating Maximum continuous 75?°C; minimum -40?°C (w/o impact) °C Terminal Type Back/Side Wired Type Weather Resistant Duplex UNSPSC 39121406 UPC 11 78358535868 UPC 12 783585358680 Wattage 1,875 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Black Number of Wires 3 Voltage Rating 125 V Hubbell-Pro Extra Heavy Duty Self Grounding Circuit ID marking area on hospital grade Steel mounting strap and self-grounding Weather resistance complies with national electrical code requirements Compact design Finder groove face Triple wipe power contacts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Hubbell-Pro Extra Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5362BKWR |
| Connection | Back and Side Wired |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.41 in W x 1.09 in D |
| Environmental Conditions | Weather Resistant |
| EU RoHS Indicator | N |
| Grade | Commercial/Industrial/Specification |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | Standard Sized Product |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Standards | ARRA CompliantBuy American Act CompliantCSA CertifiedFederal Specification W-C-596NEMA WD1/WD5/WD6UL 498 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | Maximum continuous 75?°C; minimum -40?°C (w/o impact) °C |
| Terminal Type | Back/Side Wired |
| Type | Weather Resistant Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358535868 |
| UPC 12 | 783585358680 |
| Wattage | 1,875 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hubbell-Pro Extra Heavy Duty |
| Self Grounding |
| Circuit ID marking area on hospital grade |
| Steel mounting strap and self-grounding |
| Weather resistance complies with national electrical code requirements |
| Compact design |
| Finder groove face |
| Triple wipe power contacts |
