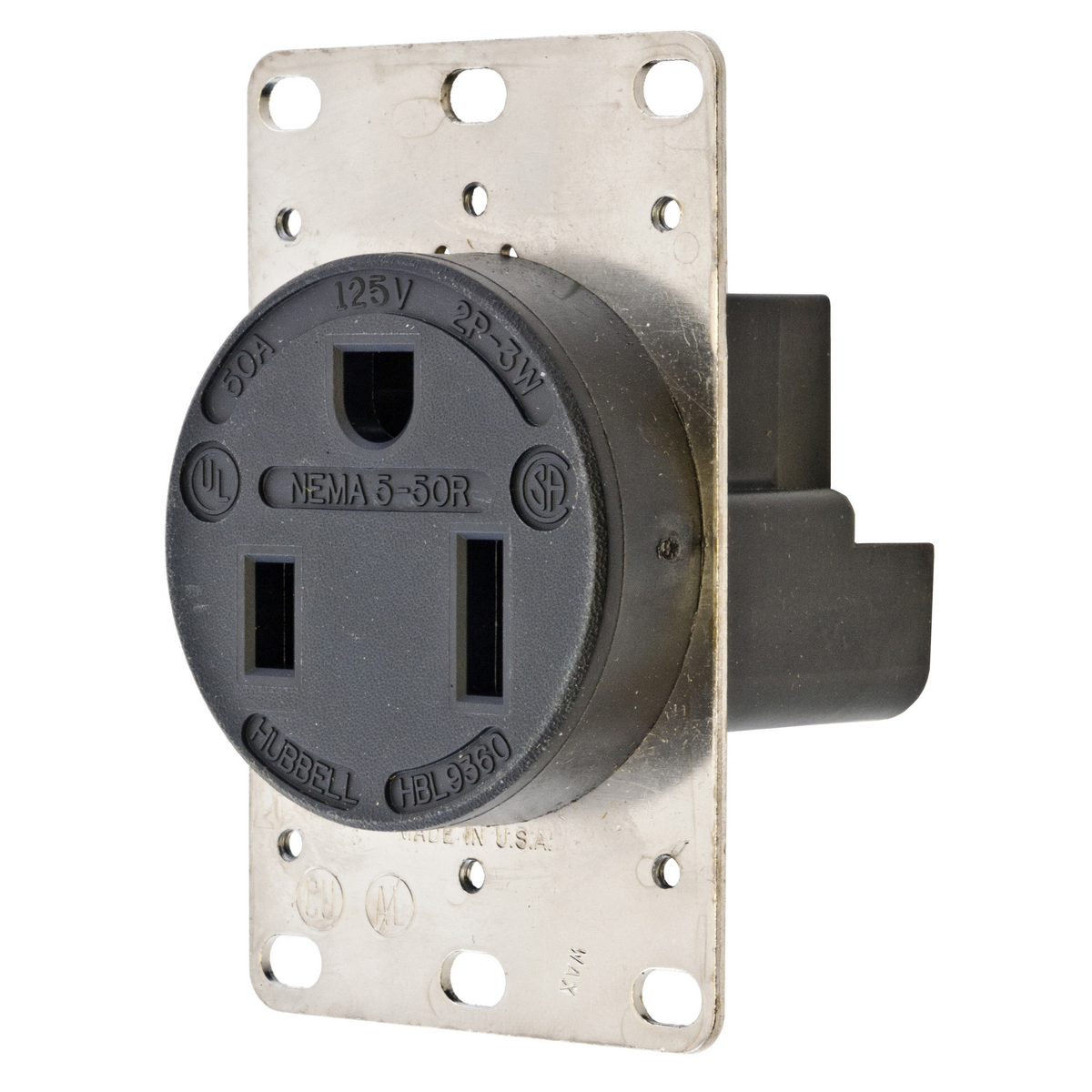

Hubbell Wiring Device-Kellems HBL9360 Single Outlet Grounding Straight Blade Receptacle, 125 VAC, 50 A, 2 Poles, 3 Wires, Black
Straight Blade Receptacles
26197
MFG #: HBL9360
Hubbell Wiring Device-Kellems
54.00000
/ ea
Hubbell® Straight Blade Receptacle, Single Outlet Grounding, 125 VAC, 50 A, 2 hp, 2 Poles, 3 Wires, NEMA 5-50R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Phenolic, Black, 2.57 in H x 2.23 in W
- Catalog URL - HUBBELL_HBL14W47A_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_R7T5DSAI4JH3K8NU.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666748315.pdf(Install Instructions URL)
- Line Drawing URL - 11456_HZKSCVEBXILU0R65.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_HTRDXIO5WPMC7AYG.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL9360_M8065_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty |
| Standard |
| Finder groove face |
| Plated steel terminal screw material |
| Plated steel ground screw material |
| Phenolic base material |
| 0.062 in plated steel mounting strap |
| Zinc plated steel mounting screws |
| Withstands 2000 VAC dielectric voltage |
| 14 to 10 AWG solid or stranded copper conductor terminal accommodation |
| Sequenced contacts assure protection |
| Catalog number, ratings and certifications molded-in face |
| 1 piece design power and ground contacts |
| 3-wires grounding |
| Indoor dry unless protected by additional means |
