Hubbell Wiring Device-Kellems

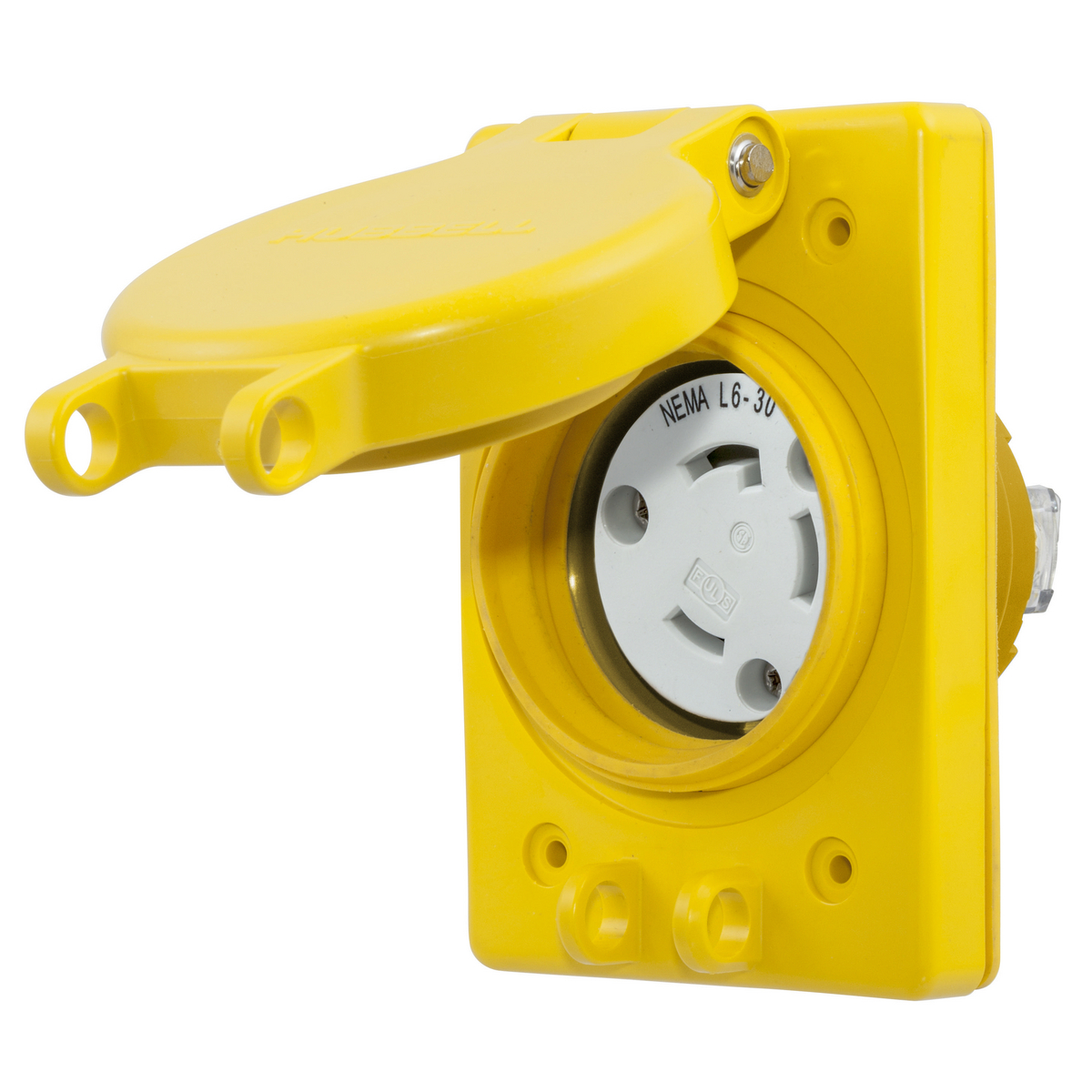

Hubbell Wiring Device-Kellems HBL69W48 WATERTIGHT RECEP ASSY
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HBL69W48 WATERTIGHT RECEP ASSY
SKU1052117
MFGR #HBL69W48
$/ea
Hubbell Wiring Device Kellems, Watertight Series, Locking Receptacle,30A 250V, 2-Pole 3-Wire Grounding, NEMA L6-30R, Yellow
Hubbell Wiring Device Kellems, Watertight Series, Locking Receptacle,30A 250V, 2-Pole 3-Wire Grounding, NEMA L6-30R, Yellow
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL69W48 Connection Screw Terminals Country of Origin US Currency USD Dimensions 4.56 in H x 3.1 in W x 2.92 in H Enclosure IP65/IP66/IP67/IP69K Environmental Conditions Watertight EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.6500 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.70 in Height [Metric] 9.3980 cm Horsepower 2 hp Length 5.20 in Length [Metric] 13.2080 cm Material Elastomer/Composite Mounting Screw Mount NEMA Rating L6-30R Number Of Poles 2 Phase 1 Returnable Y Size 4.56 in x 3.10 in x 2.92 in Standard IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards Sub Brand Twist-Lock Devices Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358543325 UPC 12 783585433257 Wattage 7,500 W Width 3.30 in Width [Metric] 8.3820 cm Wire Size #18 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 3 Voltage Rating 250 V Industrial/Commercial Watertight Impact resistant PBT lid, cover plate and receptacle body Thermoplastic elastomer seal Stainless steel hardware and corrosion resistant connection points
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL69W48 |
| Connection | Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.56 in H x 3.1 in W x 2.92 in H |
| Enclosure | IP65/IP66/IP67/IP69K |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.6500 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.70 in |
| Height [Metric] | 9.3980 cm |
| Horsepower | 2 hp |
| Length | 5.20 in |
| Length [Metric] | 13.2080 cm |
| Material | Elastomer/Composite |
| Mounting | Screw Mount |
| NEMA Rating | L6-30R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 4.56 in x 3.10 in x 2.92 in |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358543325 |
| UPC 12 | 783585433257 |
| Wattage | 7,500 W |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | #18 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Industrial/Commercial |
| Watertight |
| Impact resistant PBT lid, cover plate and receptacle body |
| Thermoplastic elastomer seal |
| Stainless steel hardware and corrosion resistant connection points |
