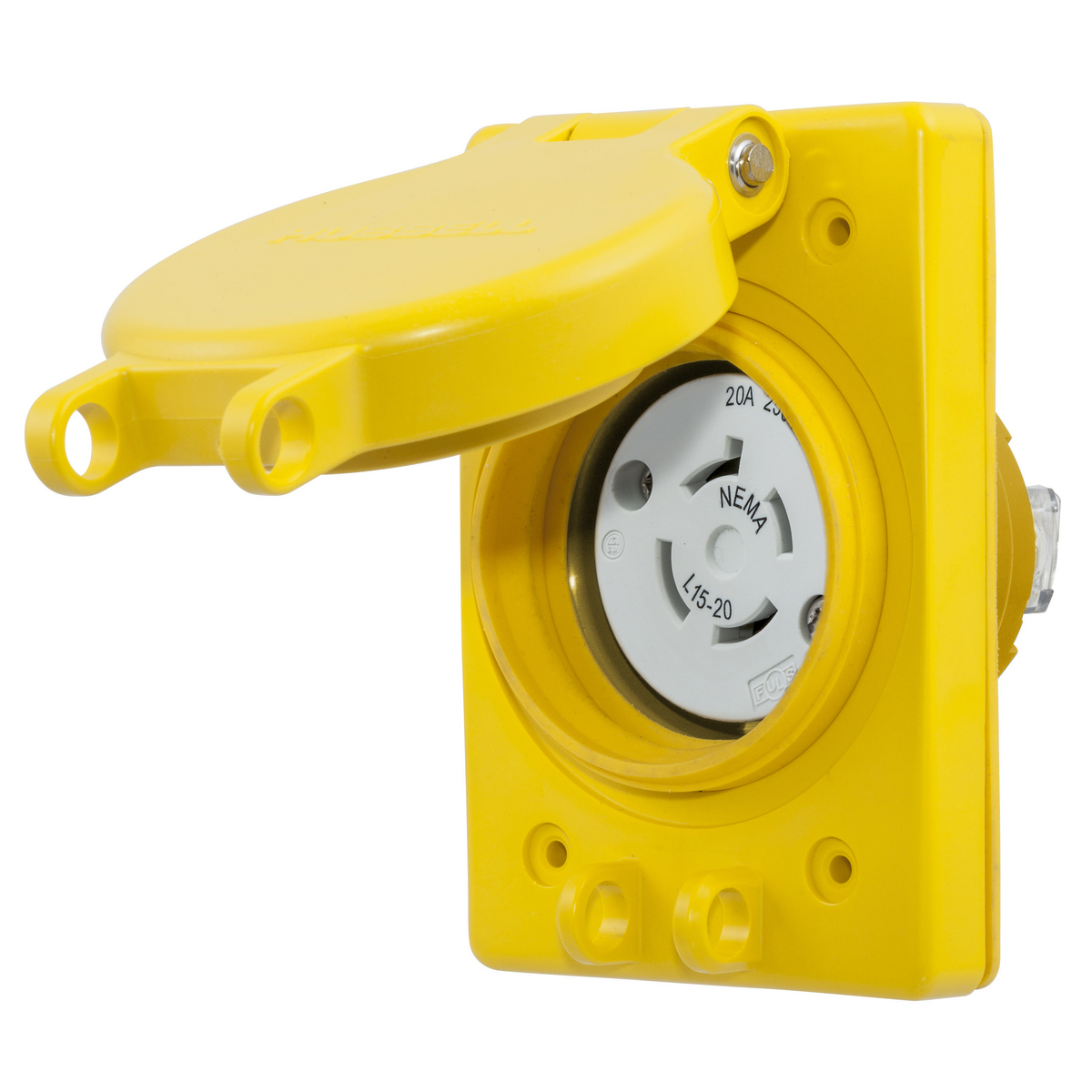

Hubbell Wiring Device-Kellems HBL67W75 WATERTIGHT RECEP ASSY
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HBL67W75 WATERTIGHT RECEP ASSY
SKU976273
MFGR #HBL67W75
$/ea
Hubbell Wiring Device Kellems, Watertight Series, Locking Receptacle,20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Yellow
Hubbell Wiring Device Kellems, Watertight Series, Locking Receptacle,20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Yellow
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL67W75 Connection Screw Terminals Country of Origin US Currency USD Dimensions 4.56 in H x 3.1 in W x 2.92 in H Enclosure IP65/IP66/IP67/IP69K Environmental Conditions Watertight EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.6500 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.40 in Height [Metric] 8.6360 cm Horsepower 3 hp Length 5.30 in Length [Metric] 13.4620 cm Material Elastomer/Composite Mounting Screw Mount NEMA Rating L15-20R Number Of Poles 3 Phase 3 Returnable Y Size 4.56 in x 3.10 in x 2.92 in Standard IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42NEMA WD1/WD6ANSI Specified Sub Brand Twist-Lock Devices Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358543318 UPC 12 783585433189 Wattage 2,500 W Width 3.40 in Width [Metric] 8.6360 cm Wire Size #18 AWG to #8 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Yellow Number of Wires 4 Voltage Rating 3 Phase 250 VAC Industrial/Commercial Watertight Impact resistant PBT lid, cover plate and receptacle body Thermoplastic elastomer seal Stainless steel hardware and corrosion resistant connection points
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL67W75 |
| Connection | Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.56 in H x 3.1 in W x 2.92 in H |
| Enclosure | IP65/IP66/IP67/IP69K |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.6500 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Horsepower | 3 hp |
| Length | 5.30 in |
| Length [Metric] | 13.4620 cm |
| Material | Elastomer/Composite |
| Mounting | Screw Mount |
| NEMA Rating | L15-20R |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Size | 4.56 in x 3.10 in x 2.92 in |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42NEMA WD1/WD6ANSI Specified |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358543318 |
| UPC 12 | 783585433189 |
| Wattage | 2,500 W |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Wire Size | #18 AWG to #8 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Wires | 4 |
| Voltage Rating | 3 Phase 250 VAC |
| Industrial/Commercial |
| Watertight |
| Impact resistant PBT lid, cover plate and receptacle body |
| Thermoplastic elastomer seal |
| Stainless steel hardware and corrosion resistant connection points |
