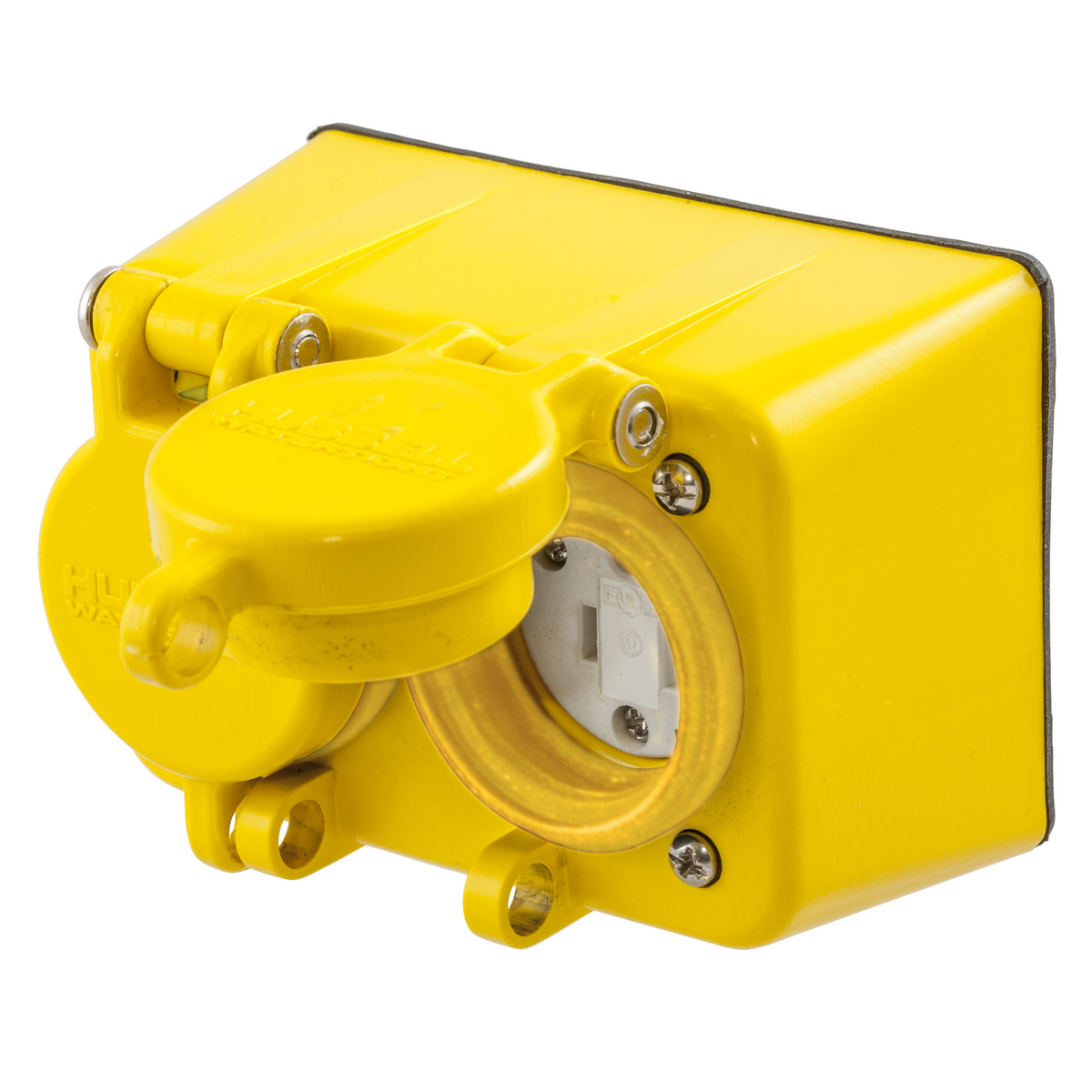

Hubbell Wiring Device-Kellems HBL60W47D Duplex Grounding Standard Watertight Straight Blade Receptacle With Lift Cover, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HBL60W47D Duplex Grounding Standard Watertight Straight Blade Receptacle With Lift Cover, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU896621
MFGR #HBL60W47D
Your Cost: $165.83/ea
Wiring Device-Kellems Straight Blade Receptacle, Duplex Grounding Standard Watertight, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, -40 to 60 deg C, Screw Terminal, Composite, Yellow, 3.1 in H x 4.56 in W x 2.71 in D
Wiring Device-Kellems Straight Blade Receptacle, Duplex Grounding Standard Watertight, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, NEMA 4/4X/12/6/6P Enclosure, -40 to 60 deg C, Screw Terminal, Composite, Yellow, 3.1 in H x 4.56 in W x 2.71 in D
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL60W47D Connection Terminal Screws Country of Origin US Currency USD Dimensions 3.1 in H x 4.56 in W x 2.71 in D Enclosure NEMA 4/4X/12/6/6P Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 3.20 in Height [Metric] 8.1280 cm Horsepower 1/2 hp Length 5.00 in Length [Metric] 12.7000 cm Material Composite Mounting Mounting Screws NEMA Rating 5-15R Number Of Poles 2 Phase 1 Returnable Y Size Standard Sized Product Standard UL498 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedCSA C22.2 No. 42NEMA WD1/WD6UL 498 Sub Brand Straight Blade Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358552870 UPC 12 783585528700 Wattage 1,875 W Width 5.10 in Width [Metric] 12.9540 cm Wire Size #14 AWG to #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Yellow Number of Wires 3 Voltage Rating 125 V Industrial/Commercial Standard Product Impact resistant PBT lid, cover plate and receptacle body Thermoplastic elastomer seal Stainless steel hardware and corrosion resistant connection points 2500 VAC dielectric voltage 30 deg C maximum per UL498 at rated current temperature rise All exposed materials are UV stabilized
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL60W47D |
| Connection | Terminal Screws |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.1 in H x 4.56 in W x 2.71 in D |
| Enclosure | NEMA 4/4X/12/6/6P |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 3.20 in |
| Height [Metric] | 8.1280 cm |
| Horsepower | 1/2 hp |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Material | Composite |
| Mounting | Mounting Screws |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | Standard Sized Product |
| Standard | UL498 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedCSA C22.2 No. 42NEMA WD1/WD6UL 498 |
| Sub Brand | Straight Blade |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358552870 |
| UPC 12 | 783585528700 |
| Wattage | 1,875 W |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Wire Size | #14 AWG to #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial/Commercial |
| Standard Product |
| Impact resistant PBT lid, cover plate and receptacle body |
| Thermoplastic elastomer seal |
| Stainless steel hardware and corrosion resistant connection points |
| 2500 VAC dielectric voltage |
| 30 deg C maximum per UL498 at rated current temperature rise |
| All exposed materials are UV stabilized |
