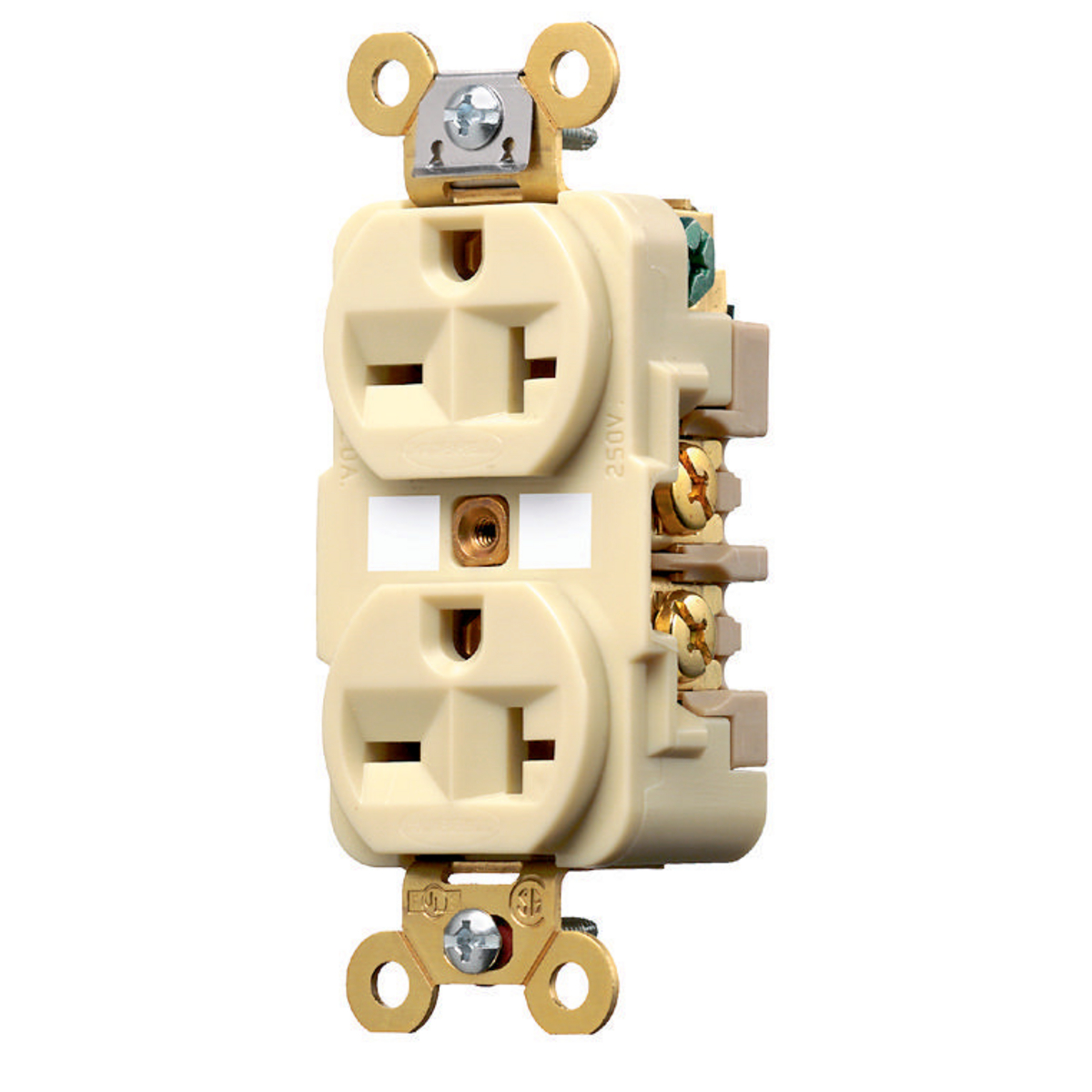

Hubbell Wiring Device-Kellems HBL5462I Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HBL5462I Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU27100
MFGR #HBL5462I
Your Cost: $48.68/ea
Wiring Device-Kellems Straight Blade Receptacle, Duplex Extra Heavy Duty Self-Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA 6-20R, Industrial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, Ivory, 3.28 in H x 1.65 in W x 1.19 in D
Wiring Device-Kellems Straight Blade Receptacle, Duplex Extra Heavy Duty Self-Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA 6-20R, Industrial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, Ivory, 3.28 in H x 1.65 in W x 1.19 in D
Application Extra Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number HBL5462I Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.65 in W x 1.19 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 2 hp Length 4.10 in Length [Metric] 10.4140 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 6-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.65 in x 1.19 in Standard Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards UL 498, File No. E2186 Listed, UL 94-V-2, UL 94 V-0 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Standard Duplex UNSPSC 39121406 UPC 11 78358543552 UPC 12 783585435527 Wattage 5,000 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #14 AWG to #10 AWG Stock Status NORMALLY STOCKED Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 250 V Extra Heavy Duty Self Grounding Withstands 2000 VAC dielectric voltage Certified for current interrupting at full rated current 1-piece brass integral ground strap Deep nylon body design delivers increased impact resistance Finder groove face style 14 to 10 AWG solid or stranded copper conductor terminal accommodation #8-32 brass multiple drive (green) ground screw Nylon top material 0.037 in brass power contact 0.05 in brass mounting strap Stainless steel auto ground clip Steel zinc plated mounting screw Traditional face Made of reinforced PET Traditional duplex receptacle Indoor dry unless protected by additional means
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5462I |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.65 in W x 1.19 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 2 hp |
| Length | 4.10 in |
| Length [Metric] | 10.4140 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 6-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.65 in x 1.19 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | UL 498, File No. E2186 Listed, UL 94-V-2, UL 94 V-0 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358543552 |
| UPC 12 | 783585435527 |
| Wattage | 5,000 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #14 AWG to #10 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Extra Heavy Duty |
| Self Grounding |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| 1-piece brass integral ground strap |
| Deep nylon body design delivers increased impact resistance |
| Finder groove face style |
| 14 to 10 AWG solid or stranded copper conductor terminal accommodation |
| #8-32 brass multiple drive (green) ground screw |
| Nylon top material |
| 0.037 in brass power contact |
| 0.05 in brass mounting strap |
| Stainless steel auto ground clip |
| Steel zinc plated mounting screw |
| Traditional face |
| Made of reinforced PET |
| Traditional duplex receptacle |
| Indoor dry unless protected by additional means |
