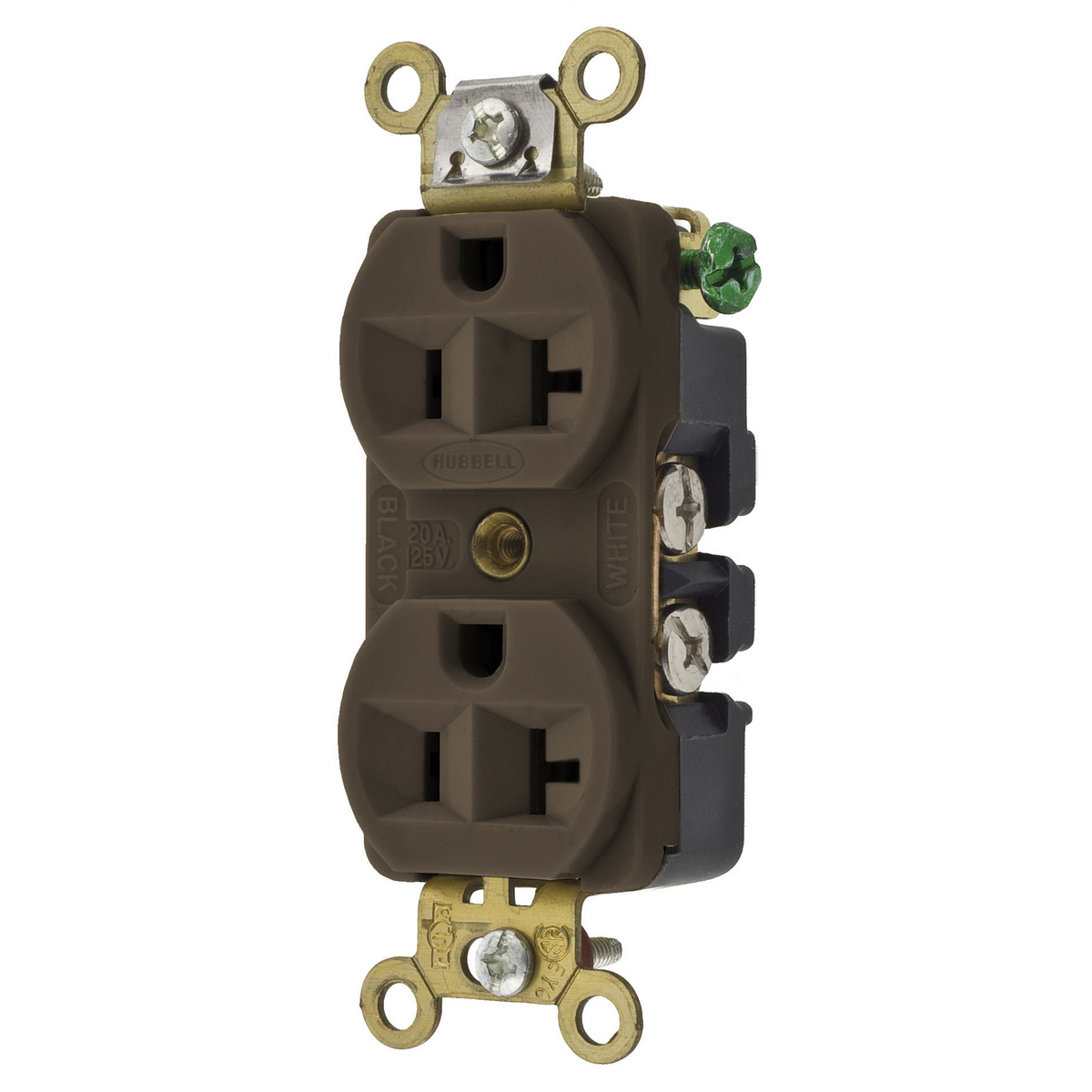

Hubbell Wiring Device-Kellems HBL5352 Industrial Compact Heavy Duty Grounding Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Straight Blade Receptacles
27088
MFG #: HBL5352
Hubbell Wiring Device-Kellems
28.69000
/ ea
Wiring Device-Kellems Duplex Receptacle, Compact Heavy Duty Grounding, Series: Industrial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Reinforced Polyethylene Terephthalate, Brown, 3.28 in H x 1.33 in W x 0.8 in D
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_3AVMOS8LWP6GY1KI.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD2615_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537664864036.pdf(Install Instructions URL)
- Line Drawing URL - 11456_ML16I9KB4CY0TP3X.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL5352_DRAWINGS_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_CEZL20FIS65HVKN4.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL5352_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537665126686.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL5352_M6326_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Extra Heavy Duty Compact |
| Compact design and Self Grounding |
| Withstands 2000 VAC dielectric voltage |
| Certified for current interrupting at full rated current |
| Slender compact design |
| Brass mounting strap |
| Triple wipe contacts |
| 14 to 10 AWG solid or stranded copper conductor terminal accommodation |
| #8-32 brass/nickel plated for neutral terminal screw |
| #8-32 brass multiple drive (green) ground screw |
| Nylon top material |
| 0.037 in phosphor bronze power contacts |
| 0.05 in brass mounting strap |
| Stainless steel auto ground clip |
| Steel zinc plated mounting screw |
| Traditional face |
| Made of reinforced PET |
| Traditional duplex receptacle |
| Indoor dry unless protected by additional means |
