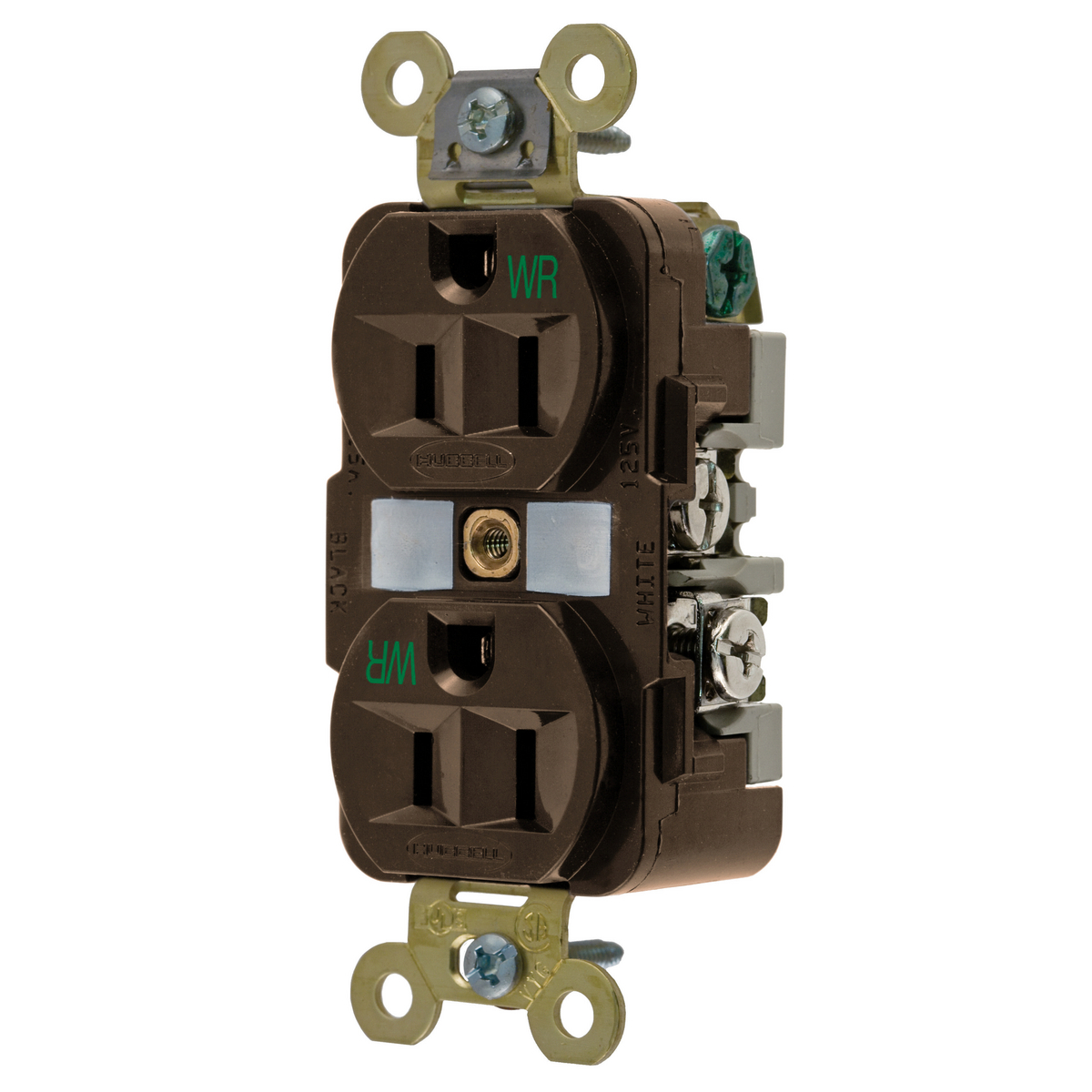

Hubbell Wiring Device-Kellems HBL5262WR Grounding Extra Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Straight Blade Receptacles
630563
MFG #: HBL5262WR
Hubbell Wiring Device-Kellems
34.82000
/ ea
Wiring Device-Kellems Straight Blade Duplex Receptacle, Grounding Extra Heavy Duty, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Specification Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Brown, 1.65 in W x 1.19 in D
- Catalog URL - Wiring_Device_Kellems_HBL53CM62_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_3AVMOS8LWP6GY1KI.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1487178505933.pdf(Install Instructions URL)
- Line Drawing URL - 11456_4NTC1FXOU6H5ZSW2.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_X4AGRNO160HEPBSC.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL5262WR_M10811_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Extra Heavy Duty Specification Grade |
| Weather Resistant- Self Grounding |
| Weather resistance complies with national electrical code requirements |
| Finder groove face style |
| One piece brass integral ground strap |
| Deep body design with circuit inside diameter face |
| Traditional face shape |
| NO 10 to 32 silicon bronze terminal screw and ground screw |
| Nylon top and reinforced PET base |
| 0.037 in brass power contact |
| 0.05 in brass mounting strap |
| Stainless steel auto ground clip and brass clamp |
| Steel, zinc plated mounting screws |
| Withstand 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL498 |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device product identification |
| UL 94V-2 top, UL 94V-0 base flammability |
| Weather resistant |
