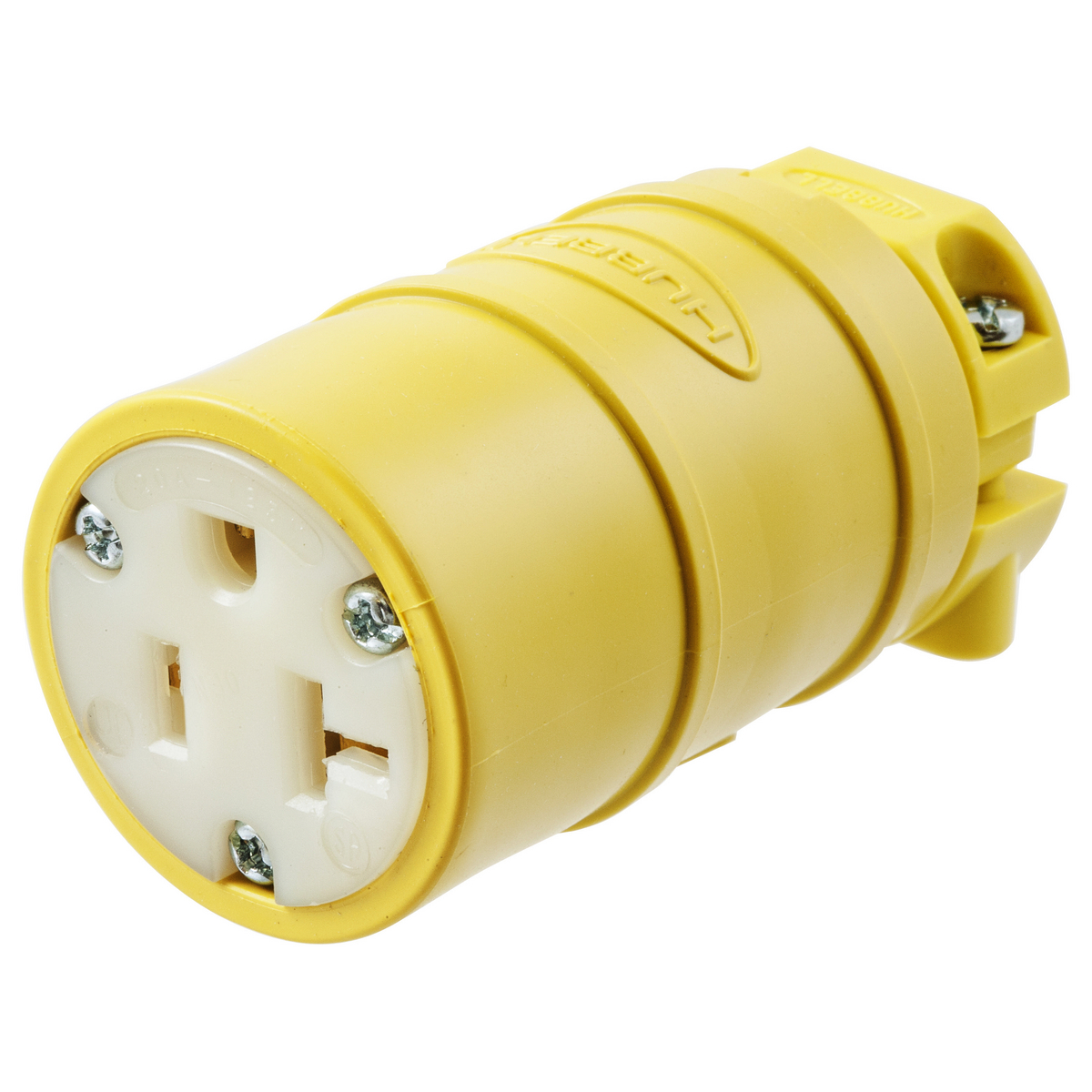

Hubbell Wiring Device-Kellems HBL1533 Elastogrip® Dust Tight Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Straight Blade Connectors
91441
MFG #: HBL1533
Hubbell Wiring Device-Kellems
32.38000
/ ea
Wiring Device-Kellems Straight Blade Connector, Dust Tight, Series: Elastogrip®, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Elastogrip Grade, IP20 Enclosure, 0.3 to 0.655 in Cord Dia, -40 to 75 deg C, Threaded Terminal, PVC, Yellow, 1.61 in Dia x 3 in L
- Catalog URL - Wiring_Device_Kellems_HBL1533_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_PX5R1QVB2YDWH9EI.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666659566.pdf(Install Instructions URL)
- Line Drawing URL - 11456_94GJQBELYT75NFSV.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_P8XKZNQGVM2I6AB9.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL1533_M6402_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial |
| Dust-Tight |
| Dust and moisture seal around cord |
| Thermoplastic elastomer housing |
| Cord mounted |
| Yellow nylon cord clamp |
| 0.06 in brass contact blades |
| 0.04 in copper alloy ground contact blade and power contacts |
| #8-32 brass, multiple drive terminal screw |
| #8-32 brass, multiple drive green ground screw |
| Natural nylon contact holder |
| Withstands 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL498 (brass, white, green) |
| 14 to 10 AWG copper stranded or solid conductor only |
| Ratings are a permanent part of the device |
| UL 94 HB or better flammability |
| Nickel plated steel terminal clamp |
| Plated steel assembly screws |
