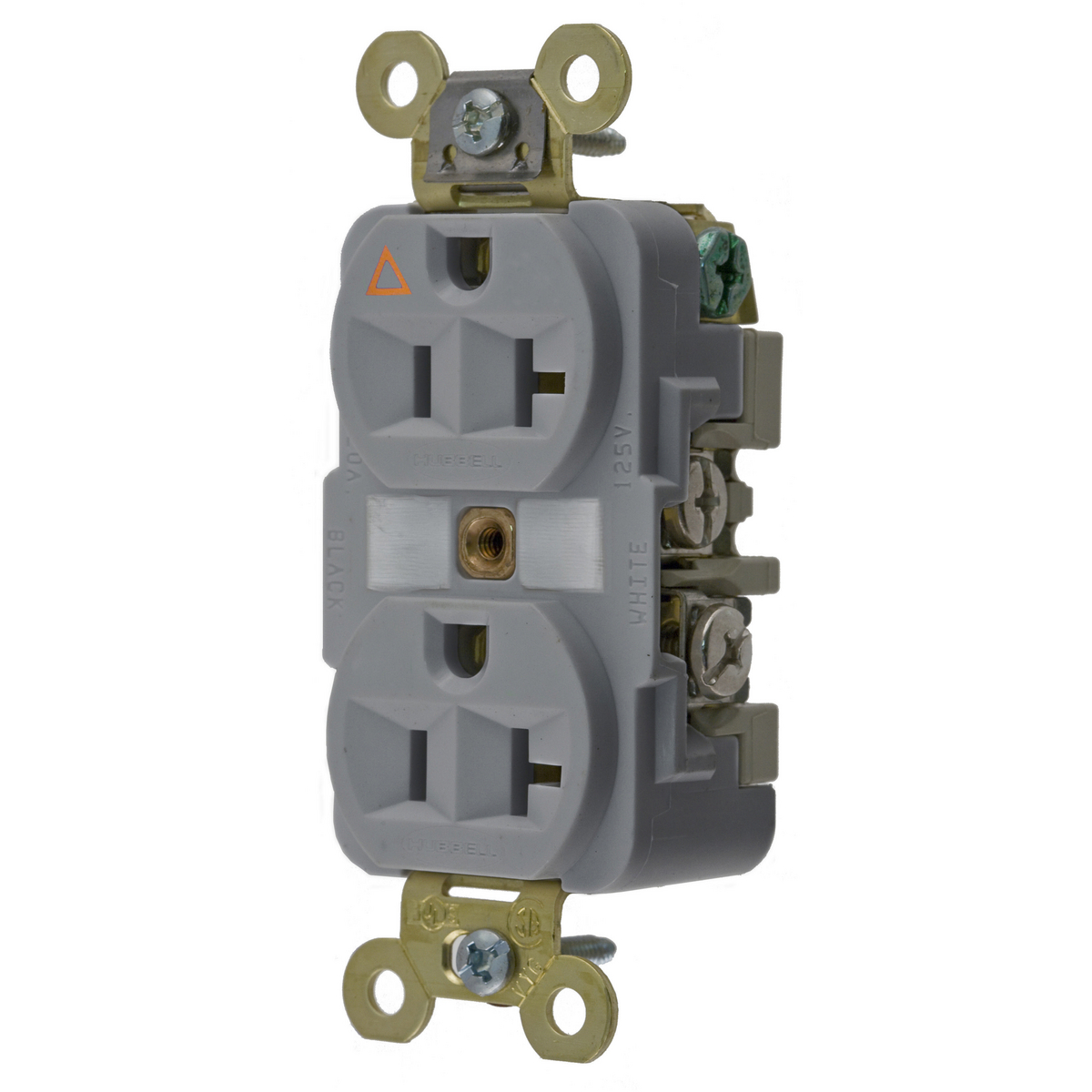

Hubbell Wiring Device-Kellems HBL® SpikeShield® IG5362GY Extra Heavy Duty Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HBL® SpikeShield® IG5362GY Extra Heavy Duty Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU27323
MFGR #IG5362GY
$/ea
Wiring Device-Kellems HBL® SpikeShield® Straight Blade Receptacle, Extra Heavy Duty Duplex, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Gray, 3.281 in H x 1.328 in W x 1.047 in D
Wiring Device-Kellems HBL® SpikeShield® Straight Blade Receptacle, Extra Heavy Duty Duplex, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Gray, 3.281 in H x 1.328 in W x 1.047 in D
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number IG5362GY Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in L x 1.33 in W x 1.05 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable N Size 3.28 in x 1.33 in x 1.05 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2 No. 42/285Federal Specification W-C-596NEMA WD1/WD5 WD6UL94 V-0/UL94 V-2 Flammability Rating Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Standard Duplex UNSPSC 39121406 UPC 11 78358587687 UPC 12 783585876870 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Specification Grade Isolated Ground 1-piece brass ground strap Exclusive bypass contact design for greater contact force and reduced heat buildup Barbed assembly arms reduce possibility of face/base separation Deep face design Finder groove face Slender compact design Triangle marking on face indicates isolated ground Brass terminal screws 0.05 in galvanized steel mounting strap Stainless steel automatic self-grounding staple Zinc plated steel mounting screw Withstands 2000 VAC minimum dielectric voltage Certified for current interrupting at full rated current Terminals identified in accordance with UL498 (brass, white, green) 12 to 10 AWG copper stranded or solid conductor only terminal accommodation Ratings are a permanent part of the device
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IG5362GY |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in L x 1.33 in W x 1.05 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 3.28 in x 1.33 in x 1.05 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2 No. 42/285Federal Specification W-C-596NEMA WD1/WD5 WD6UL94 V-0/UL94 V-2 Flammability Rating |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358587687 |
| UPC 12 | 783585876870 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Specification Grade |
| Isolated Ground |
| 1-piece brass ground strap |
| Exclusive bypass contact design for greater contact force and reduced heat buildup |
| Barbed assembly arms reduce possibility of face/base separation |
| Deep face design |
| Finder groove face |
| Slender compact design |
| Triangle marking on face indicates isolated ground |
| Brass terminal screws |
| 0.05 in galvanized steel mounting strap |
| Stainless steel automatic self-grounding staple |
| Zinc plated steel mounting screw |
| Withstands 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Terminals identified in accordance with UL498 (brass, white, green) |
| 12 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device |
