Hubbell Wiring Device-Kellems

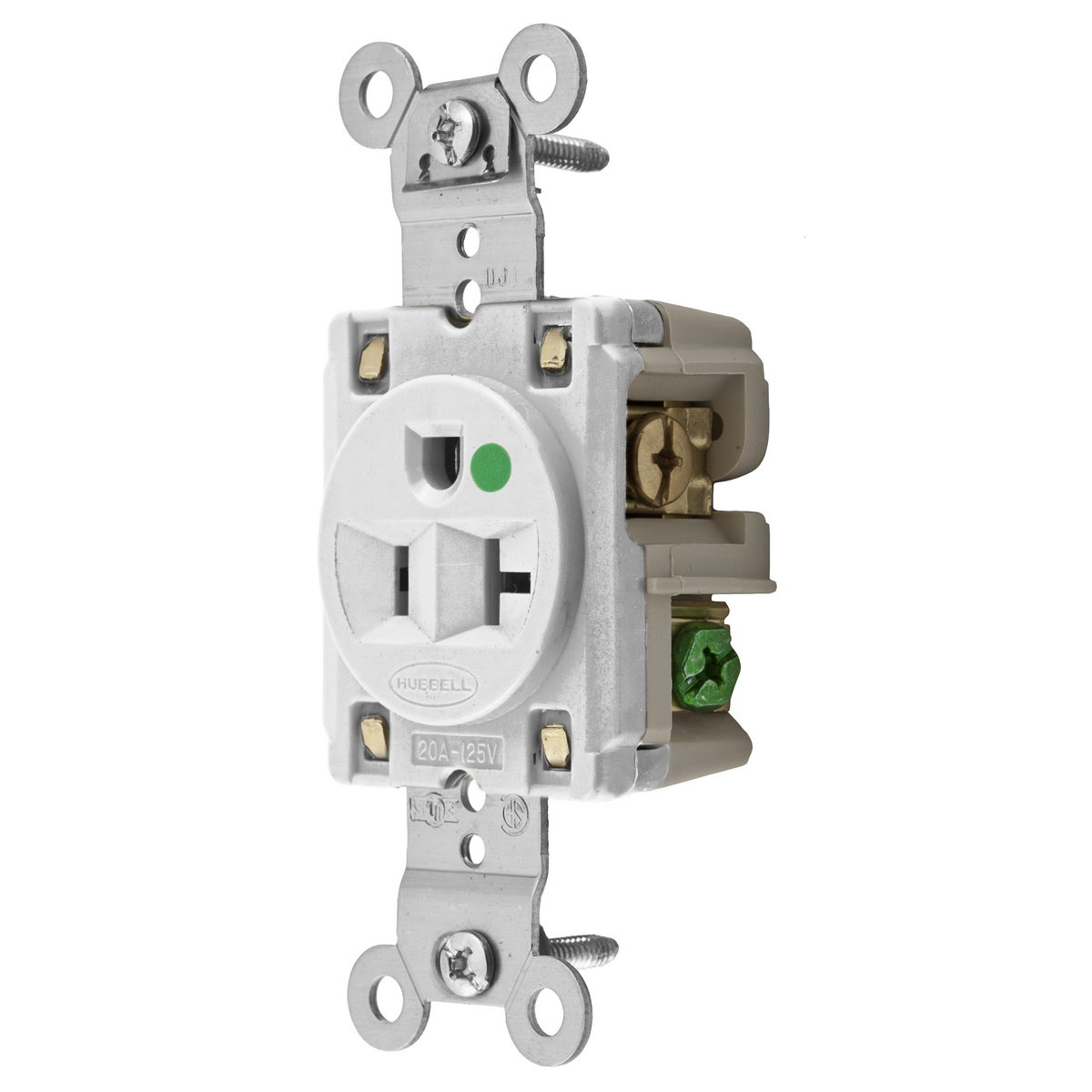

Hubbell Wiring Device-Kellems HBL® HBL8310W HBL8310 Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HBL® HBL8310W HBL8310 Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU91492
MFGR #HBL8310W
$/ea
To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.
To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.
Application Extra Heavy Duty Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL8310W Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.60 in Height [Metric] 4.0640 cm Length 4.10 in Length [Metric] 10.4140 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.63 in x 1.19 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards UL 498, UL File No. E2186, CSA 22.2 No. 42, CSA File No. 285, Federal Specification WC596, NEMA WD-6, UL 94 V2, UL 94 V0, UL 94-5 VA Sub Brand Straight Blade Devices Type Receptacle UNSPSC 39121406 UPC 11 78358501631 UPC 12 783585016313 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Hospital Grade Self Grounding HBL® extra heavy duty hospital grade receptacles 1-piece nickel plated brass integral ground strap Patented bypass contact design Nylon face and PBT base 0.037 in brass power contacts Nickel plated brass ground contact and clamp Brass mounting strap, stainless steel automatic self-grounding clip and mounting screws Certified for current interrupting at full rated current Withstands 2000 VAC minimum dielectric voltage 12 to 10 AWG stranded or solid copper wire only Terminals identified in accordance with UL 498 and CSA
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL8310W |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.60 in |
| Height [Metric] | 4.0640 cm |
| Length | 4.10 in |
| Length [Metric] | 10.4140 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.63 in x 1.19 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | UL 498, UL File No. E2186, CSA 22.2 No. 42, CSA File No. 285, Federal Specification WC596, NEMA WD-6, UL 94 V2, UL 94 V0, UL 94-5 VA |
| Sub Brand | Straight Blade Devices |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358501631 |
| UPC 12 | 783585016313 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Hospital Grade |
| Self Grounding |
| HBL® extra heavy duty hospital grade receptacles |
| 1-piece nickel plated brass integral ground strap |
| Patented bypass contact design |
| Nylon face and PBT base |
| 0.037 in brass power contacts |
| Nickel plated brass ground contact and clamp |
| Brass mounting strap, stainless steel automatic self-grounding clip and mounting screws |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 10 AWG stranded or solid copper wire only |
| Terminals identified in accordance with UL 498 and CSA |
