Hubbell Wiring Device-Kellems

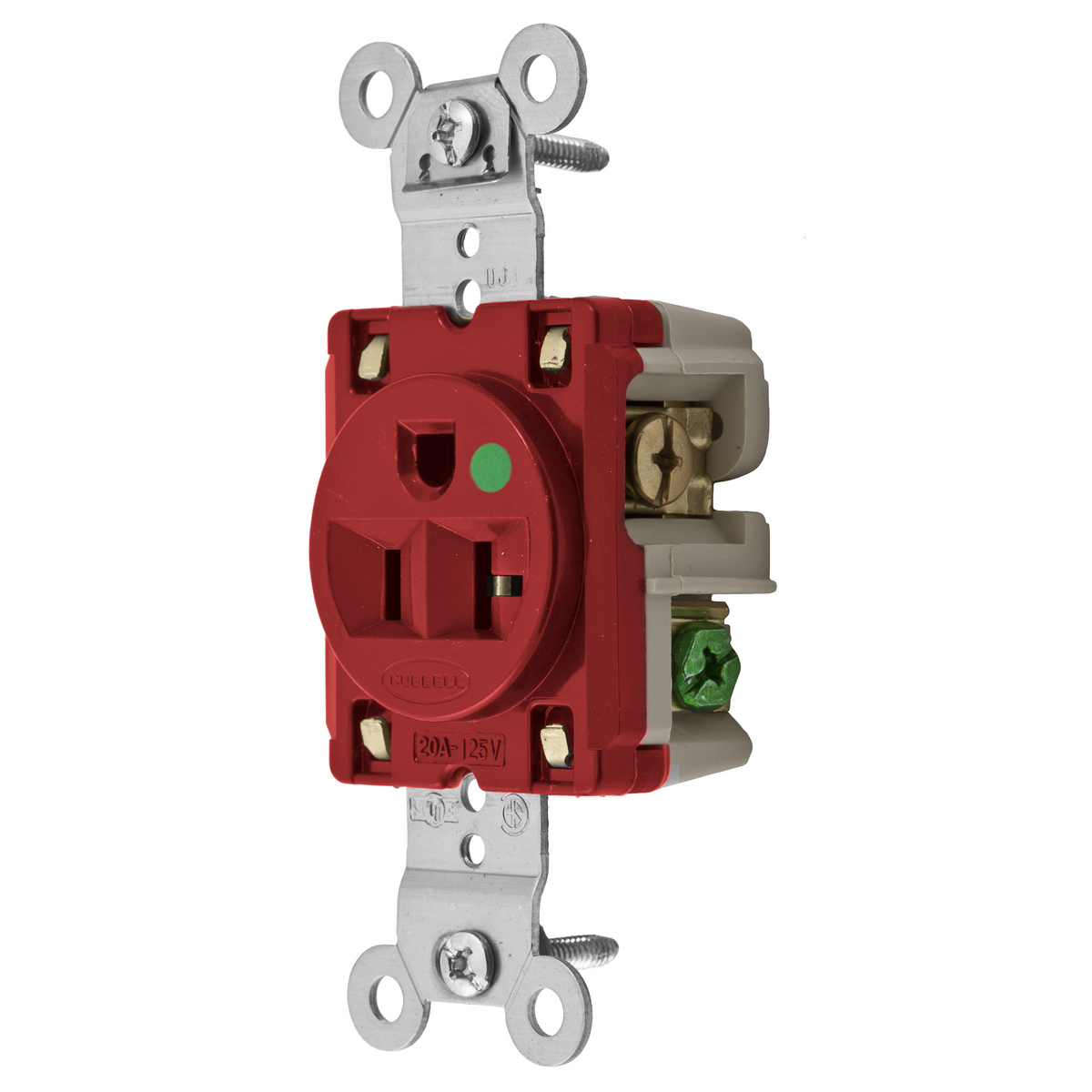

Hubbell Wiring Device-Kellems HBL® HBL8310R Extra Heavy Duty Self-Grounding Single Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HBL® HBL8310R Extra Heavy Duty Self-Grounding Single Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU91483
MFGR #HBL8310R
$/ea
To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.
To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.
Application Extra Heavy Duty Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL8310R Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.65 in W x 1.19 in D Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Hospital Gross Weight Per Pack 0.0820 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.63 in x 1.19 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42 File No. 285Federal Specification W-C-596NEMA WD1/WD5/WD6UL 498 File No. E2186 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Receptacle UNSPSC 39121406 UPC 11 78358501595 UPC 12 783585015958 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Red Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Hospital Grade Self Grounding Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties Providing contact stability, this high performance material will reduce heat buildup giving you long lasting performance Deep body design increases impact and chemical resistance Back wired ground terminal allows faster, easier installation One piece nickel plated brass integral ground strap for greater corrosion resistance Patented ground contact provides redundant grounding I.D. marking surface provides quick, sure circuit identification All hospital grade devices are marked with the green dot symbol, required by UL External wiring clamps allow for visual inspection of the terminals Unique strand containment feature on the terminal ''bundles'' the wire, ensuring 100% clamping of wire strands and reducing heat from the termination Exclusive bypass contacts are made of nickel plated brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power Barbed assembly arms reduce possibility of face/base separation Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL8310R |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.65 in W x 1.19 in D |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Hospital |
| Gross Weight Per Pack | 0.0820 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.63 in x 1.19 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42 File No. 285Federal Specification W-C-596NEMA WD1/WD5/WD6UL 498 File No. E2186 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358501595 |
| UPC 12 | 783585015958 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Red |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Hospital Grade |
| Self Grounding |
| Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties |
| Providing contact stability, this high performance material will reduce heat buildup giving you long lasting performance |
| Deep body design increases impact and chemical resistance |
| Back wired ground terminal allows faster, easier installation |
| One piece nickel plated brass integral ground strap for greater corrosion resistance |
| Patented ground contact provides redundant grounding |
| I.D. marking surface provides quick, sure circuit identification |
| All hospital grade devices are marked with the green dot symbol, required by UL |
| External wiring clamps allow for visual inspection of the terminals |
| Unique strand containment feature on the terminal ''bundles'' the wire, ensuring 100% clamping of wire strands and reducing heat from the termination |
| Exclusive bypass contacts are made of nickel plated brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power |
| Barbed assembly arms reduce possibility of face/base separation |
| Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion |
