Hubbell Wiring Device-Kellems

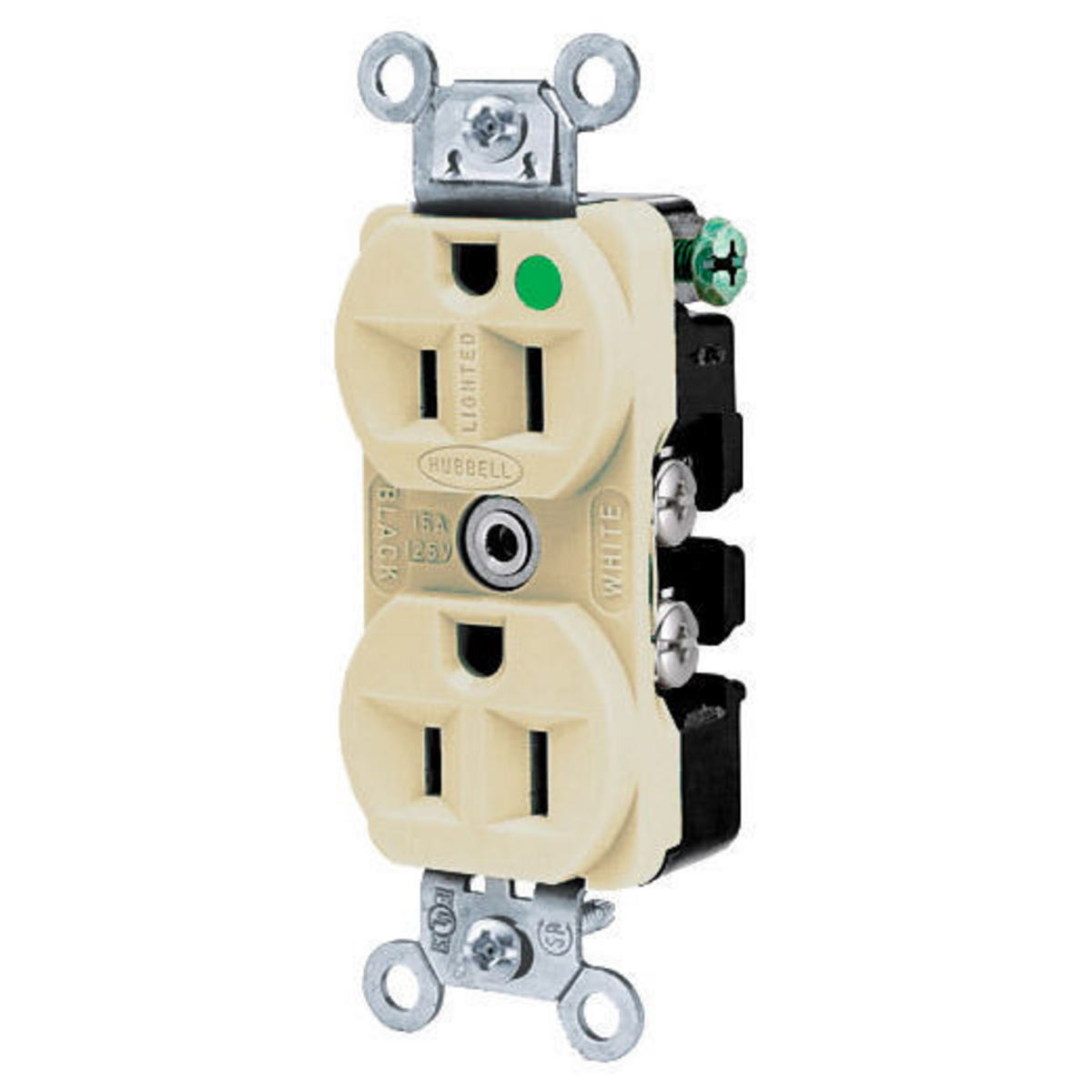

Hubbell Wiring Device-Kellems HBL® HBL8200ILI HBL8200 Duplex Illuminated Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems HBL® HBL8200ILI HBL8200 Duplex Illuminated Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
SKU442594
MFGR #HBL8200ILI
$/ea
To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.
To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell receptacles have exclusive design features that set them apart from the competition.
Application Extra Heavy Duty Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL8200ILI Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in L x 1.33 in W x 1.05 in H Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator N Grade Hospital Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.54 in Height [Metric] 3.9116 cm Horsepower 1/2 hp Length 4.16 in Length [Metric] 10.5664 cm Material Polycarbonate Mounting Screw Mount NEMA Rating 5-15R Number Of Poles 2 Phase 1 Returnable N Size 3.28 in x 1.33 in x 1.05 in Standard CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantUL 498 File No. E2186CSA C22.2 No. 42 File 285Federal Specification W-C-596UL94 V-0 Flammability RatingNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Receptacle UNSPSC 39121406 UPC 11 78358501645 UPC 12 783585016450 Wattage 1,875 W Width 1.79 in Width [Metric] 4.5466 cm Wire Size #14 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Ivory Number of Wires 3 Voltage Rating 125 V Extra Heavy Duty Hospital Grade Illuminated Face Slender compact design Triple wipe contacts Impact resistant finder groove face Entire face illuminated by two LEDs Entire face illuminated by (2) LED Polycarbonate face abd PBT base 0.036 in nickel plated brass by-pass power contacts and 0.05 in nickel plated brass automatic self-grounding clip Brass ground contacts, terminal screws and mounting strap, nickel plated brass clamp, plated brass terminal screws, stainless steel mounting screws Certified for current interrupting at full rated current Withstands 2000 VAC minimum dielectric voltage 12 to 10 AWG stranded or solid copper wire only Terminals identified in accordance with UL 498 and CSA
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL8200ILI |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in L x 1.33 in W x 1.05 in H |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | N |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.54 in |
| Height [Metric] | 3.9116 cm |
| Horsepower | 1/2 hp |
| Length | 4.16 in |
| Length [Metric] | 10.5664 cm |
| Material | Polycarbonate |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 3.28 in x 1.33 in x 1.05 in |
| Standard | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantUL 498 File No. E2186CSA C22.2 No. 42 File 285Federal Specification W-C-596UL94 V-0 Flammability RatingNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358501645 |
| UPC 12 | 783585016450 |
| Wattage | 1,875 W |
| Width | 1.79 in |
| Width [Metric] | 4.5466 cm |
| Wire Size | #14 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Extra Heavy Duty Hospital Grade |
| Illuminated Face |
| Slender compact design |
| Triple wipe contacts |
| Impact resistant finder groove face |
| Entire face illuminated by two LEDs |
| Entire face illuminated by (2) LED |
| Polycarbonate face abd PBT base |
| 0.036 in nickel plated brass by-pass power contacts and 0.05 in nickel plated brass automatic self-grounding clip |
| Brass ground contacts, terminal screws and mounting strap, nickel plated brass clamp, plated brass terminal screws, stainless steel mounting screws |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 10 AWG stranded or solid copper wire only |
| Terminals identified in accordance with UL 498 and CSA |
