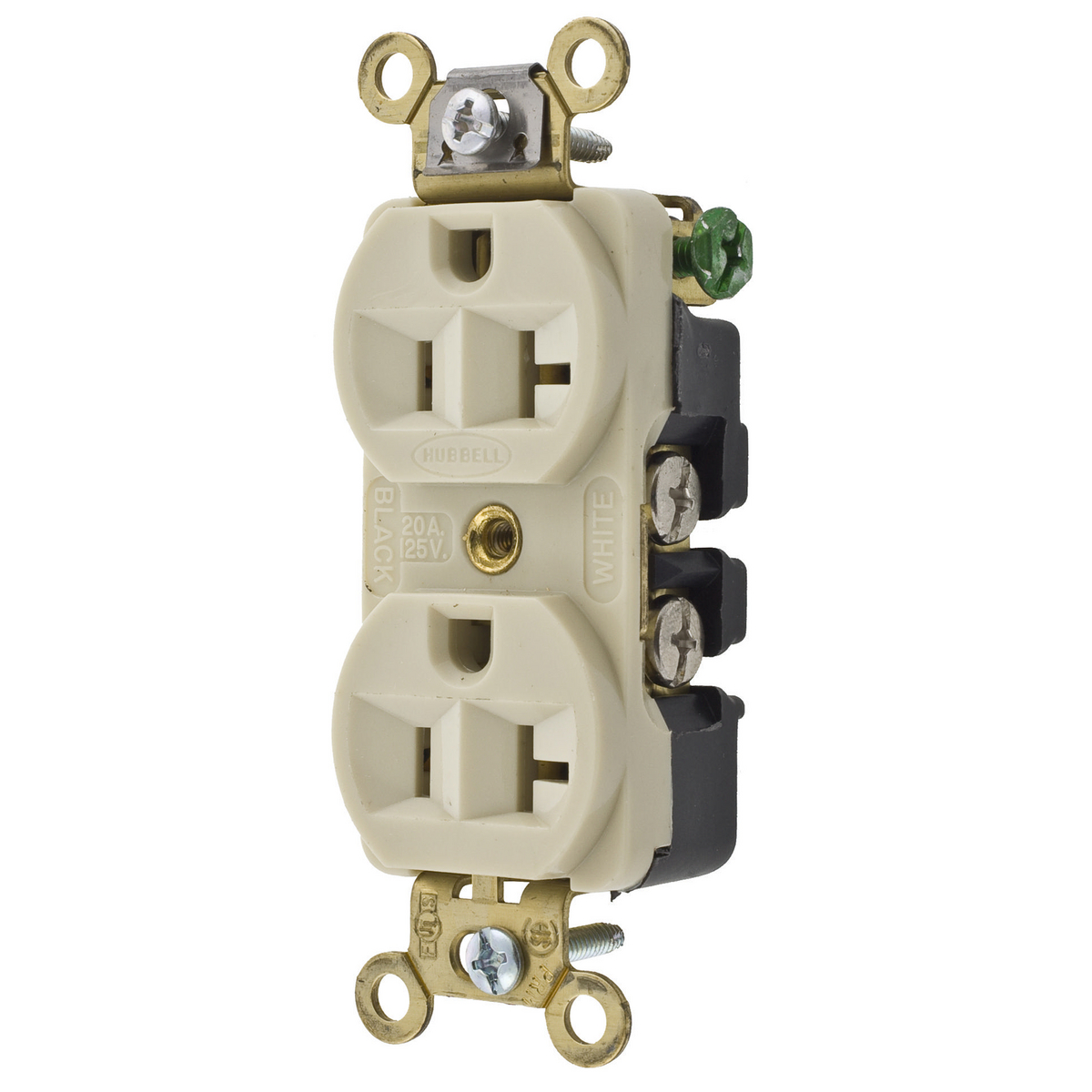

Hubbell Wiring Device-Kellems HBL® HBL5342I HBL5342 Compact Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HBL® HBL5342I HBL5342 Compact Duplex Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU27084
MFGR #HBL5342I
Your Cost: $21.76/ea
Wiring Device-Kellems HBL® Straight Blade Receptacle, Compact Duplex, Series: HBL5342, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 3.28 in H x 1.33 in W x 0.8 in D
Wiring Device-Kellems HBL® Straight Blade Receptacle, Compact Duplex, Series: HBL5342, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 3.28 in H x 1.33 in W x 0.8 in D
Application Extra Heavy Duty Compact ARRA Compliant C Buy American Compliant C Catalog Number HBL5342I Connection Side Wired Only Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in L x 1.33 in W x 1.05 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Industrial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.30 in Length [Metric] 10.9220 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.33 in x 1.05 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL 94-V-2UL 94-V-0 Flammability RatingNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Side Wired Type Standard Duplex UNSPSC 39121406 UPC 11 78358543480 UPC 12 783585434803 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 125 VAC Extra Heavy Duty Compact Compact design and Self Grounding Slender compact design Triple wipe contacts Brass mounting strap Brass contacts, mounting strap and terminal screw, plated brass wire clamp, stainless steel automatic self-grounding clip, steel zinc plated mounting screw Certified for current interrupting at full rated current Withstands 2000 VAC minimum dielectric voltage 12 to 10 AWG stranded or solid copper wire only Terminals identified in accordance with UL 498 and CSA Screw mounted
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Compact |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5342I |
| Connection | Side Wired Only |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in L x 1.33 in W x 1.05 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.33 in x 1.05 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL 94-V-2UL 94-V-0 Flammability RatingNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Side Wired |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358543480 |
| UPC 12 | 783585434803 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Extra Heavy Duty Compact |
| Compact design and Self Grounding |
| Slender compact design |
| Triple wipe contacts |
| Brass mounting strap |
| Brass contacts, mounting strap and terminal screw, plated brass wire clamp, stainless steel automatic self-grounding clip, steel zinc plated mounting screw |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 10 AWG stranded or solid copper wire only |
| Terminals identified in accordance with UL 498 and CSA |
| Screw mounted |
