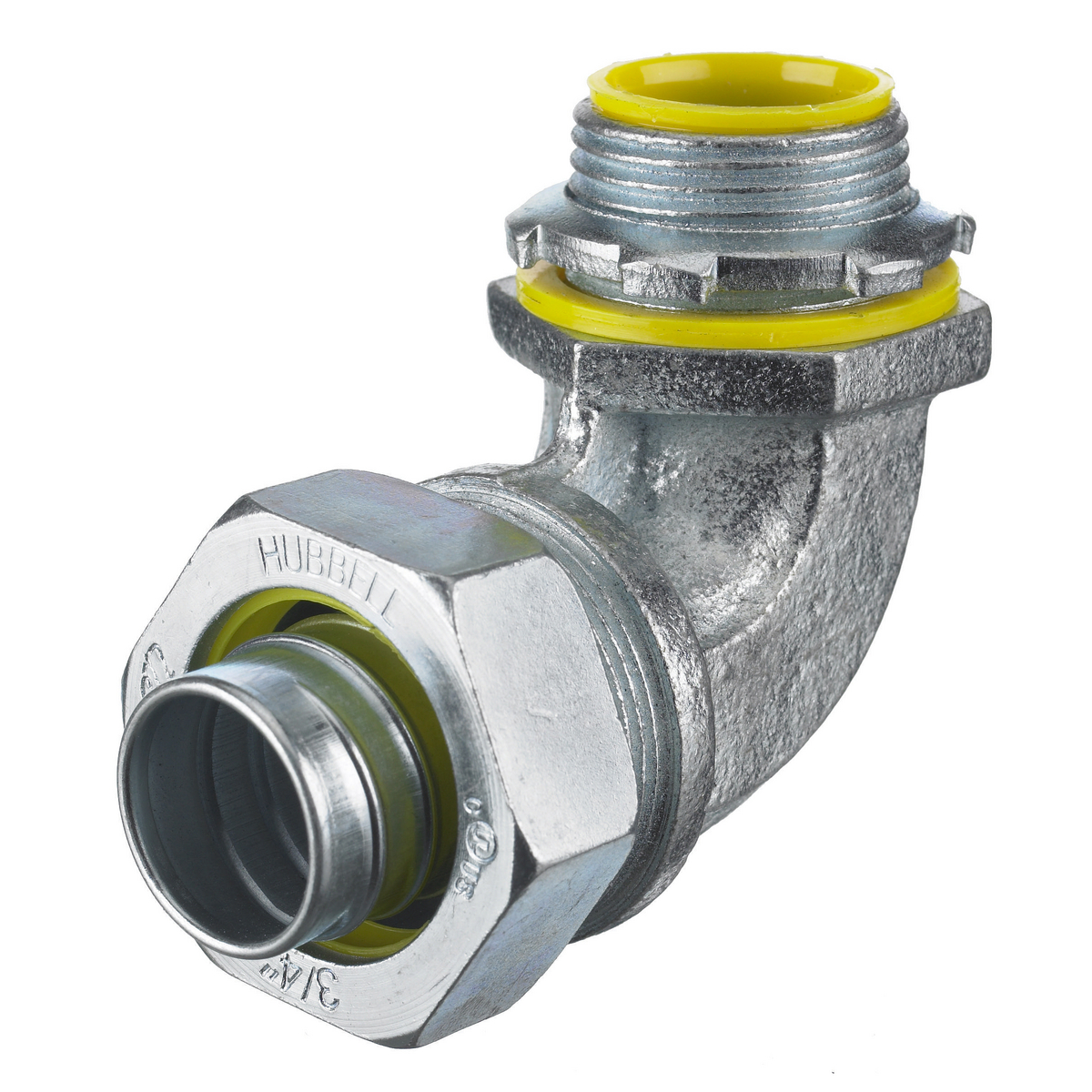

Hubbell Wiring Device-Kellems H07591 Insulated Male Liquidtight Conduit Connector With Locknut, 3/4 in Trade, 90 deg, Steel
Liquidtight Conduit Connectors
248113
MFG #: H07591
Hubbell Wiring Device-Kellems
9.25000
/ ea
Wiring Device-Kellems Liquidtight Conduit Connector, Insulated Male, 3/4 in Trade, 90 deg, 0.83 in Throat, For Use With: Liquidtight Metal Conduit and PolyTuff® I Non-Metallic Conduit, Steel, Metallic, 1.44 in L x 1.55 in W x 1.63 in H
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_XY8OPT543V1ACZB7.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_GLIP7HSBOZ0T8XR3.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_39BTR8V4KSOCHWJ1.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_H07591_M9878_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit |
| Insulated |
| Hexagonal, screw-machined steel thru 1 in and malleable iron on larger sizes |
| Nut compresses gland-ring onto conduit |
| Split, nylon, gland-ring compresses conduit onto ferrule |
| Non integral, reusable steel ferrule is easily installed, to seal conduit |
| Threaded one-piece steel body |
| Tapered, machined threads fasten securely and provide additional liquidtight sealing |
| Locknut has hardened steel tangs to grip securely |
| Nylon gasket provides liquidtight seal at hub |
| -51 to 538 deg C operating temperature |
| NPT male thread connection |
| 0.59 in L thread |
| Class i, div. 2 nec 501-4b, class ii, div. 1 nec 502-4a2, class ii, div. 2 nec 502-4b2, class iii, div. 1 nec 503-3a2, class iii, div. 2 nec 503-3b hazardous locations |
