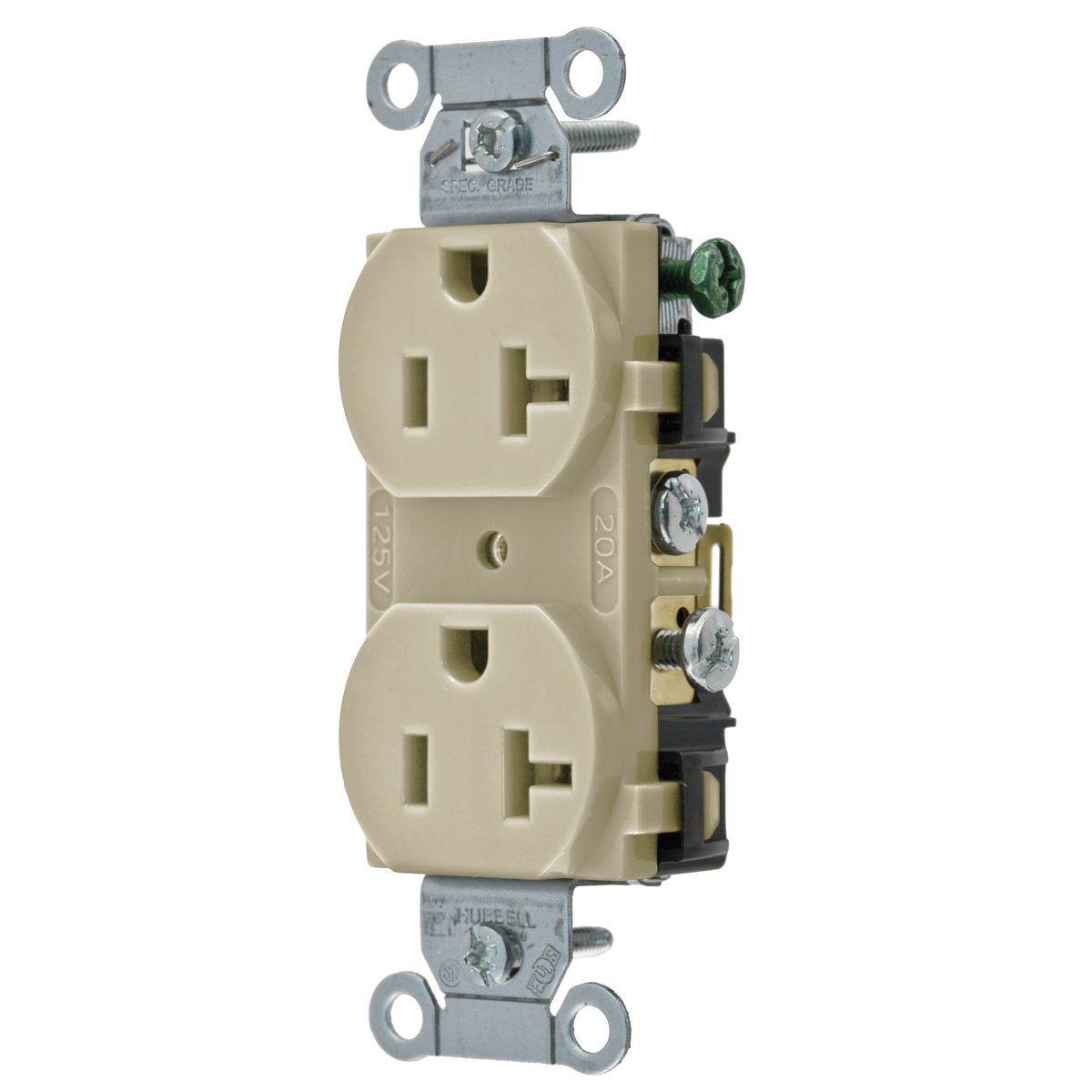

Hubbell Wiring Device-Kellems CR20I Commercial Grounding Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems CR20I Commercial Grounding Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU27337
MFGR #CR20I
$/ea
Wiring Device-Kellems Duplex Receptacle, Grounding, Series: Commercial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 3.281 in H x 1.569 in W
Wiring Device-Kellems Duplex Receptacle, Grounding, Series: Commercial, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 3.281 in H x 1.569 in W
Amperage Rating 20 A Application Commercial Specification Grade ARRA Compliant C Brand Hubbell Wiring Device-Kellems Buy American Compliant C Catalog Number CR20I Color Ivory Connection Back and Side Wired Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.32 in L x 0.83 in W x 3.28 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Specification Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.07 in Height [Metric] 2.7178 cm Horsepower 1 hp Length 4.16 in Length [Metric] 10.5664 cm Manufacturer Hubbell Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Number of Wires 3 Phase 1 Returnable Y Size 1.32 in x 0.83 in x 3.28 in Standard Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2 No. 42 File 285Federal Specification WC596UL 94-V-2 Flammability RatingNEMA WD1/WD5/WD6 Stock Status NORMALLY STOCKED Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Standard Duplex UNSPSC 39121406 UPC 11 78358590015 UPC 12 783585900155 Voltage Rating 125 V Wattage 2,500 W Width 1.50 in Width [Metric] 3.8100 cm Wire Size #12 AWG to #10 AWG Commercial Specification Grade Self Grounding Smooth face Triple wipe contacts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 20 A |
| Application | Commercial Specification Grade |
| ARRA Compliant | C |
| Brand | Hubbell Wiring Device-Kellems |
| Buy American Compliant | C |
| Catalog Number | CR20I |
| Color | Ivory |
| Connection | Back and Side Wired |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.32 in L x 0.83 in W x 3.28 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Specification |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.07 in |
| Height [Metric] | 2.7178 cm |
| Horsepower | 1 hp |
| Length | 4.16 in |
| Length [Metric] | 10.5664 cm |
| Manufacturer | Hubbell |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Returnable | Y |
| Size | 1.32 in x 0.83 in x 3.28 in |
| Standard | Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2 No. 42 File 285Federal Specification WC596UL 94-V-2 Flammability RatingNEMA WD1/WD5/WD6 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358590015 |
| UPC 12 | 783585900155 |
| Voltage Rating | 125 V |
| Wattage | 2,500 W |
| Width | 1.50 in |
| Width [Metric] | 3.8100 cm |
| Wire Size | #12 AWG to #10 AWG |
| Commercial Specification Grade |
| Self Grounding |
| Smooth face |
| Triple wipe contacts |
