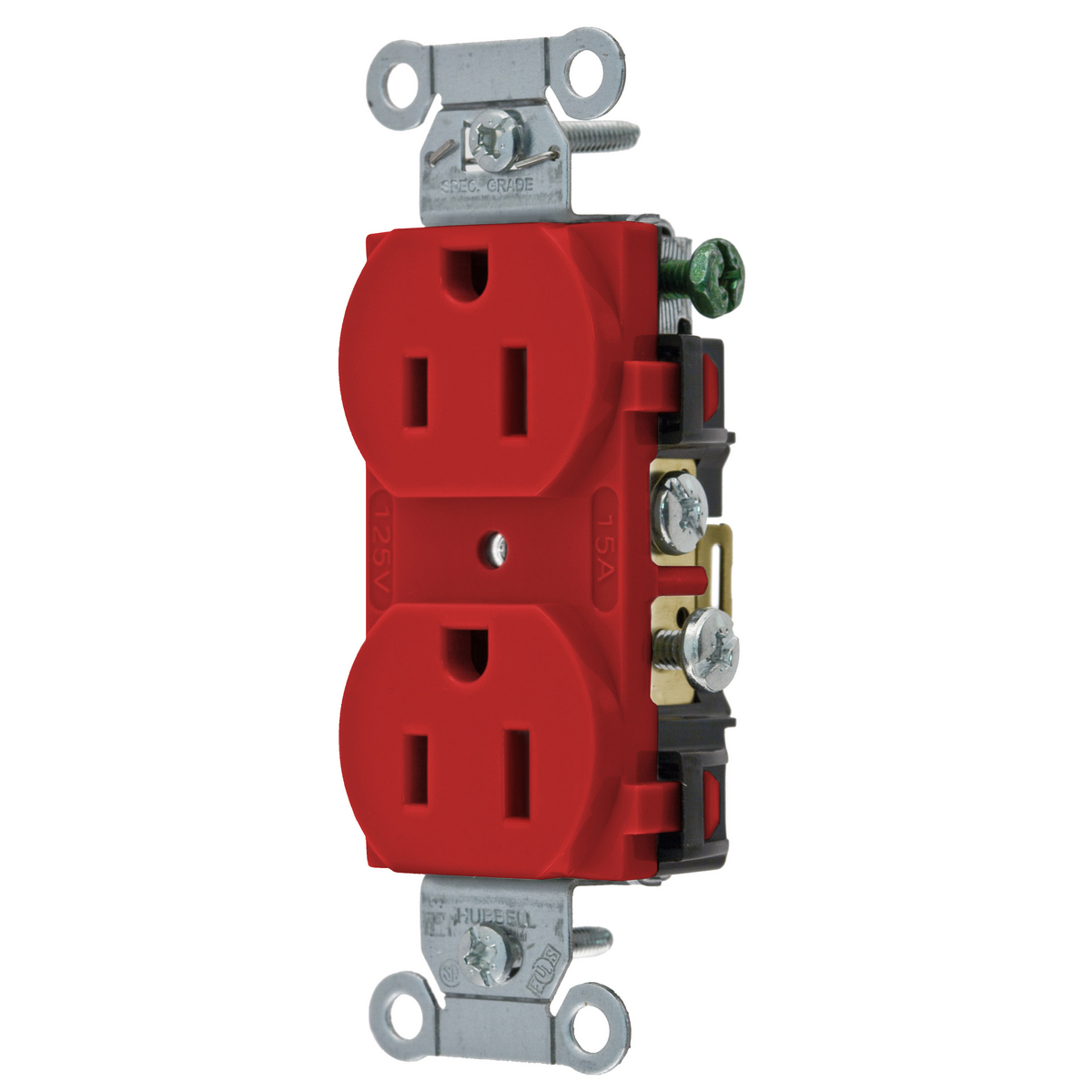

Hubbell Wiring Device-Kellems CR15R Duplex Standard Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red
Straight Blade Receptacles
808078
MFG #: CR15R
Hubbell Wiring Device-Kellems
2.14000
/ ea
Wiring Device-Kellems Straight Blade Receptacle, Duplex Standard Traditional, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Red, 3.28 in H x 1.32 in W x 0.83 in D
- Catalog URL - Wiring_Device_Kellems_BR15AL_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions URL - Wiring_Device_Kellems_BR15AL_Installation_Sheet.pdf(Install Instructions URL)
- Line Drawing URL - 11456_4FULYI10PHZQ72SA.pdf(Line Drawing URL)
- Spec Sheet URL - ViewCatalog.aspx?Search=CR15R(Spec Sheet URL)
- Tech Drawing URL - M10316_ACAD.dwg(Tech Drawing URL)
- Applications
- Features
| Commercial Specification Grade |
| Self Grounding |
| Easy access split circuit tab which makes installation easy |
| Fork terminal capable which makes installation easy |
| Smooth face |
| Triple wipe contacts |
