Hubbell Wiring Device-Kellems

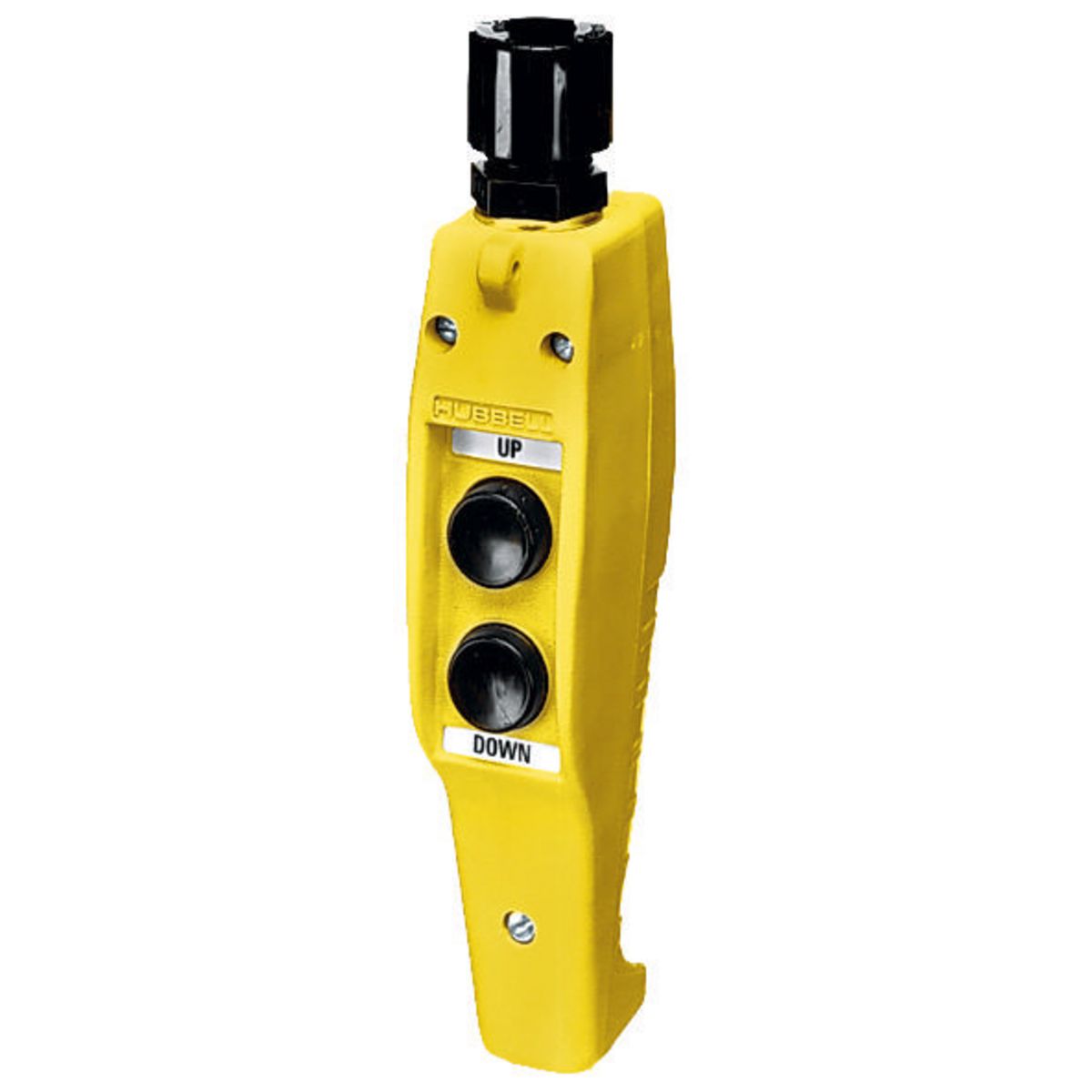

Hubbell Wiring Device-Kellems CPB21 Hubbell® CPB Compact Pendant Pushbutton Station, 240 VAC, 3 A, 1NO-1NC, NEMA 4X
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems CPB21 Hubbell® CPB Compact Pendant Pushbutton Station, 240 VAC, 3 A, 1NO-1NC, NEMA 4X
SKU26395
MFGR #CPB21
Your Cost: $184.12/ea
Hubbell® Pendant Pushbutton Station, Compact, Series: CPB, 240 VAC, 3 A, 2 Poles, 1NO-1NC, 1 Phase, Flush Operator, Up/Down Legend, Screw, NEMA 4X, Surface Mount, -40 to 75 deg C Operating, Non-Metallic, Yellow/Black, 9.13 in H x 2.38 in W
Hubbell® Pendant Pushbutton Station, Compact, Series: CPB, 240 VAC, 3 A, 2 Poles, 1NO-1NC, 1 Phase, Flush Operator, Up/Down Legend, Screw, NEMA 4X, Surface Mount, -40 to 75 deg C Operating, Non-Metallic, Yellow/Black, 9.13 in H x 2.38 in W
Actuator Push Buttons Application Single Speed ARRA Compliant C Buy American Compliant C Catalog Number CPB21 Color Yellow Connection Terminal Screws Connection Type Threaded Contact Mode Momentary Contact Rating Pilot Duty Only Country of Origin PR Currency USD Dimensions 9.13 in H x 2.38 in W Enclosure NEMA 4X Environmental Conditions Indoor and Outdoor EU RoHS Indicator N Gross Weight Per Pack 0.7500 lb Gross Weight per Pack Metric 0.13 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509031 Height 1.80 in Height [Metric] 4.5720 cm Indicator None Legend Up/Down Length 7.80 in Length [Metric] 19.8120 cm Material Non-Metallic Mounting Cable Mounted Number Of Poles 2 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact °C Operator Type Flush Phase 1 Returnable Y Series CPB Size 9.13 in x 1.06 in x 2.38 in Standard UL LISTED Standards UL 508CSA Certified Sub Brand Magnetic Starter Controls Type Single Speed UNSPSC 39121561 UPC 11 78358510685 UPC 12 783585106854 Width 3.40 in Width [Metric] 8.6360 cm Stock Status NORMALLY STOCKED Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 120V AC- 6A, 240V AC 35% PF- 3A, 125V DC- 1.1A, Inductive 250V- .55 A Contact Configuration Momentary NEMA Rating NEMA 4X Number of Operators 2 Voltage Rating 250 V Single Speed Standard Product 1.06 in OD conduit entry 0.378 to 0.625 in cord 6 A at 120 VAC, 3 A at 240 VAC, 0.55 A at 250V AC, 1.1 A at 125 VDC amperage rating Yellow enclosure and black operator Flush round operator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Push Buttons |
| Application | Single Speed |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CPB21 |
| Color | Yellow |
| Connection | Terminal Screws |
| Connection Type | Threaded |
| Contact Mode | Momentary |
| Contact Rating | Pilot Duty Only |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 9.13 in H x 2.38 in W |
| Enclosure | NEMA 4X |
| Environmental Conditions | Indoor and Outdoor |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.7500 lb |
| Gross Weight per Pack Metric | 0.13 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509031 |
| Height | 1.80 in |
| Height [Metric] | 4.5720 cm |
| Indicator | None |
| Legend | Up/Down |
| Length | 7.80 in |
| Length [Metric] | 19.8120 cm |
| Material | Non-Metallic |
| Mounting | Cable Mounted |
| Number Of Poles | 2 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact °C |
| Operator Type | Flush |
| Phase | 1 |
| Returnable | Y |
| Series | CPB |
| Size | 9.13 in x 1.06 in x 2.38 in |
| Standard | UL LISTED |
| Standards | UL 508CSA Certified |
| Sub Brand | Magnetic Starter Controls |
| Type | Single Speed |
| UNSPSC | 39121561 |
| UPC 11 | 78358510685 |
| UPC 12 | 783585106854 |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 120V AC- 6A, 240V AC 35% PF- 3A, 125V DC- 1.1A, Inductive 250V- .55 A |
| Contact Configuration | Momentary |
| NEMA Rating | NEMA 4X |
| Number of Operators | 2 |
| Voltage Rating | 250 V |
| Single Speed |
| Standard Product |
| 1.06 in OD conduit entry |
| 0.378 to 0.625 in cord |
| 6 A at 120 VAC, 3 A at 240 VAC, 0.55 A at 250V AC, 1.1 A at 125 VDC amperage rating |
| Yellow enclosure and black operator |
| Flush round operator |
