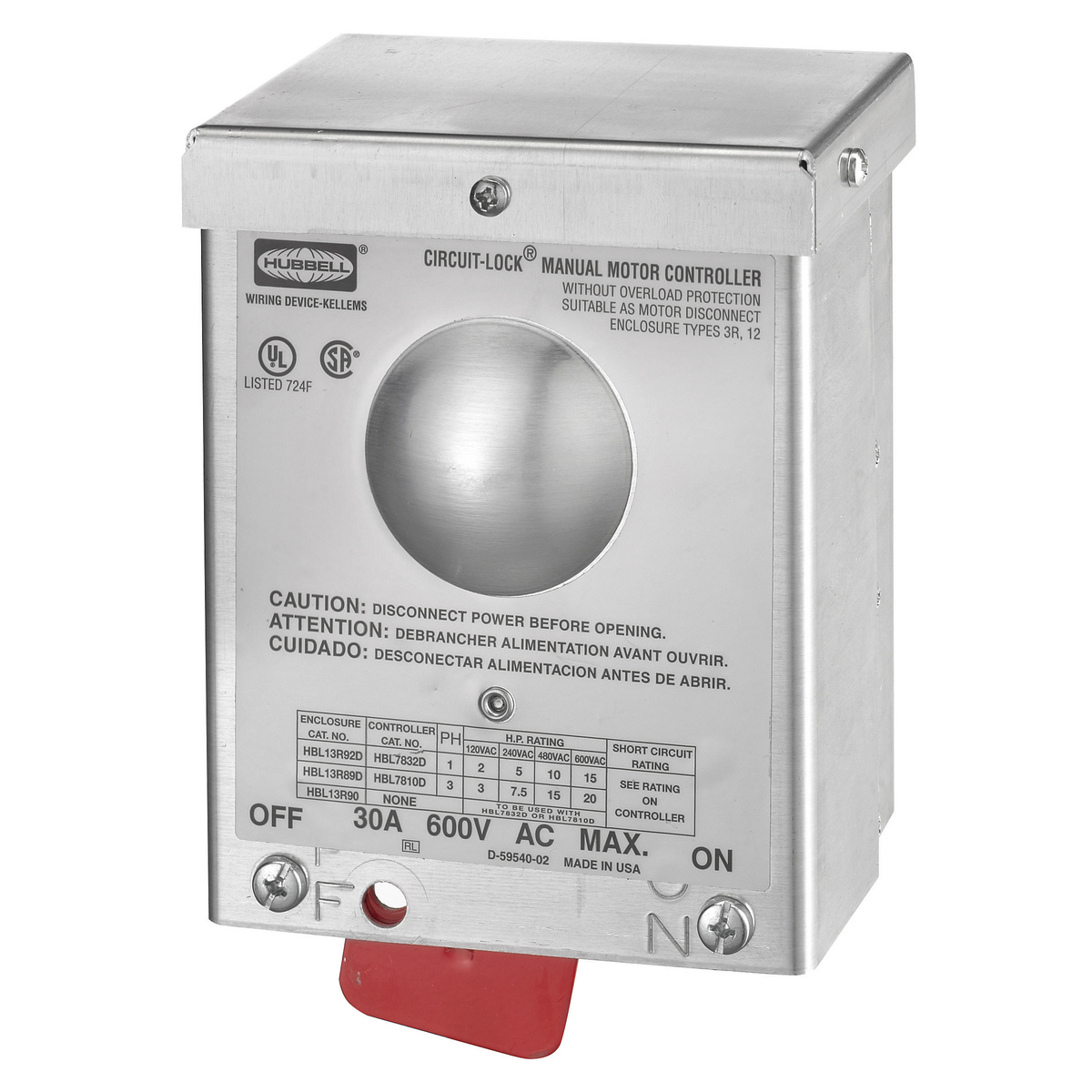

Hubbell Wiring Device-Kellems CIRCUIT-LOCK® HBL13R89D Enclosed AC Motor Disconnect Switch With Switch, 600 VAC, 30 A, 20 hp
AC Motor Starting Switches
229865
MFG #: HBL13R89D
Hubbell Wiring Device-Kellems
222.47000
/ ea
Wiring Device-Kellems CIRCUIT-LOCK® AC Motor Disconnect Switch, Enclosed, 600 VAC, 30 A, 20 hp, 3 Poles, Toggle, Back/Side Wired, NEMA 3R Enclosure, Threaded, 10000 Operating Cycles, Aluminum, Environmental Conditions: -40 to 75 deg C Operating Temperature, 5.52 in H x 4.4 in W x 3.3 in D
- Catalog URL - Wiring_Device_Kellems_HBL1370_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_ZTK72YOXRQVLCMJS.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD2018_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537665236498.pdf(Install Instructions URL)
- Line Drawing URL - 11456_UMJELXZR2PWKD3YN.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL13R89D_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_5S108W2EVPIL3YQK.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL13R89D_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537667247644.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL13R89_M9293_ACAD_DRAWING.dwg(Tech Drawing URL)
- Applications
- Features
| Red Slide |
| Standard Product |
| Wiring conduit knockouts |
| Aluminum cover and base, base is pre-drilled for rear surface mounting |
| Switches and lighting controls, industrial grade, manual motor controllers, motor disconnects |
| Raintight drip shield top, rolled seamless sides |
| Front activated lever allows mounting in tight spaces |
| 3 hp at 120 VAC, 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC power rating at 3-phase |
| Hubbell® wiring devices, switches and lighting control, industrial grade, toggle switch |
| 3 hp at 120 VAC, 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC power rating at 3-phase |
