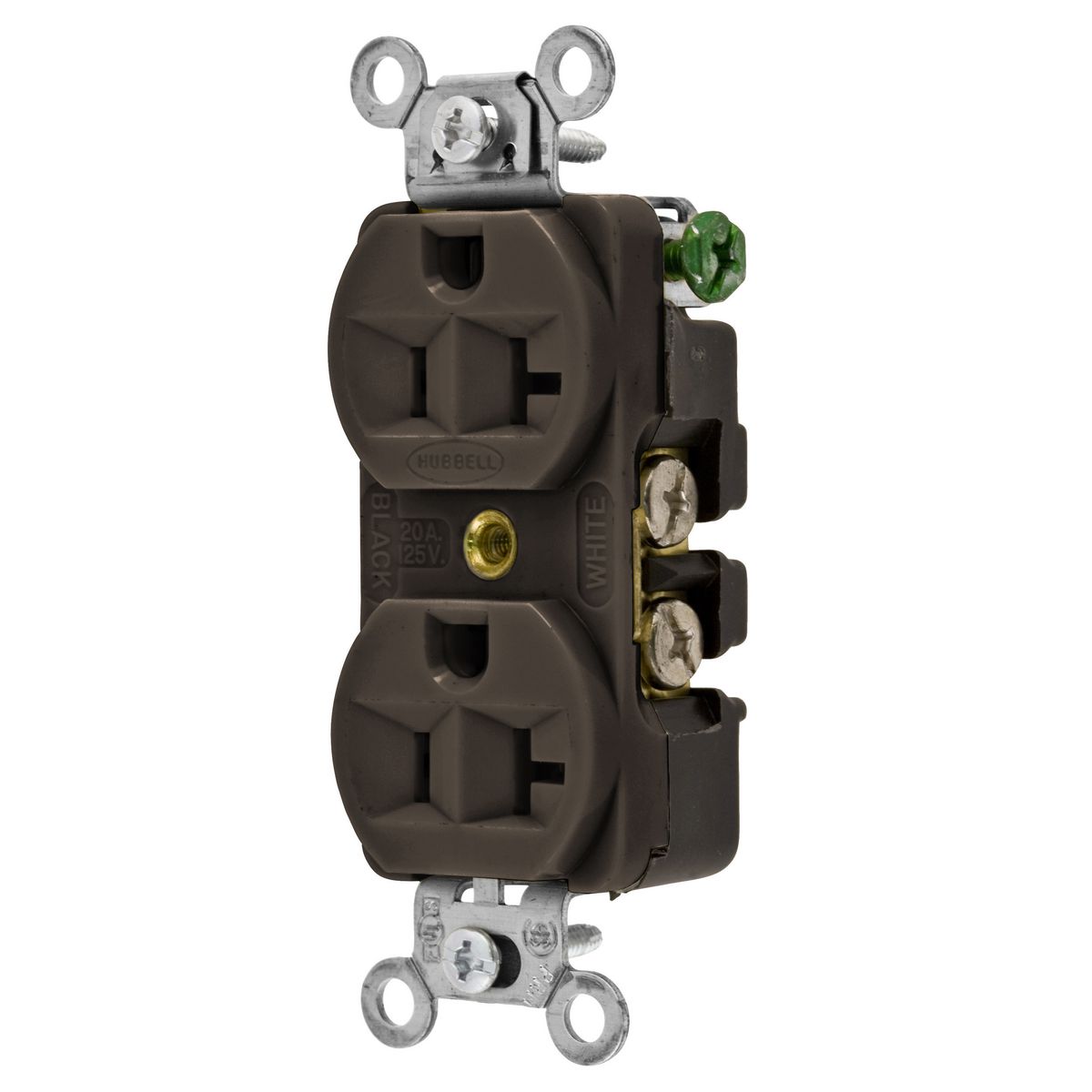

Hubbell Wiring Device-Kellems 5362B RCPT, DUP SB, HUBPRO, 20
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems 5362B RCPT, DUP SB, HUBPRO, 20
SKU415112
MFGR #5362B
Your Cost: $6.50/ea
List: Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hubbell-Pro Industrial Grade, 2-Pole 3-Wire Grounding, 20A125V, 5-20R, Brown, Single Pack
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hubbell-Pro Industrial Grade, 2-Pole 3-Wire Grounding, 20A125V, 5-20R, Brown, Single Pack
Application Hubbell-Pro Extra Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number 5362B Connection Back and Side Wired Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in L x 1.41 in W x 1.09 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Industrial/Specification Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size Standard Sized Product Standard UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL 94-V-2 Flammability RatingNEMA WD1/WD5/WD6 Sub Brand Straight Blade Devices Temperature Rating Maximum continuous 75?°C; minimum -40?°C (w/o impact) °C Terminal Type Back/Side Wired Type Standard Duplex UNSPSC 39121406 UPC 11 78358583498 UPC 12 783585834986 Wattage 1,875 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NORMALLY STOCKED Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 V Hubbell-Pro Extra Heavy Duty Self Grounding RTP base, brass 0.31 in triple wipe power contacts, 0.31 in ground contact, #8 to 32 AWG line terminal and ground screws, galvanized steel 0.04 in mounting strap and center assembly staple, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hubbell-Pro Extra Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5362B |
| Connection | Back and Side Wired |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in L x 1.41 in W x 1.09 in H |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Industrial/Specification |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | Standard Sized Product |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 42UL 498 File No. E2186Federal Specification WC596UL 94-V-2 Flammability RatingNEMA WD1/WD5/WD6 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | Maximum continuous 75?°C; minimum -40?°C (w/o impact) °C |
| Terminal Type | Back/Side Wired |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358583498 |
| UPC 12 | 783585834986 |
| Wattage | 1,875 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hubbell-Pro Extra Heavy Duty |
| Self Grounding |
| RTP base, brass 0.31 in triple wipe power contacts, 0.31 in ground contact, #8 to 32 AWG line terminal and ground screws, galvanized steel 0.04 in mounting strap and center assembly staple, stainless steel automatic self-grounding staple, zinc plated steel mounting screws |
