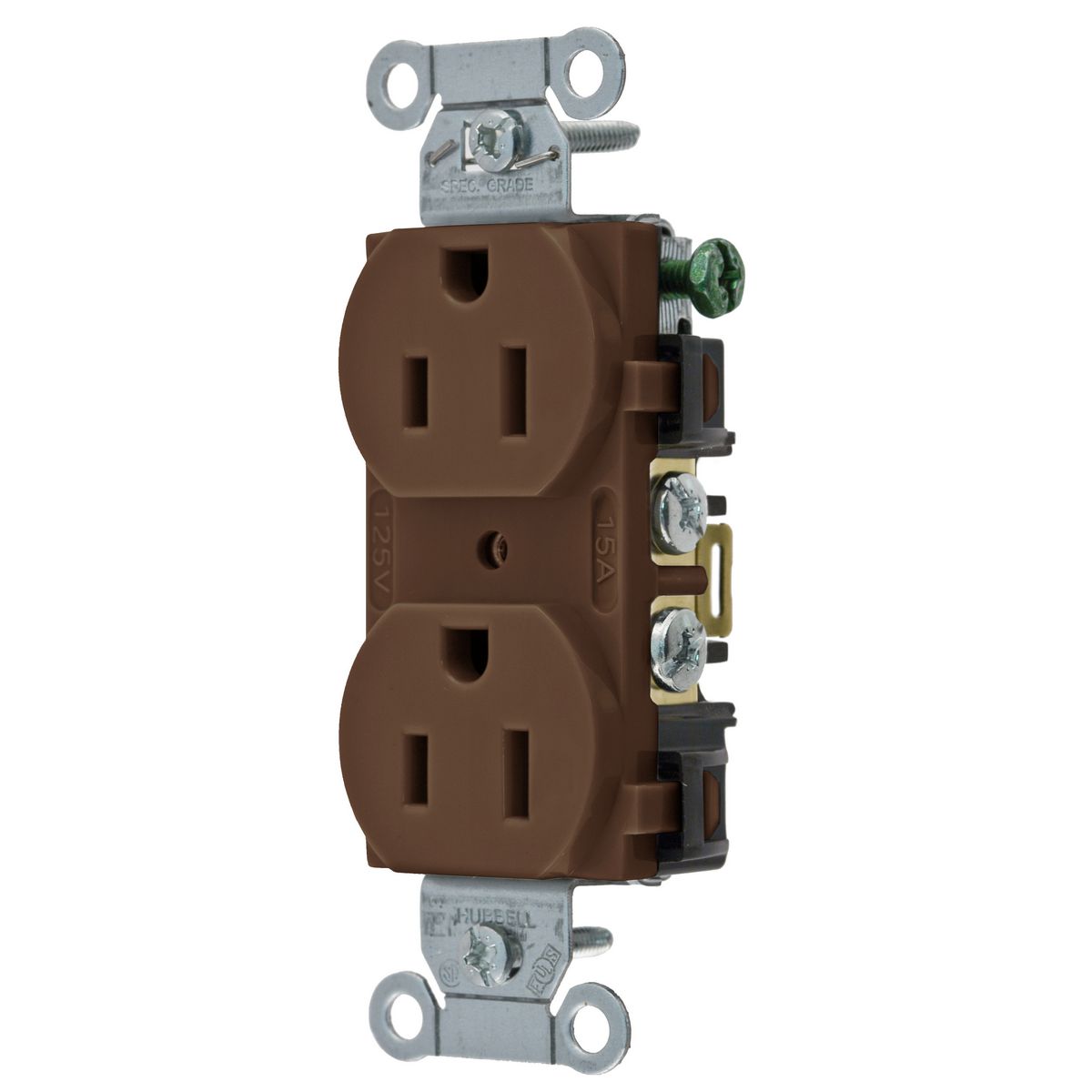

Hubbell Wiring Device-Kellems 5252AB Hubbell-PRO Grounding Heavy Duty Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems 5252AB Hubbell-PRO Grounding Heavy Duty Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU415092
MFGR #5252AB
Your Cost: $3.84/ea
List: Wiring Device-Kellems Duplex Receptacle, Grounding Heavy Duty, Series: Hubbell-PRO, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Industrial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Brown, 3.28 in H x 1.406 in W x 1.094 in D
Wiring Device-Kellems Duplex Receptacle, Grounding Heavy Duty, Series: Hubbell-PRO, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Industrial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Nylon, Brown, 3.28 in H x 1.406 in W x 1.094 in D
Application Hubbell-Pro Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number 5252AB Country of Origin CN Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.281 in H x 1.406 in W x 1.094 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Commercial/Industrial Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.07 in Height [Metric] 2.7178 cm Horsepower 1/2 hp Length 4.16 in Length [Metric] 10.5664 cm Material Composite/Thermoplastic Mounting Screw Mount NEMA Rating NEMA 5-15R Number Of Poles 2 Phase 1 Returnable Y Standard UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2 No. 42/285NEMA WD1/WD5UL94 V-2 Flammability Rating Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional UNSPSC 39121406 UPC 11 78358510969 UPC 12 783585109695 Wattage 1875 W Width 1.57 in Width [Metric] 3.9878 cm Wire Size #14 to #10 Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Brown Number of Wires 3 Voltage Rating 125 VAC Hubbell-Pro Heavy Duty Self Grounding Withstands 2000 VAC dielectric voltage Withstands 2000 V minimum dielectric voltage Slender compact design Smooth face Triple wipe contacts 14 to 10 AWG copper stranded or solid conductor only terminal accommodation Terminal wire leads identified in accordance with UL 498 Nylon top and base, PBT base, brass contacts, galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Traditional face shape
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hubbell-Pro Heavy Duty |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5252AB |
| Country of Origin | CN |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.281 in H x 1.406 in W x 1.094 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.07 in |
| Height [Metric] | 2.7178 cm |
| Horsepower | 1/2 hp |
| Length | 4.16 in |
| Length [Metric] | 10.5664 cm |
| Material | Composite/Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E2186CSA C22.2 No. 42/285NEMA WD1/WD5UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional |
| UNSPSC | 39121406 |
| UPC 11 | 78358510969 |
| UPC 12 | 783585109695 |
| Wattage | 1875 W |
| Width | 1.57 in |
| Width [Metric] | 3.9878 cm |
| Wire Size | #14 to #10 |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Hubbell-Pro Heavy Duty |
| Self Grounding |
| Withstands 2000 VAC dielectric voltage |
| Withstands 2000 V minimum dielectric voltage |
| Slender compact design |
| Smooth face |
| Triple wipe contacts |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Terminal wire leads identified in accordance with UL 498 |
| Nylon top and base, PBT base, brass contacts, galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Traditional face shape |
