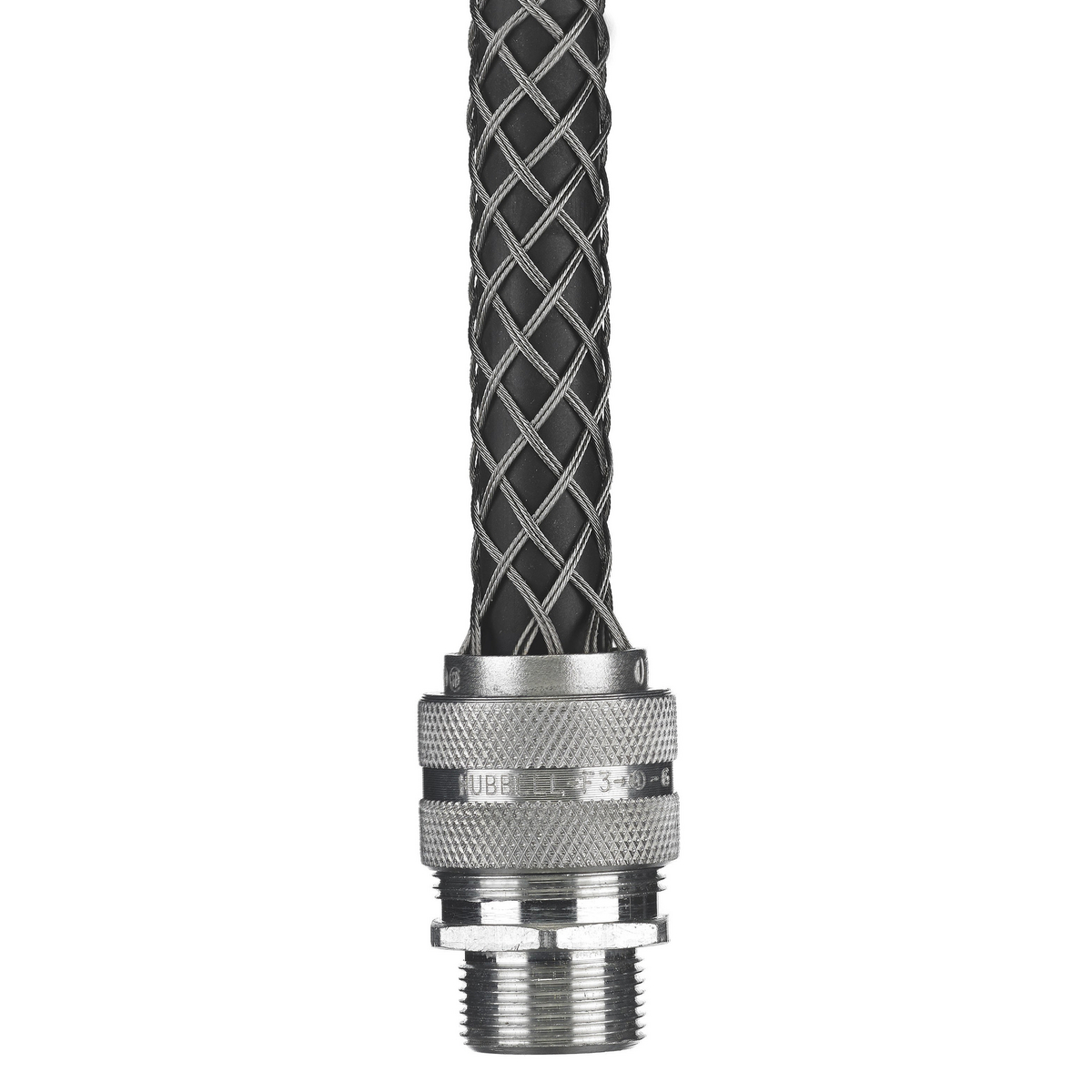

Hubbell Wiring Device-Kellems 074PG291028 STR MALE, DCG, 1.1
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems 074PG291028 STR MALE, DCG, 1.1
SKU610098
MFGR #074PG291028
Your Cost: $237.01/ea
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Application Straight Male- Form 5 ARRA Compliant C Buy American Compliant C Catalog Number 074PG291028 Color Metallic Conductor Range 1.125-1.25 in (2.86-3.17 mm) Country of Origin US Currency USD Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326200090 Height 2.50 in Height [Metric] 6.3500 cm Length 12.50 in Length [Metric] 31.7500 cm Mounting Locknut or Tapped Opening Number Of Conductors Single Returnable N Size PG29 Standard UL LISTED Standards UL Listed, CSA Certified, Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2, UL 94 V2, UL 94 HB Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) °C Type Straight PG Male Thread UNSPSC 39121431 UPC 11 78358532785 UPC 12 783585327853 Width 2.50 in Width [Metric] 6.3500 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Material Aluminum Fittings, Stainless Steel Mesh Straight Male- Form 5 Standard Product Helps to prevent cable pull-out Controls cable arc-of-bend Provides a liquidtight seal Corrosion-resistant stainless steel mesh with aluminum collar An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box A liquidtight fitting is available with both cable and conduit fittings, prevents liquids from running through the fitting into the enclosure F5 form size Straight aluminum connector stainless grip UL 94-HB mesh grip flammability rating 29 mm threaded hub recommended knockout hole The products are suitable for use in wet locations so long as a listed nylon fitting is used between box and fitting Neoprene bushing Suitable for use in hazardous locations Neoprene bushing, oil and watertight Galvanized steel strand, aluminum nut, neoprene bushing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male- Form 5 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 074PG291028 |
| Color | Metallic |
| Conductor Range | 1.125-1.25 in (2.86-3.17 mm) |
| Country of Origin | US |
| Currency | USD |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326200090 |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Length | 12.50 in |
| Length [Metric] | 31.7500 cm |
| Mounting | Locknut or Tapped Opening |
| Number Of Conductors | Single |
| Returnable | N |
| Size | PG29 |
| Standard | UL LISTED |
| Standards | UL Listed, CSA Certified, Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2, UL 94 V2, UL 94 HB |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) °C |
| Type | Straight PG Male Thread |
| UNSPSC | 39121431 |
| UPC 11 | 78358532785 |
| UPC 12 | 783585327853 |
| Width | 2.50 in |
| Width [Metric] | 6.3500 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Straight Male- Form 5 |
| Standard Product |
| Helps to prevent cable pull-out |
| Controls cable arc-of-bend |
| Provides a liquidtight seal |
| Corrosion-resistant stainless steel mesh with aluminum collar |
| An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box |
| A liquidtight fitting is available with both cable and conduit fittings, prevents liquids from running through the fitting into the enclosure |
| F5 form size |
| Straight aluminum connector stainless grip |
| UL 94-HB mesh grip flammability rating |
| 29 mm threaded hub recommended knockout hole |
| The products are suitable for use in wet locations so long as a listed nylon fitting is used between box and fitting |
| Neoprene bushing |
| Suitable for use in hazardous locations |
| Neoprene bushing, oil and watertight |
| Galvanized steel strand, aluminum nut, neoprene bushing |
