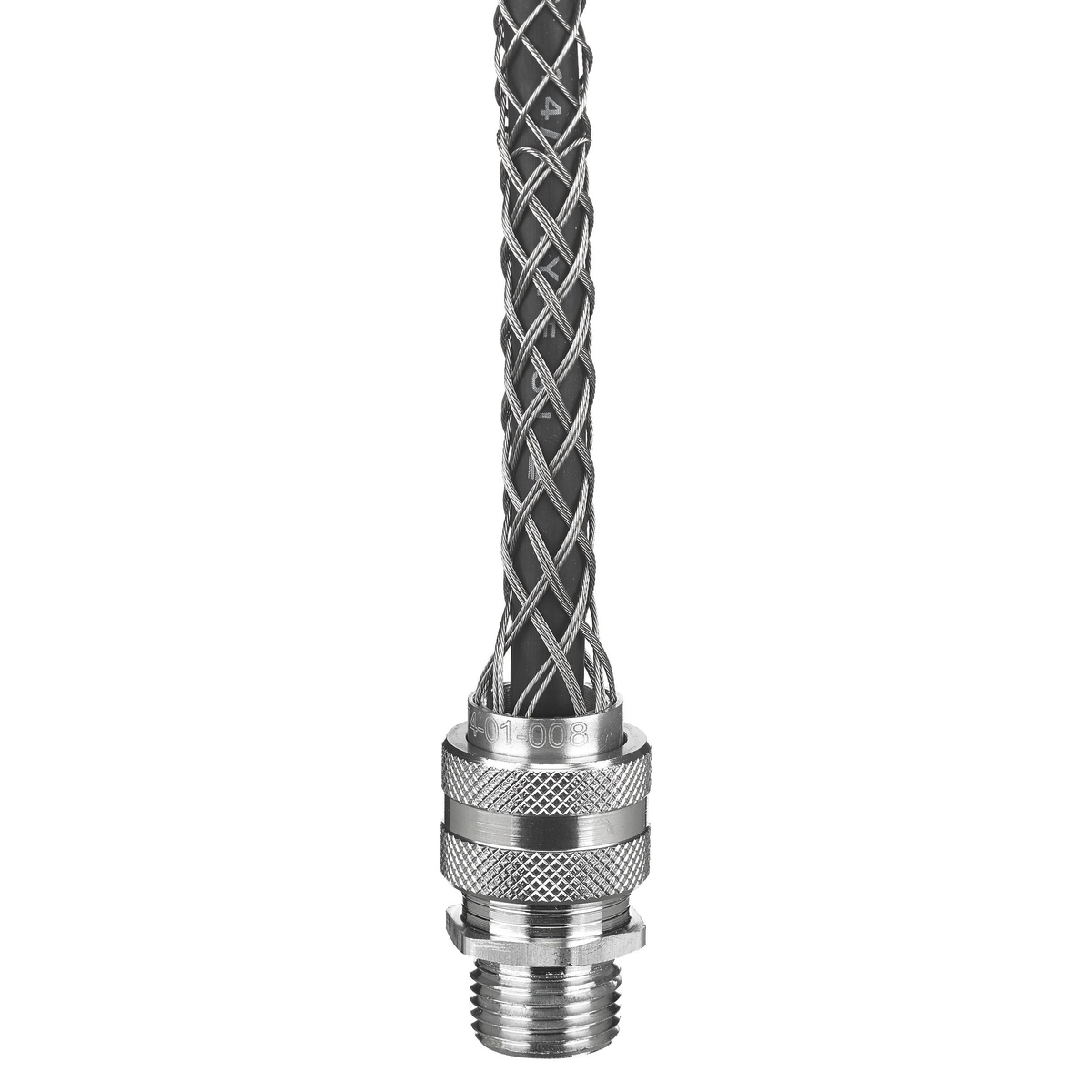

Hubbell Wiring Device-Kellems 074011256 Deluxe Straight Cord Grip, 1-1/2 in Trade, 1.687 to 1.812 in Cable Openings, Aluminum
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems 074011256 Deluxe Straight Cord Grip, 1-1/2 in Trade, 1.687 to 1.812 in Cable Openings, Aluminum
SKU156539
MFGR #074011256
Your Cost: $315.42/ea
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Application Straight Male- Form 6 ARRA Compliant C Buy American Compliant C Cable Type Jacketed Catalog Number 074011256 Color Metallic Conductor Range 1.687-1.821 in (4.28-4.6 mm) Connection Type MNPT Country of Origin US Currency USD Dimensions 3 in Dia x 2.2 in L Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326200090 Height 1.30 in Height [Metric] 3.3020 cm Length 17.60 in Length [Metric] 44.7040 cm Mounting Locknut or Tapped Opening Number Of Conductors Single Returnable Y Size 1 1/2" NPT in Standard UL Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 898D/899DNECCSA CertifiedUL 94-HBUL94 V-2 Flammability RatingHazardous Location per Class I Div 2, Class II Div 1, 2, Class III Div 1, 2 Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) °F Type Straight Male Thread UNSPSC 39121431 UPC 11 78358533084 UPC 12 783585330846 Width 1.60 in Width [Metric] 4.0640 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 1.687 to 1.821 in Material Aluminum Fittings, Stainless Steel Mesh Trade Size 1-1/2 in Straight Male- Form 6 Standard Product Stainless steel mesh is corrosion resistant Multi-weave grip gives cable arc of bend control Endless weave provides easy cable/flexible conduit installation Provides a liquidtight seal An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box Prevents liquids from running through the fitting into the enclosure UL 94-HB mesh grip flammability rating 1.969 to 2.016 in recommended knockout hole 1.5 in Dia throat Suitable for use in hazardous locations Multi-weave grip gives cable arc-of-bend control Endless weave provides easy cable/flexible conduit installation Stainless steel strand, aluminum nut, neoprene bushing 1-1/4-11-1/2 thread Endless weave provides easy cable/flexible conduit installation Stainless steel strand, aluminum nut, neoprene bushing 1-1/4-11-1/2 thread size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male- Form 6 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Type | Jacketed |
| Catalog Number | 074011256 |
| Color | Metallic |
| Conductor Range | 1.687-1.821 in (4.28-4.6 mm) |
| Connection Type | MNPT |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3 in Dia x 2.2 in L |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326200090 |
| Height | 1.30 in |
| Height [Metric] | 3.3020 cm |
| Length | 17.60 in |
| Length [Metric] | 44.7040 cm |
| Mounting | Locknut or Tapped Opening |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 1 1/2" NPT in |
| Standard | UL Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 898D/899DNECCSA CertifiedUL 94-HBUL94 V-2 Flammability RatingHazardous Location per Class I Div 2, Class II Div 1, 2, Class III Div 1, 2 |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) °F |
| Type | Straight Male Thread |
| UNSPSC | 39121431 |
| UPC 11 | 78358533084 |
| UPC 12 | 783585330846 |
| Width | 1.60 in |
| Width [Metric] | 4.0640 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 1.687 to 1.821 in |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Trade Size | 1-1/2 in |
| Straight Male- Form 6 |
| Standard Product |
| Stainless steel mesh is corrosion resistant |
| Multi-weave grip gives cable arc of bend control |
| Endless weave provides easy cable/flexible conduit installation |
| Provides a liquidtight seal |
| An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box |
| Prevents liquids from running through the fitting into the enclosure |
| UL 94-HB mesh grip flammability rating |
| 1.969 to 2.016 in recommended knockout hole |
| 1.5 in Dia throat |
| Suitable for use in hazardous locations |
| Multi-weave grip gives cable arc-of-bend control |
| Endless weave provides easy cable/flexible conduit installation |
| Stainless steel strand, aluminum nut, neoprene bushing |
| 1-1/4-11-1/2 thread |
| Endless weave provides easy cable/flexible conduit installation |
| Stainless steel strand, aluminum nut, neoprene bushing |
| 1-1/4-11-1/2 thread size |
