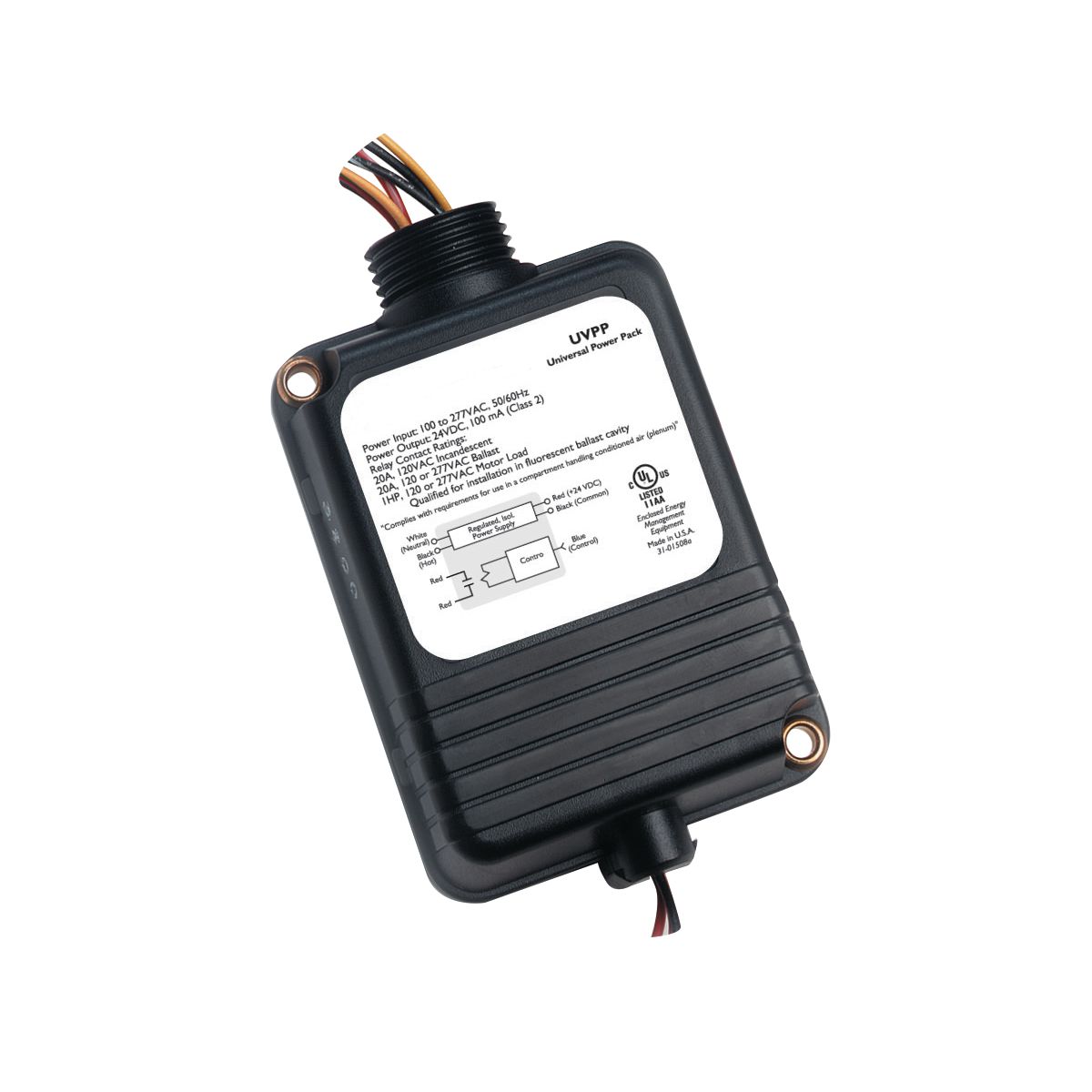

Hubbell® UVPP Universal Voltage Power Pack With Load Switching Relay, 100/277 VAC Input, 24 VDC Output, 150 mA
Custom_Product_Images_Illustration
Hubbell® UVPP Universal Voltage Power Pack With Load Switching Relay, 100/277 VAC Input, 24 VDC Output, 150 mA
SKU416156
MFGR #UVPP
Your Cost: $43.83/ea
The Universal Voltage Power Pack (UVPP) is a self-contained transformer and relay designed for low-voltage 24 VDC occupancy sensors. The power pack supports and automatically detects the line-voltage input within the 100 to 277 VAC range. This eliminates the need for voltage-specific power packs. The Universal Voltage Power Pack with Manual ON/OFF control (UVPPM) provides a unique solution for lighting applications where users require both manual ON/OFF control as well as automatic OFF control.Both power packs are capable of switching 20 A loads and feature Zero Arc Point Switching, minimizing relay-contact wear from high inrush loads. A single power pack can power either 4/3 sensors and the MPSA auxiliary relay for multiple circuits. The power packs are plenum rated and easily mount inside or outside of a junction box or inside a fixture.
The Universal Voltage Power Pack (UVPP) is a self-contained transformer and relay designed for low-voltage 24 VDC occupancy sensors. The power pack supports and automatically detects the line-voltage input within the 100 to 277 VAC range. This eliminates the need for voltage-specific power packs. The Universal Voltage Power Pack with Manual ON/OFF control (UVPPM) provides a unique solution for lighting applications where users require both manual ON/OFF control as well as automatic OFF control.Both power packs are capable of switching 20 A loads and feature Zero Arc Point Switching, minimizing relay-contact wear from high inrush loads. A single power pack can power either 4/3 sensors and the MPSA auxiliary relay for multiple circuits. The power packs are plenum rated and easily mount inside or outside of a junction box or inside a fixture.
ARRA Compliant C Buy American Compliant C Catalog Number UVPP Color Black Control On/Off Country of Origin MX Currency USD Depth 1.36 in Environmental Conditions Indoor EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490075 Height 2.30 in Height [Metric] 5.8420 cm Humidity 0 to 95% Non-Condensing Length 4.60 in Length [Metric] 11.6840 cm Mounting Junction box Operating Temperature 32 to 104 °F Returnable Y Type Controls UNSPSC 39112402 UPC 11 64018180168 UPC 12 64018180168 Width 3.30 in Width [Metric] 8.3820 cm Stock Status NONSTOCK Brand Hubbell Control Solutions Manufacturer Hubbell Amperage Rating 150 mA Input Voltage 100 to 277 VAC Output Voltage 24 VDC Relay Rating 20 A, 1 hp Automatic voltage detection Maximum of 20 A electrical load switching capability Zero arc point switching Mounts inside or outside a junction box, inside a fixture ON/OFF control
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | UVPP |
| Color | Black |
| Control | On/Off |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.36 in |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490075 |
| Height | 2.30 in |
| Height [Metric] | 5.8420 cm |
| Humidity | 0 to 95% Non-Condensing |
| Length | 4.60 in |
| Length [Metric] | 11.6840 cm |
| Mounting | Junction box |
| Operating Temperature | 32 to 104 °F |
| Returnable | Y |
| Type | Controls |
| UNSPSC | 39112402 |
| UPC 11 | 64018180168 |
| UPC 12 | 64018180168 |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Control Solutions |
| Manufacturer | Hubbell |
| Amperage Rating | 150 mA |
| Input Voltage | 100 to 277 VAC |
| Output Voltage | 24 VDC |
| Relay Rating | 20 A, 1 hp |
| Automatic voltage detection |
| Maximum of 20 A electrical load switching capability |
| Zero arc point switching |
| Mounts inside or outside a junction box, inside a fixture |
| ON/OFF control |
