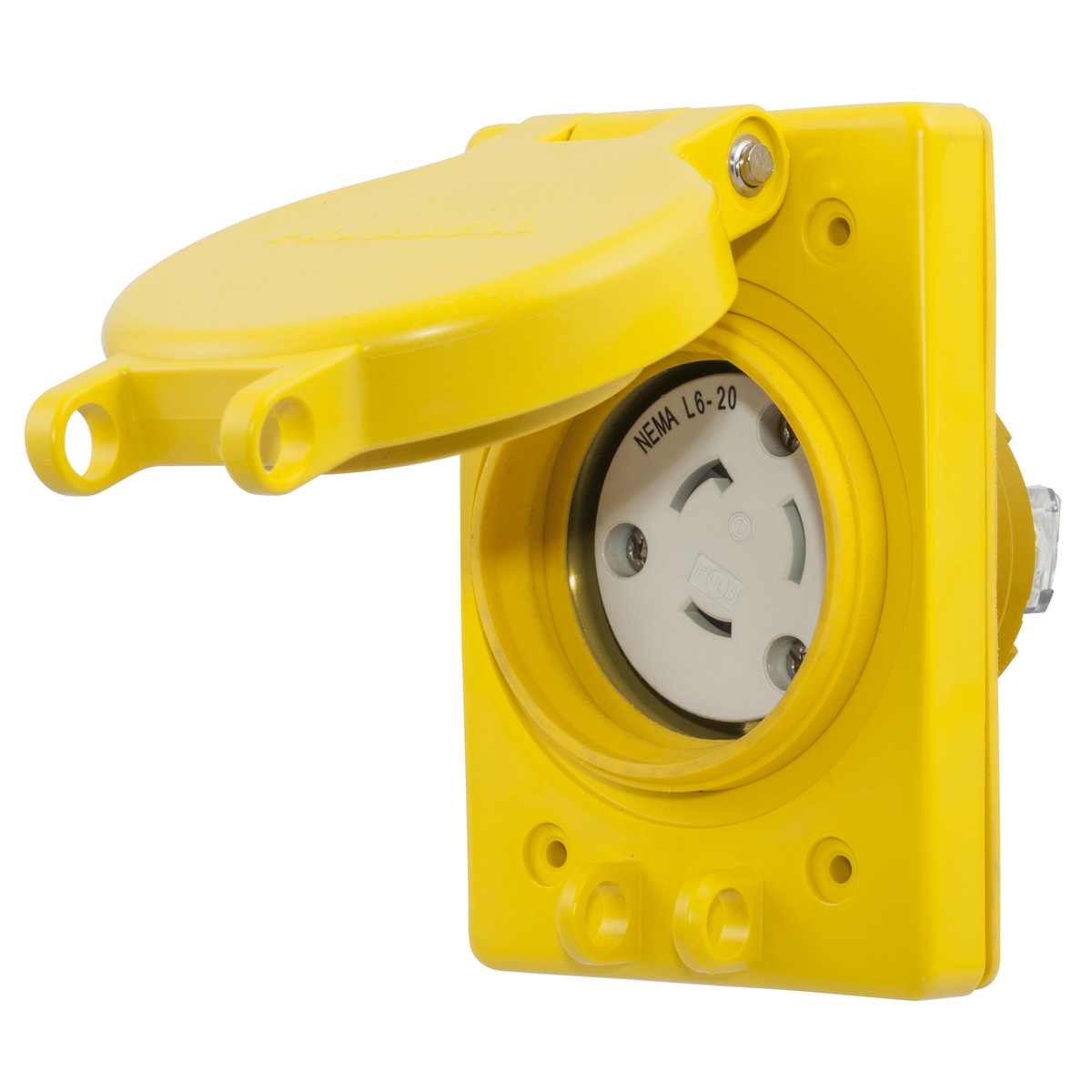

Hubbell® Twist-Lock® HBL67W48 Watertight Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Locking Receptacles
1079539
MFG #: HBL67W48
Hubbell Wiring Device-Kellems
116.01000
/ ea
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
- Catalog URL - Wiring_Device_Kellems_HBL67W83_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - WIRING_PD2658_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_2LKRV50JOZ3YXASB.pdf(Line Drawing URL)
- Install Instructions 1 URL - 11456_7OWZXGHTMUKBC14D.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537662899655.pdf(Install Instructions URL)
- Spec Sheet URL - ID-SPE-v1-HBL67W48.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Line Drawing URL - WDK_HBL67W_DRAWING_PDF.pdf(Line Drawing URL)
- Tech Drawing URL - WIRING_HBL67W48_M12628_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Spec Sheet URL - WIRING_HBL67W48_spec.pdf(Spec Sheet URL)
- Spec Sheet URL - 11456_ID-SPE-v1-HBL67W48.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537668472051.pdf(Tech Drawing URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial |
| Watertight |
| Impact-resistant PBT lid, cover plate and receptacle body |
| Stainless steel hardware and corrosion-resistant connection points |
| Thermoplastic elastomer seal |
| White nylon contact carrier, clear polycarbonate terminal retainer, nickel plated brass contacts, white nylon core, stainless steel hardware |
| 30 deg C maximum temperature rise per UL 498 at rated current |
| All exposed materials are UV stabilized |
| Current interrupting rated for current interruption per UL 498 |
