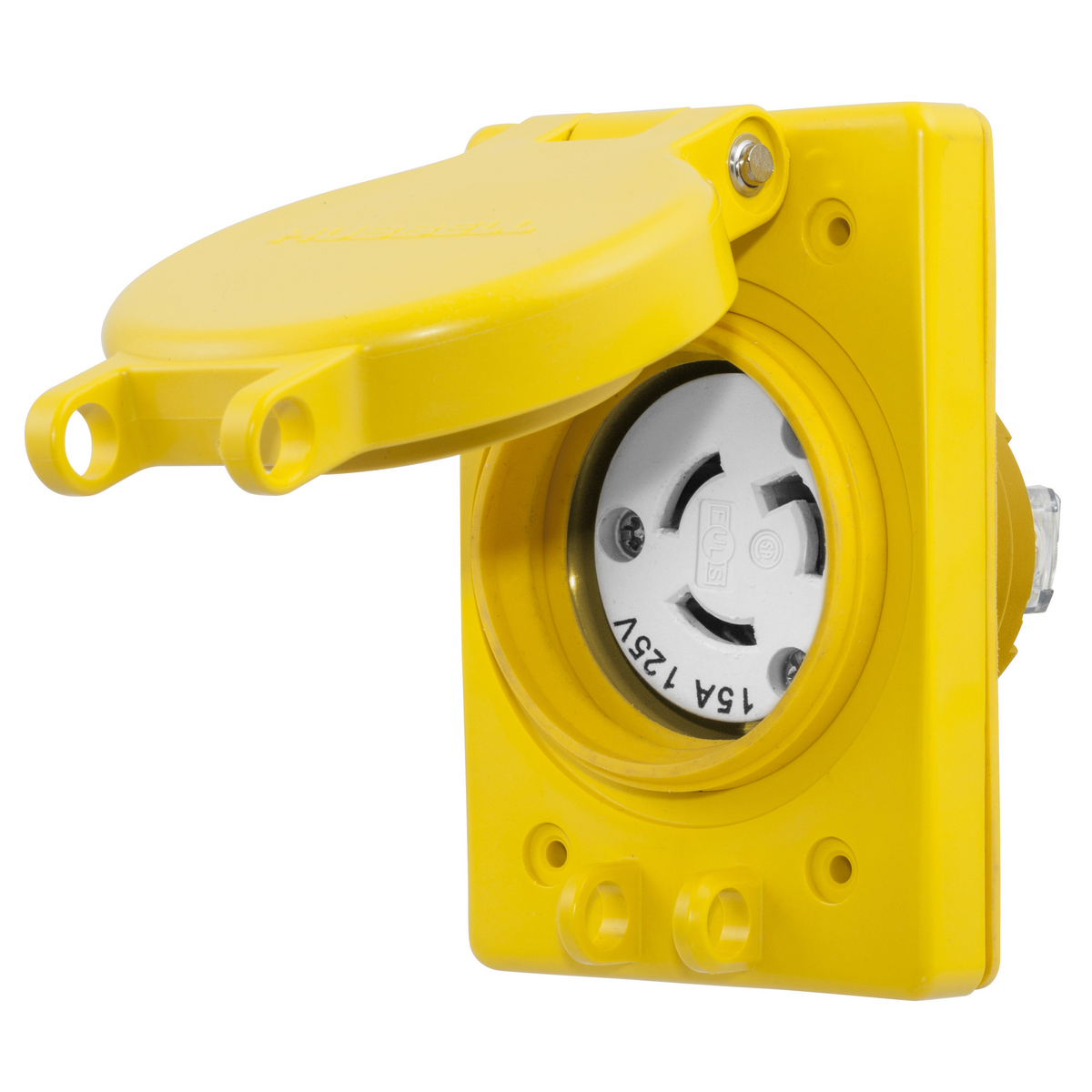

Hubbell® Twist-Lock® HBL65W47 Watertight Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Hubbell® Twist-Lock® HBL65W47 Watertight Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU857000
MFGR #HBL65W47
Your Cost: $121.06/ea
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL65W47 Connection Screw Terminals Country of Origin US Currency USD Dimensions 4.56 in H x 3.1 in W x 1.2 in D Enclosure NEMA 4/4X/12/6/6P/IP65/IP66/IP67 Environmental Conditions Watertight EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 3.50 in Height [Metric] 8.8900 cm Length 5.20 in Length [Metric] 13.2080 cm Material Elastomer/Composite Mounting Screw Mount NEMA Rating L5-15R Number Of Poles 2 Phase 1 Returnable Y Size 4.56 in x 3.10 in x 2.66 in Standard IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1/WD6 Sub Brand Twist-Lock Devices Temperature Rating -40 to 60 °C Terminal Type Screw Type Receptacle UNSPSC 39121406 UPC 11 78358545661 UPC 12 783585456614 Wattage 1,875 W Width 3.30 in Width [Metric] 8.3820 cm Wire Size #18 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Yellow Number of Wires 3 Voltage Rating 125 V Industrial/Commercial Standard Product Impact-resistant PBT lid, cover plate and receptacle body Stainless steel hardware and corrosion-resistant connection points Thermoplastic elastomer seal PBT body, white nylon contact carrier/core, clear polycarbonate terminal retainer, nickel plated brass terminal screw stainless steel hardware 2500 VAC minimum withstand dielectric voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL65W47 |
| Connection | Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.56 in H x 3.1 in W x 1.2 in D |
| Enclosure | NEMA 4/4X/12/6/6P/IP65/IP66/IP67 |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Length | 5.20 in |
| Length [Metric] | 13.2080 cm |
| Material | Elastomer/Composite |
| Mounting | Screw Mount |
| NEMA Rating | L5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 4.56 in x 3.10 in x 2.66 in |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1/WD6 |
| Sub Brand | Twist-Lock Devices |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358545661 |
| UPC 12 | 783585456614 |
| Wattage | 1,875 W |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | #18 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial/Commercial |
| Standard Product |
| Impact-resistant PBT lid, cover plate and receptacle body |
| Stainless steel hardware and corrosion-resistant connection points |
| Thermoplastic elastomer seal |
| PBT body, white nylon contact carrier/core, clear polycarbonate terminal retainer, nickel plated brass terminal screw stainless steel hardware |
| 2500 VAC minimum withstand dielectric voltage |
