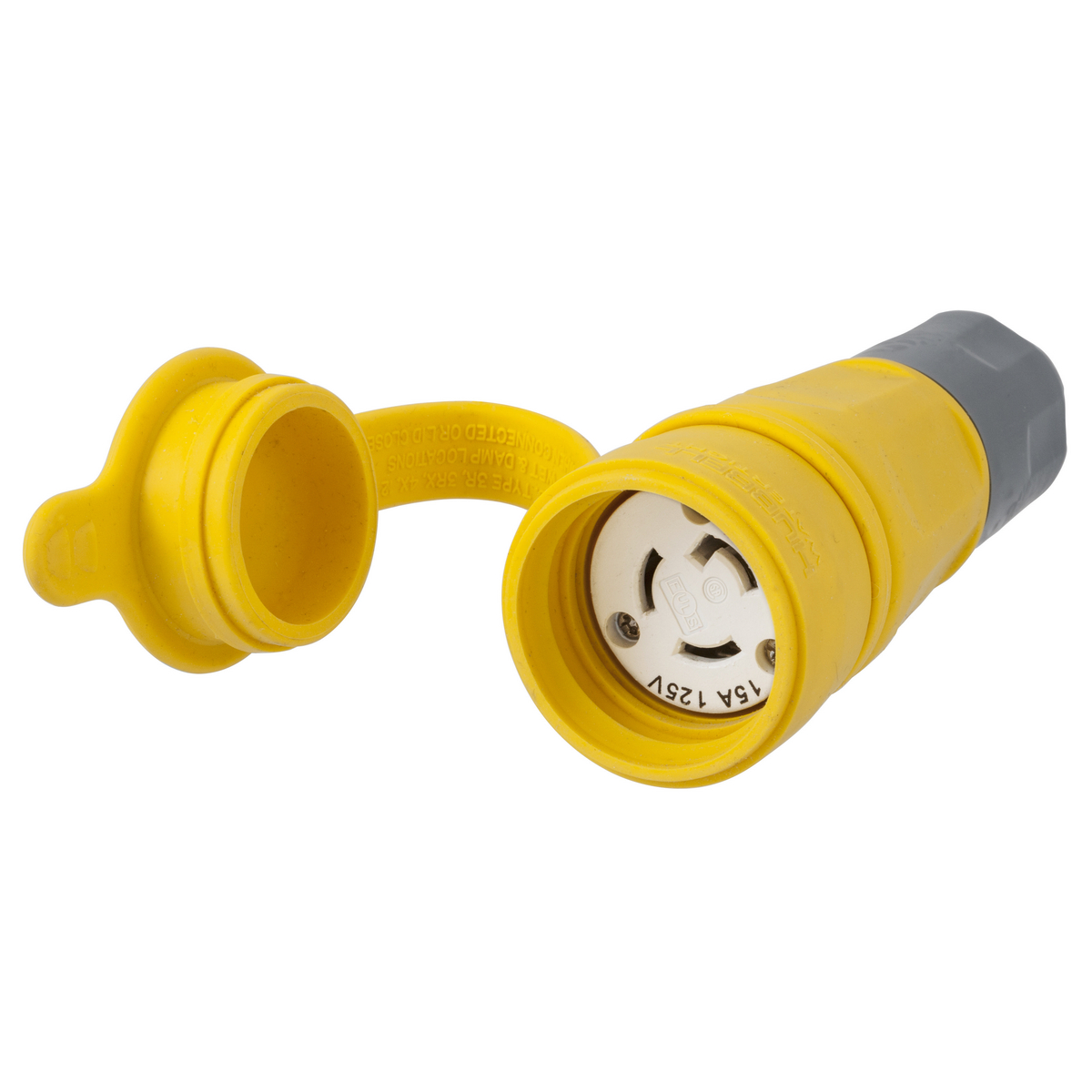

Hubbell® Twist-Lock® HBL25W47A Non-Shrouded Watertight Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Locking Connectors
849806
MFG #: HBL25W47A
Hubbell Wiring Device-Kellems
47.32000
/ ea
Hubbell® Twist-Lock® Locking Connector, Non-Shrouded Watertight, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15R, Grade: Commercial/Industrial, IP20 Enclosure, 3/8 to 5/8 in Cord Dia, -40 to 75 deg C, Screw Terminal, Plastic, Yellow, 1.85 in L x 4.62 in L
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_4IPAFMW70KUG2QH5.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD2634_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537662577515.pdf(Install Instructions URL)
- Line Drawing URL - 11456_Y6GSME35CZ1DQKRA.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL25W47A_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_13106133-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - 13106133-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL25W47A_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537665104281.pdf(Tech Drawing URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Tech Drawing URL - WIRING_HBL25W47A_M12622_ACAD_DRAWING.dwg(Tech Drawing URL)
- Applications
- Features
| Industrial/Commercial |
| Watertight |
| Grounding style connector |
| Standard wiring style |
| Brass terminal and ground screw zinc plated steel cord clamp and body holding screw bronze contact spring, spring binding plate and ground contact, polycarbonate terminal retainer |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion resistant connection points |
