Hubbell® Insulgrip® HBL5369C Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Straight Blade Connectors
26457
MFG #: HBL5369C
Hubbell Wiring Device-Kellems
48.68000
/ ea

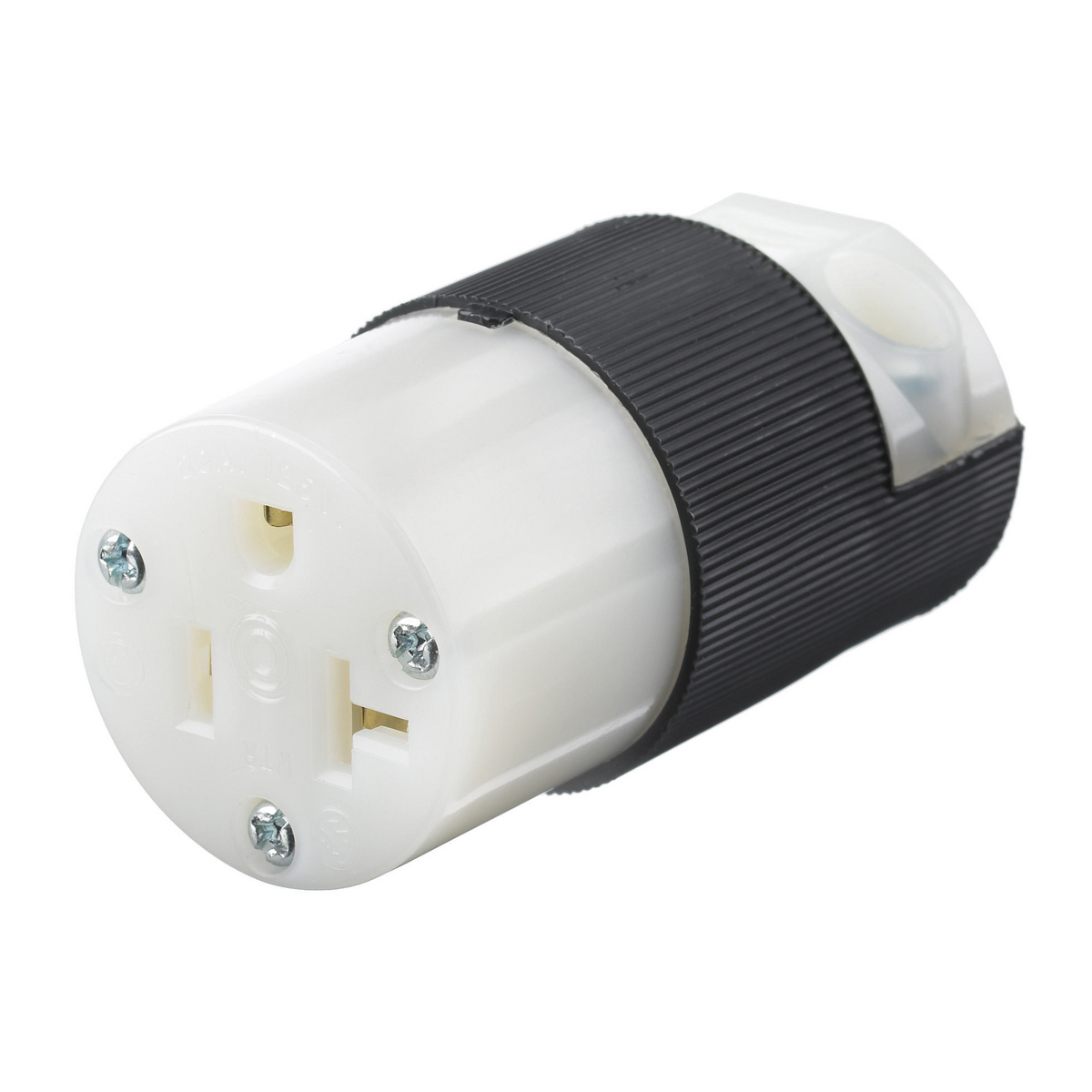

Hubbell® Insulgrip® Straight Blade Connector, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Back Wired Terminal, Nylon, Black, 2.7 in L x 1.527 in W
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_FSUQ4CTE97YAVRW6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1214_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537666869115.pdf(Install Instructions URL)
- Line Drawing URL - 11456_KWBFO6YZ82XATIR1.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL5369C_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_0IZ6C8XYBQ3VM24S.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL5369C_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - Wiring_Device_Kellems_HBL5269C_Technical.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL5369C_M7150_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Industrial/Commercial Grade |
| Standard Product |
| Individual wiring terminals completely enclosed |
| Powerful, offsetting cord grips clamp on individual conductors |
| Fast lead assembly screws |
| Beveled housing prevents snagging |
| Withstands 2000 VAC minimum dielectric voltage |
| 18 to 10 AWG copper conductor terminal accommodation |
| Certified for current interrupting at full rated current |
| -40 to 75 deg C operating temperature |
| Nylon to natural contact holder |
| 0.04 in copper alloy power contacts |
| Withstands 2000 VAC minimum dielectric voltage |
| Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL 498 (brass, white, green) terminal identification |
| 18 to 10 AWG copper stranded wire size |
| Ratings are a permanent part of the device product identification |
| 14 to 12 AWG wire size |
| Cord mounted |
| Industrial/commercial grade |
