Hubbell Wiring Device-Kellems

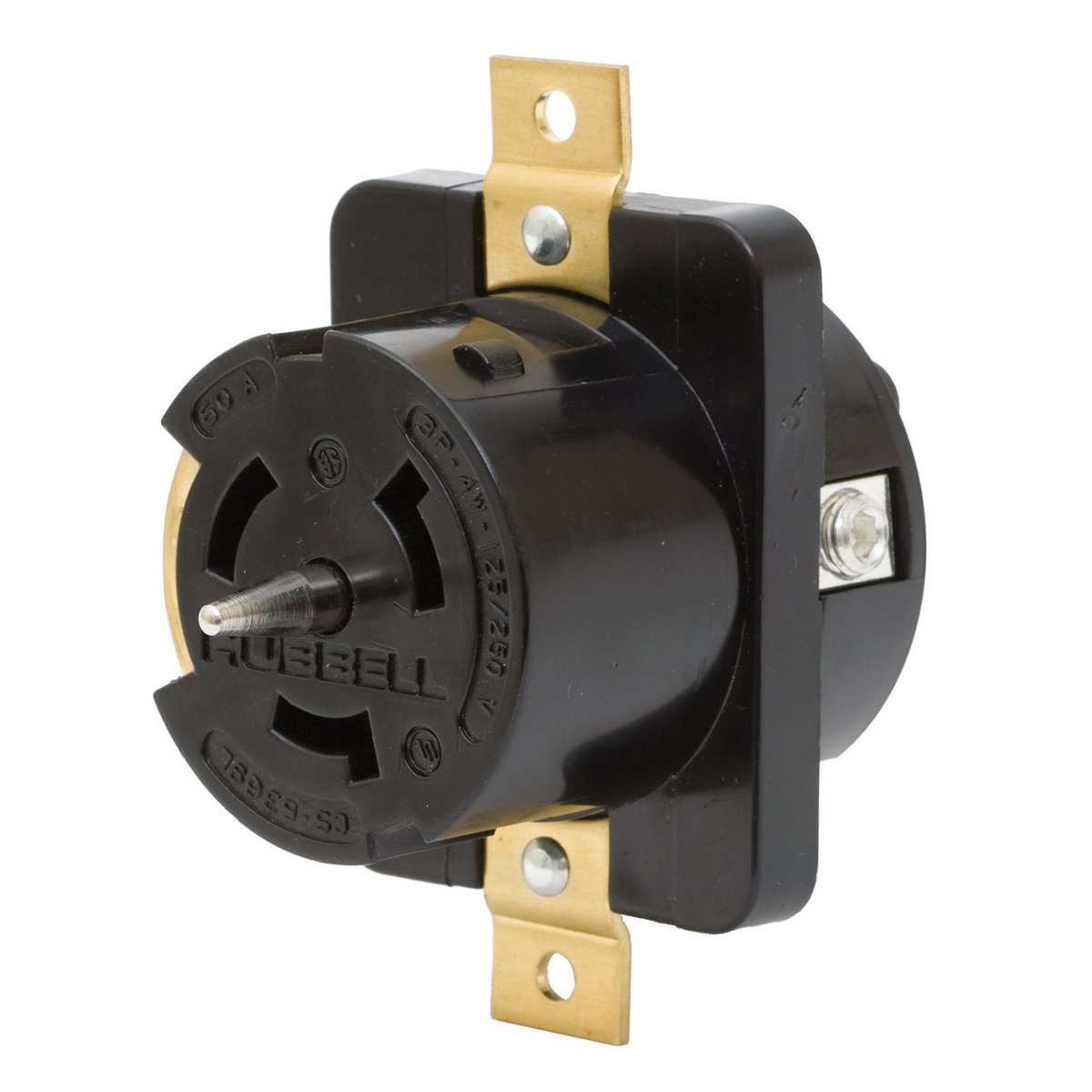

Hubbell® Bryant® Twist-Lock® CS6369LM1 Single Locking Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell® Bryant® Twist-Lock® CS6369LM1 Single Locking Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
SKU492211
MFGR #CS6369LM1
$/ea
Bryant Electric Twist-Lock® Locking Receptacle, Single, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, 0.83 to 1.25 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.1 in W x 2.4 in D
Bryant Electric Twist-Lock® Locking Receptacle, Single, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, 0.83 to 1.25 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.1 in W x 2.4 in D
Catalog Number CS6369LM1 Country of Origin CN Grade Industrial Gross Weight Per Pack 0.3500 lb Material Composite/Thermoplastic Number Of Poles 3 Standards ARRA CompliantBuy American Act CompliantUL 498 Terminal Type Screw Type 1-Phase Grounding Standard Single UNSPSC 39121406 Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 50 A Color Black Number of Wires 4 Voltage Rating 125/250 VAC Bulk Packed Bulk packaging Resists loosening from cable twist or vibration Allen wrench tightening allows higher torque to prevent overheating and terminal loosening Terminal layout corresponds to commercial cable conductor patterns eliminating the need to cross conductors when wiring Color coded wiring symbols simplify wiring Resistant to the corrosive effects of outdoor environments Provides structural support to the plug shroud preventing damage that would impair mating Integral UL Enclosure Type 3R environmental protection eliminates the need for a supplemental weatherproof cover 10 to 4 AWG wire Steel pressure screw- zinc plate terminal and ground screw Black thermoset body contact carrier 0.1/0.04 in brass contact spring Steel-zinc-plated mounting screw 0.031 in brass ground contact 0.062 in zinc-plated steel bridge (mounting strap) Brass rivet Molded in or stamped on ratings Permanently ink marked on product Withstands 2000 V minimum dielectric voltage Certified for current interrupting at full rated current
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | CS6369LM1 |
| Country of Origin | CN |
| Grade | Industrial |
| Gross Weight Per Pack | 0.3500 lb |
| Material | Composite/Thermoplastic |
| Number Of Poles | 3 |
| Standards | ARRA CompliantBuy American Act CompliantUL 498 |
| Terminal Type | Screw |
| Type | 1-Phase Grounding Standard Single |
| UNSPSC | 39121406 |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 50 A |
| Color | Black |
| Number of Wires | 4 |
| Voltage Rating | 125/250 VAC |
| Bulk Packed |
| Bulk packaging |
| Resists loosening from cable twist or vibration |
| Allen wrench tightening allows higher torque to prevent overheating and terminal loosening |
| Terminal layout corresponds to commercial cable conductor patterns eliminating the need to cross conductors when wiring |
| Color coded wiring symbols simplify wiring |
| Resistant to the corrosive effects of outdoor environments |
| Provides structural support to the plug shroud preventing damage that would impair mating |
| Integral UL Enclosure Type 3R environmental protection eliminates the need for a supplemental weatherproof cover |
| 10 to 4 AWG wire |
| Steel pressure screw- zinc plate terminal and ground screw |
| Black thermoset body contact carrier |
| 0.1/0.04 in brass contact spring |
| Steel-zinc-plated mounting screw |
| 0.031 in brass ground contact |
| 0.062 in zinc-plated steel bridge (mounting strap) |
| Brass rivet |
| Molded in or stamped on ratings |
| Permanently ink marked on product |
| Withstands 2000 V minimum dielectric voltage |
| Certified for current interrupting at full rated current |
