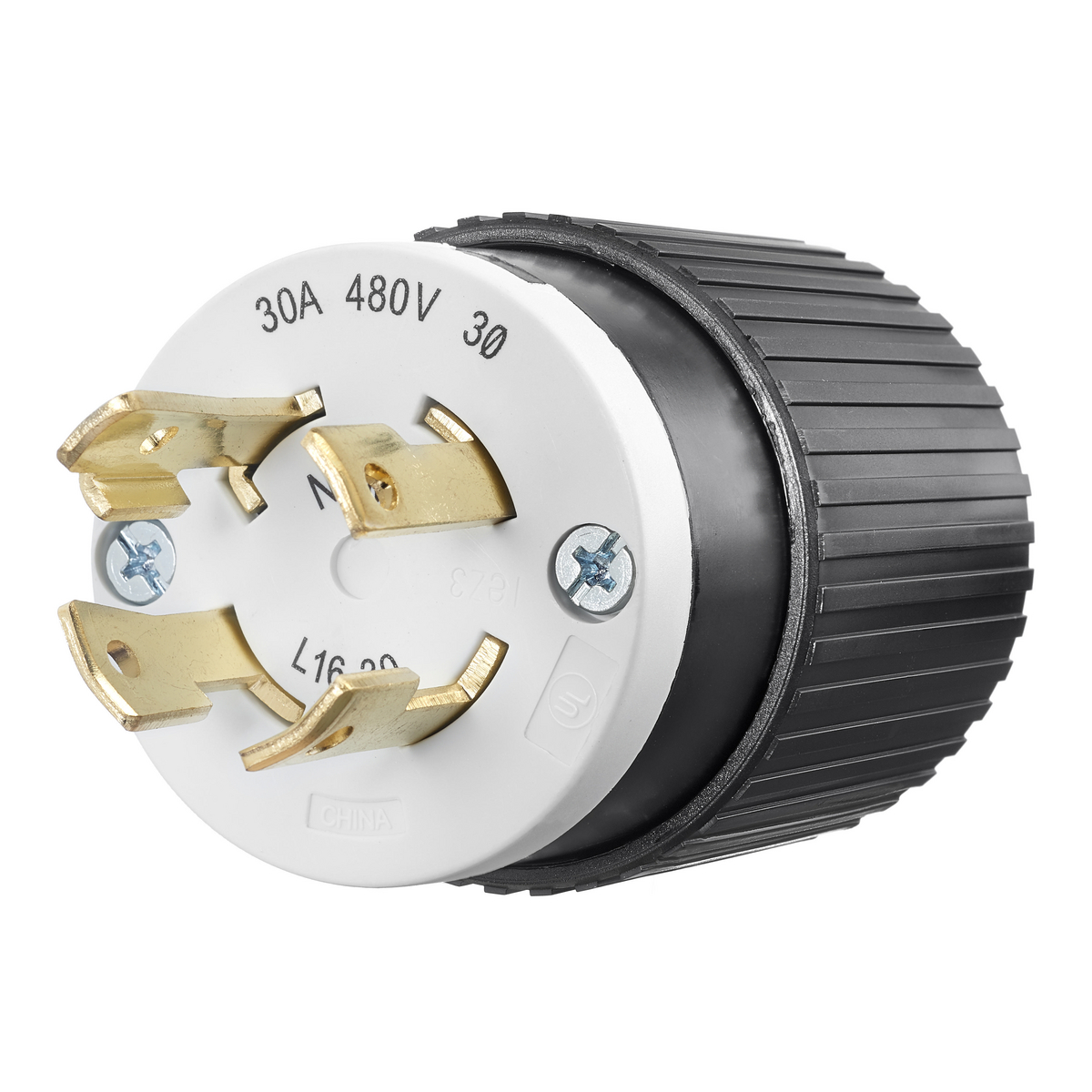

Hubbell® Bryant® Triple Gripper® 71630NP Grounded Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Custom_Product_Images_Illustration
Hubbell® Bryant® Triple Gripper® 71630NP Grounded Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Black/White
SKU239471
MFGR #71630NP
Your Cost: $58.23/ea
List: Bryant Electric Triple Gripper® Locking Plug, Grounded, 480 VAC, 30 A, 50/60 Hz, 3 Poles, 4 Wires, NEMA L6-30, 0.465 to 1.15 in Cord Dia, Nylon, Black/White, 2.13 in Dia
Bryant Electric Triple Gripper® Locking Plug, Grounded, 480 VAC, 30 A, 50/60 Hz, 3 Poles, 4 Wires, NEMA L6-30, 0.465 to 1.15 in Cord Dia, Nylon, Black/White, 2.13 in Dia
Application Extra Heavy Duty Industrial ARRA Compliant C Buy American Compliant C Catalog Number 71630NP Cord Diameter 0.465 to 1.15 in Cord Type All Listed Portables Country of Origin CN Currency USD Dimensions 2.13 in L x 2.13 in W x 2.86 in H Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 1.50 in Height [Metric] 3.8100 cm Length 4.10 in Length [Metric] 10.4140 cm Material Composite NEMA Rating L16-30P Number Of Poles 3 Phase 3 Replaced Catalog Number 71630NPC Returnable Y Size 2.13 in x 2.13 in x 2.86 in Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E1381 Guide No. AXUTCSA C22.2 No. 17/182.2 File No. LR16215 Guide No. 20T2Federal Specification W-C-596NOM CertifiedCE MarkedNEMA WD1/WD5/WD6UL94 HB Flammability Rating Temperature Rating -40 to 60 °C Terminal Type Screw Type Plugs UNSPSC 39121402 UPC 11 78178669722 UPC 12 78178669722 Wattage 14,400 W Width 2.20 in Width [Metric] 5.5880 cm Wire Size #18 AWG to #8 AWG Stock Status NONSTOCK Brand Bryant® Manufacturer Hubbell Amperage Rating 30 A Color Black/White Number of Wires 4 Voltage Rating 3 Phase 480 VAC Extra Heavy Duty Industrial Standard Product Hand grip features wide-rib, non-slip design Configuration specific plug face surrounds blades to prevent infiltration of contaminants Captive, combination slotted/Phillips® assembly screws Double wall construction for extra durability Neutral blade is nickel plated for easy identification Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention Cord mounted 14 to 8 AWG wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Extra Heavy Duty Industrial |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | 71630NP |
Cord Diameter | 0.465 to 1.15 in |
Cord Type | All Listed Portables |
Country of Origin | CN |
Currency | USD |
Dimensions | 2.13 in L x 2.13 in W x 2.86 in H |
Environmental Conditions | Indoor Dry unless protected by additional means |
EU RoHS Indicator | Y |
Grade | Industrial |
Gross Weight Per Pack | 0.3000 lb |
Gross Weight per Pack Metric | 0.14 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8536694020 |
Height | 1.50 in |
Height [Metric] | 3.8100 cm |
Length | 4.10 in |
Length [Metric] | 10.4140 cm |
Material | Composite |
NEMA Rating | L16-30P |
Number Of Poles | 3 |
Phase | 3 |
Replaced Catalog Number | 71630NPC |
Returnable | Y |
Size | 2.13 in x 2.13 in x 2.86 in |
Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498 File No. E1381 Guide No. AXUTCSA C22.2 No. 17/182.2 File No. LR16215 Guide No. 20T2Federal Specification W-C-596NOM CertifiedCE MarkedNEMA WD1/WD5/WD6UL94 HB Flammability Rating |
Temperature Rating | -40 to 60 °C |
Terminal Type | Screw |
Type | Plugs |
UNSPSC | 39121402 |
UPC 11 | 78178669722 |
UPC 12 | 78178669722 |
Wattage | 14,400 W |
Width | 2.20 in |
Width [Metric] | 5.5880 cm |
Wire Size | #18 AWG to #8 AWG |
Stock Status | NONSTOCK |
Brand | Bryant® |
Manufacturer | Hubbell |
Amperage Rating | 30 A |
Color | Black/White |
Number of Wires | 4 |
Voltage Rating | 3 Phase 480 VAC |
Extra Heavy Duty Industrial |
Standard Product |
Hand grip features wide-rib, non-slip design |
Configuration specific plug face surrounds blades to prevent infiltration of contaminants |
Captive, combination slotted/Phillips® assembly screws |
Double wall construction for extra durability |
Neutral blade is nickel plated for easy identification |
Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention |
Cord mounted |
14 to 8 AWG wire |
