Bryant®

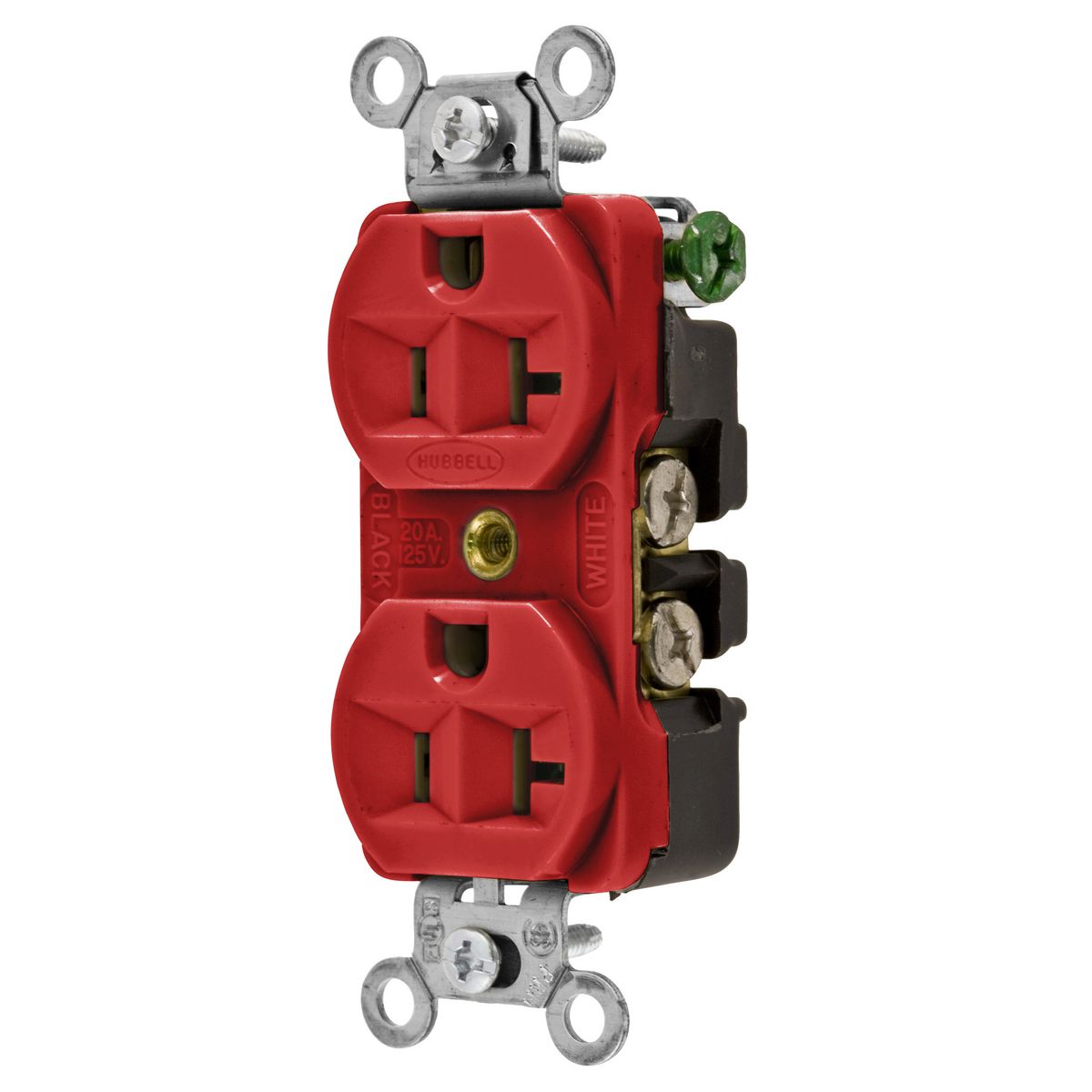

Hubbell® Bryant® Tech-Spec® 5362BREDWR Construction Duplex Heavy Duty Weather Resistant Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Bryant®
Hubbell® Bryant® Tech-Spec® 5362BREDWR Construction Duplex Heavy Duty Weather Resistant Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU992973
MFGR #5362BREDWR
Your Cost: $8.91/ea
Bryant Electric Tech-Spec® Straight Blade Receptacle, Duplex Heavy Duty Weather Resistant Standard, Series: Construction, 125 VAC, 20 A, 1 hp, 60 Hz, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, -40 to 60 deg C, Screw Terminal, Composite/Nylon, Red, 4.06 in H x 1.38 in W x 0.92 in D
Bryant Electric Tech-Spec® Straight Blade Receptacle, Duplex Heavy Duty Weather Resistant Standard, Series: Construction, 125 VAC, 20 A, 1 hp, 60 Hz, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, -40 to 60 deg C, Screw Terminal, Composite/Nylon, Red, 4.06 in H x 1.38 in W x 0.92 in D
Application Hubbell-Pro Extra Heavy Duty ARRA Compliant C Buy American Compliant C Catalog Number 5362BREDWR Country of Origin US Currency USD Environmental Conditions Weather Resistant EU RoHS Indicator N Grade Commercial/Industrial Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.00 in Height [Metric] 2.5400 cm Length 4.00 in Length [Metric] 10.1600 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Series Construction Size Standard Sized Product Standard UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant Standards ARRA CompliantBuy American Act CompliantNEMA WD1/WD5UL 498CSA Certified Temperature Rating Maximum continuous 75?°C; minimum -40?°C (w/o impact) Terminal Type Back/Side Wired Screw Type Weather Resistant Duplex UNSPSC 39121406 UPC 11 78178667012 UPC 12 78178667012 Wattage 1,875 W Width 1.50 in Width [Metric] 3.8100 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Bryant® Manufacturer Hubbell Amperage Rating 20 A Color Red Number of Wires 3 Voltage Rating 125 V Hubbell-Pro Extra Heavy Duty Weather Resistant Nylon construction with circuit ID marking area Heavy duty nickel and brass plated steel wraparound yoke Heavy duty, copper alloy self-grounding system
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Hubbell-Pro Extra Heavy Duty |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | 5362BREDWR |
Country of Origin | US |
Currency | USD |
Environmental Conditions | Weather Resistant |
EU RoHS Indicator | N |
Grade | Commercial/Industrial |
Gross Weight Per Pack | 0.2000 lb |
Gross Weight per Pack Metric | 0.09 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8536698000 |
Height | 1.00 in |
Height [Metric] | 2.5400 cm |
Length | 4.00 in |
Length [Metric] | 10.1600 cm |
Material | Thermoplastic |
Mounting | Screw Mount |
NEMA Rating | 5-20R |
Number Of Poles | 2 |
Phase | 1 |
Returnable | Y |
Series | Construction |
Size | Standard Sized Product |
Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
Standards | ARRA CompliantBuy American Act CompliantNEMA WD1/WD5UL 498CSA Certified |
Temperature Rating | Maximum continuous 75?°C; minimum -40?°C (w/o impact) |
Terminal Type | Back/Side Wired Screw |
Type | Weather Resistant Duplex |
UNSPSC | 39121406 |
UPC 11 | 78178667012 |
UPC 12 | 78178667012 |
Wattage | 1,875 W |
Width | 1.50 in |
Width [Metric] | 3.8100 cm |
Wire Size | #12 AWG to #10 AWG |
Stock Status | NONSTOCK |
Brand | Bryant® |
Manufacturer | Hubbell |
Amperage Rating | 20 A |
Color | Red |
Number of Wires | 3 |
Voltage Rating | 125 V |
Hubbell-Pro Extra Heavy Duty |
Weather Resistant |
Nylon construction with circuit ID marking area |
Heavy duty nickel and brass plated steel wraparound yoke |
Heavy duty, copper alloy self-grounding system |
