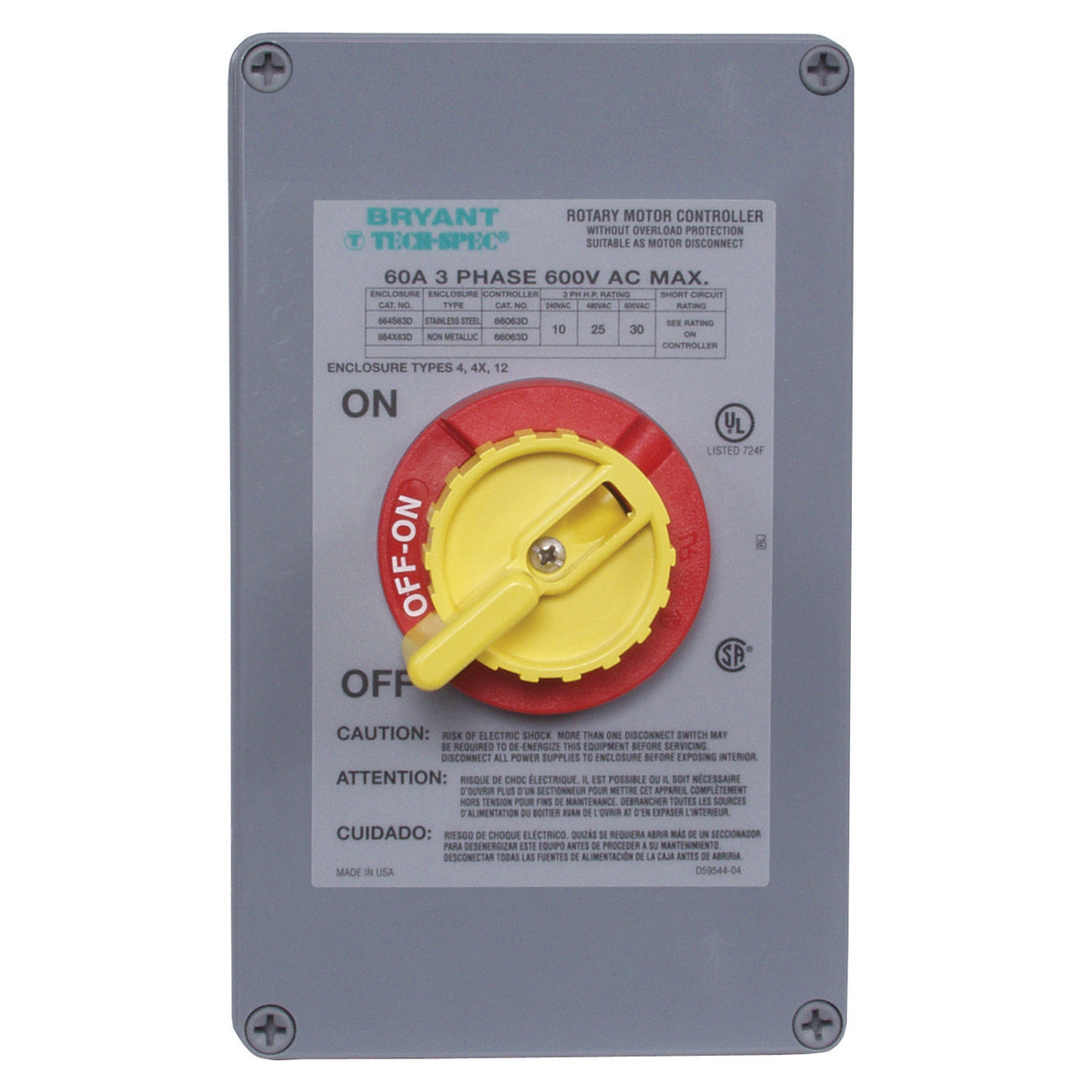

Hubbell® Bryant® 664X63D Enclosed Disconnect Switch, 600 VAC, 30 hp, 60 A, 2-Position Contact Form, 3 Poles
Enclosed Rotary Disconnects
785402
MFG #: 664X63D
Bryant®
581.12000
/ ea
Bryant Electric Enclosed Disconnect Switch, 600 VAC, 60 A, 30 hp, 3 Poles, 10 kA Short Circuit, 2-Position, Rotary Handle Actuator, NEMA 4X/IP65, Threaded Mount, 9 in H x 5.5 in W x 5.55 in D, Polycarbonate
- Applications
- Features
| Rotary |
| Standard Product |
| 10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 VAC |
| 10 hp at 240 VAC 3 phase, 25 hp at 480 VAC 3 phase, 30 hp at 600 VAC 3 phase power rating |
| 2200 VAC minimum dielectric voltage for 1 minute, 6000 cycles at rated switch load electrical life, 10000 minimum cycles mechanical life, -40 to 60 operating temperature, 25 lb·in tightening torque |
| Front wired pressure screw terminal connection |
| Base/Screw mounting, 14 - 4 AWG wire |
