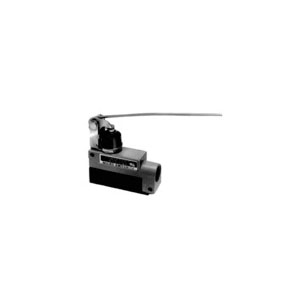

Honeywell BZG1-2RN62 MICRO SWITCH BZG/BZH Enclosed Limit Switch, 125/250/480 VAC/125/250 VDC, 0.25 to 15 A, Low Force Rod Actuator
Honeywell BZG1-2RN62 MICRO SWITCH BZG/BZH Enclosed Limit Switch, 125/250/480 VAC/125/250 VDC, 0.25 to 15 A, Low Force Rod Actuator
SKU616305
MFGR #BZG1-2RN62
Your Cost: $196.11/ea
MICRO SWITCH BZG/BZH switches have a neoprene seal gasket between the housing halves, elastomer boot actuators, sealed conduit connectors, and die-cast aluminum housing. Mounting holes are located outside the switch cavity and accept No. 10 screws.
MICRO SWITCH BZG/BZH switches have a neoprene seal gasket between the housing halves, elastomer boot actuators, sealed conduit connectors, and die-cast aluminum housing. Mounting holes are located outside the switch cavity and accept No. 10 screws.
Action Snap Catalog Number BZG1-2RN62 Country of Origin US Enclosure Type NEMA 1/3/4/13 Gross Weight Per Pack 1 lb Material Die Cast Zinc Operating Temperature -32 to 71 °C Series BZG/BZH Size 3.9 in L x 1.02 in W Standards UL E12252 Type Enclosed UPC 11 66119183126 UPC 12 66119183126 Stock Status NONSTOCK Brand Honeywell Manufacturer Selecta Products Inc. Actuator Low Force Rod Amperage Rating 0.25 to 15 A Contact Configuration 1NO/1NC SPDT Voltage Rating 125/250/480 VAC, 125/250 VDC 0.83 N to 1.95 N (3 oz to 7 oz) operating force 0.28 N (1 oz) minimum release force 18.24 mm (0.718 in) maximum pretravel 21.29 mm (0.838 in) minimum over travel 5.82 mm (0.229 in) maximum differential travel 15 A inductive/0.5 A resistive/0.25 A resistive current With seal boot on plunger, lever field adjustable 360 deg horizontally and 250 deg vertically Industrial sealed Split housing, side mount Grounding screw
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Snap |
| Catalog Number | BZG1-2RN62 |
| Country of Origin | US |
| Enclosure Type | NEMA 1/3/4/13 |
| Gross Weight Per Pack | 1 lb |
| Material | Die Cast Zinc |
| Operating Temperature | -32 to 71 °C |
| Series | BZG/BZH |
| Size | 3.9 in L x 1.02 in W |
| Standards | UL E12252 |
| Type | Enclosed |
| UPC 11 | 66119183126 |
| UPC 12 | 66119183126 |
| Stock Status | NONSTOCK |
| Brand | Honeywell |
| Manufacturer | Selecta Products Inc. |
| Actuator | Low Force Rod |
| Amperage Rating | 0.25 to 15 A |
| Contact Configuration | 1NO/1NC SPDT |
| Voltage Rating | 125/250/480 VAC, 125/250 VDC |
| 0.83 N to 1.95 N (3 oz to 7 oz) operating force |
| 0.28 N (1 oz) minimum release force |
| 18.24 mm (0.718 in) maximum pretravel |
| 21.29 mm (0.838 in) minimum over travel |
| 5.82 mm (0.229 in) maximum differential travel |
| 15 A inductive/0.5 A resistive/0.25 A resistive current |
| With seal boot on plunger, lever field adjustable 360 deg horizontally and 250 deg vertically |
| Industrial sealed |
| Split housing, side mount |
| Grounding screw |
