BURNDY®

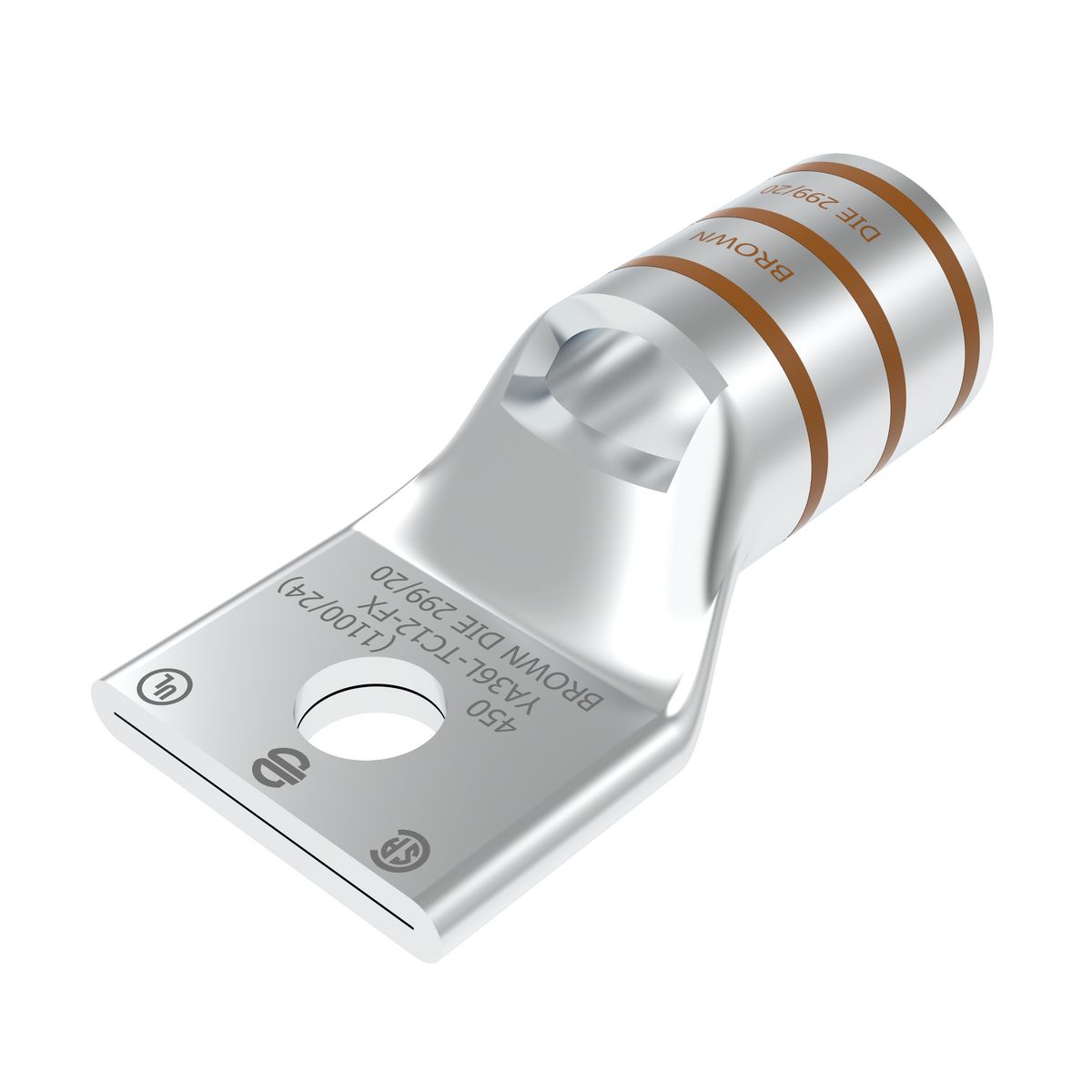

HYLUG 450 MCM (NOM) FLEX
Custom_Product_Images_Illustration
BURNDY®
HYLUG 450 MCM (NOM) FLEX
SKU366822
MFGR #YA36LTC12FX
Your Cost: $45.73/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 1.38 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YA36LTC12FX Color Brown Color Code Brown Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.4500 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.19 in Height [Metric] 3.0226 cm Length 3.29 in Length [Metric] 8.3566 cm Overall Length 3.29 in Returnable Y Series YA-L-FX Specifications 1-3/8 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.74 in W x 0.27 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181002151 UPC 12 781810021514 Voltage Rating 35,000 V Width 1.74 in Width [Metric] 4.4196 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 444.4 kcmil Die Code 20 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1-3/8 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 20, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U34RT Die, (2), Y46 Tool, U34RT Die With PUADP-1 Adapter, (2), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) For die set catalog number and (number of crimps): hydraulic: Y35, Y39, Y750, PAT750 tool, (2) U34RT die, Y46 tool, (2) U34RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool Electro tin plated Conductor size of 444.4 kcmil, 450 flex kcmil Flex conductor 1-3/8 in L Strip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.38 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YA36LTC12FX |
| Color | Brown |
| Color Code | Brown |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4500 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.19 in |
| Height [Metric] | 3.0226 cm |
| Length | 3.29 in |
| Length [Metric] | 8.3566 cm |
| Overall Length | 3.29 in |
| Returnable | Y |
| Series | YA-L-FX |
| Specifications | 1-3/8 in L Wire Strip |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.74 in W x 0.27 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181002151 |
| UPC 12 | 781810021514 |
| Voltage Rating | 35,000 V |
| Width | 1.74 in |
| Width [Metric] | 4.4196 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 444.4 kcmil |
| Die Code | 20 |
| Material | Copper |
| Stud Size | 1/2 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1-3/8 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 20, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U34RT Die, (2), Y46 Tool, U34RT Die With PUADP-1 Adapter, (2), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| For die set catalog number and (number of crimps): hydraulic: Y35, Y39, Y750, PAT750 tool, (2) U34RT die, Y46 tool, (2) U34RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool |
| Electro tin plated |
| Conductor size of 444.4 kcmil, 450 flex kcmil |
| Flex conductor |
| 1-3/8 in L Strip |
