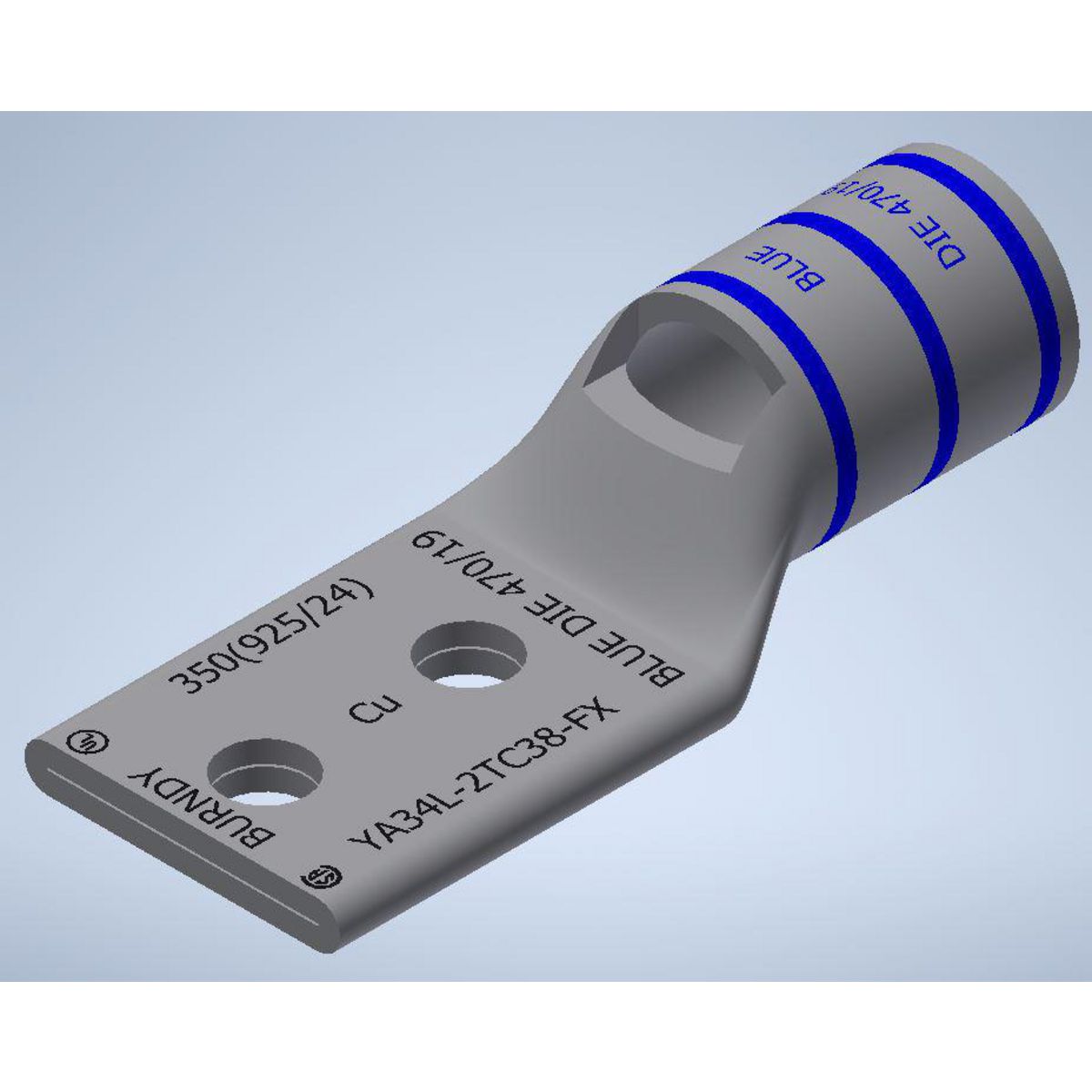

HYLUG-350MCM FLEX-(2)3/8
SKU366819
MFGR #YA34L2TC38FX
$/ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.
Application Wire Termination ARRA Compliant C Barrel Size 1.27 in L Barrel Type Chamfered/Short/Standard Buy American Compliant C Catalog Number YA34L2TC38FX Color Blue Color Code Blue Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.4100 lb Gross Weight per Pack Metric 0.19 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.06 in Height [Metric] 2.6924 cm Length 3.88 in Length [Metric] 9.8552 cm Overall Length 3.88 in Returnable Y Series YA-L-2TC-FX Specifications 1-5/16 in L Wire Strip, 1 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 1.55 in W x 0.23 in THK Tongue Type Standard Straight Type Standard Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001894 UPC 12 781810018941 Voltage Rating 35,000 V Width 1.55 in Width [Metric] 3.9370 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 373.7 kcmil Die Code 19 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 19, Wire Strip Length: 1-1/4 IN, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (2), Y46 Tool, U32RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper For mechanical: MD6, OUR840, MD7-34R tool, (2) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (2) U32RT die, Y46 tool, (2) U32RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool Electro tin plated Conductor size of 350 kcmil Nominal, 925/24, 240 SQ-MM for class 5 conductor Flex conductor 1-5/16 in L Strip, 1 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 1.27 in L |
| Barrel Type | Chamfered/Short/Standard |
| Buy American Compliant | C |
| Catalog Number | YA34L2TC38FX |
| Color | Blue |
| Color Code | Blue |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4100 lb |
| Gross Weight per Pack Metric | 0.19 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.06 in |
| Height [Metric] | 2.6924 cm |
| Length | 3.88 in |
| Length [Metric] | 9.8552 cm |
| Overall Length | 3.88 in |
| Returnable | Y |
| Series | YA-L-2TC-FX |
| Specifications | 1-5/16 in L Wire Strip, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 1.55 in W x 0.23 in THK |
| Tongue Type | Standard Straight |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001894 |
| UPC 12 | 781810018941 |
| Voltage Rating | 35,000 V |
| Width | 1.55 in |
| Width [Metric] | 3.9370 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 373.7 kcmil |
| Die Code | 19 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 19, Wire Strip Length: 1-1/4 IN, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (2), Y46 Tool, U32RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper |
| For mechanical: MD6, OUR840, MD7-34R tool, (2) W32VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W32VT, W32RT die, Y35, Y39, Y750, PAT750 tool, (2) U32RT die, Y46 tool, (2) U32RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool |
| Electro tin plated |
| Conductor size of 350 kcmil Nominal, 925/24, 240 SQ-MM for class 5 conductor |
| Flex conductor |
| 1-5/16 in L Strip, 1 in Stud Hole Spacing |
