HPS (Hammond Power Solutions)

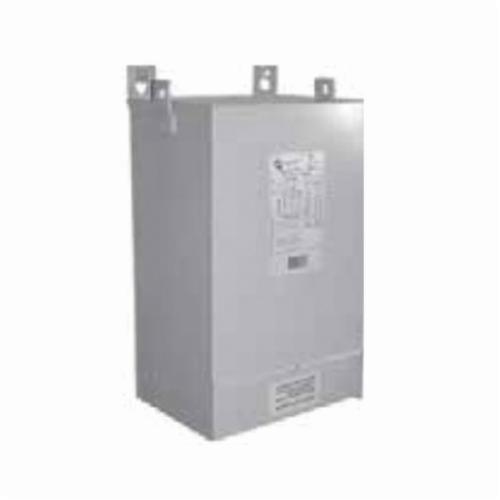

HPS Titan® Q005LEKF Hazardous Location Encapsulated Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary
Custom_Product_Images_Illustration
HPS (Hammond Power Solutions)
HPS Titan® Q005LEKF Hazardous Location Encapsulated Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary
SKU443366
MFGR #Q005LEKF
Price Not Available
List: The HPS Titan® Series of products are competitively priced for the rugged, industrial and commercial indoor and outdoor distribution transformer markets. Hammond Power Solutions™ facilities have the most modern testing equipment for the requirements of ANSI, OSHA, UL, CSA, IEC, NEMA, ABS, DNV, BV, etc.
The HPS Titan® Series of products are competitively priced for the rugged, industrial and commercial indoor and outdoor distribution transformer markets. Hammond Power Solutions™ facilities have the most modern testing equipment for the requirements of ANSI, OSHA, UL, CSA, IEC, NEMA, ABS, DNV, BV, etc.
Application Petrochemical, Marine, Industrial, Oil & gas, Mining, Waste Water Catalog Number Q005LEKF Connection Type Lead Wire/Tab Country of Origin MUL Currency USD Dimensions 17-1/4 in H x 10 in W x 7-3/4 in D Enclosure NQ5-N3R - Indoor or Outdoor Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Volume per Pack Metric 43.82 Gross Volume UOM Metric kg Gross Weight Per Pack 90.0000 lb Gross Weight per Pack Metric 90.00 Harmonization Tariff Schedule Code 8504320000 Height 17.25 in Input Voltage 240X480 V Insulation 180 Length 10.00 in in Mounting Wall Mount Mounting Type Wall Output Voltage 120/240 V Standard CSA, UL, Class 1 Div II Standards cUL ListedClass 2 Div II CompliantABS ApprovedRoHS Compliant Sub Brand HPS Imperator™ Temperature Rating 30 °C Type Hazardous Location Encapsulated UNSPSC 39121027 UPC 11 80342303304 UPC 12 803423033040 Warranty Description cm Wattage 5,000 W Width 7.75 in in Stock Status NONSTOCK Brand HPS (Hammond Power Solutions) Manufacturer Hammond Power Solutions Frequency Rating 60 Hz Phase 1 Power Rating 5 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Petrochemical, Marine, Industrial, Oil & gas, Mining, Waste Water Rugged potted construction for use in harsh environments comes standard with ABS(American Bureau of Ships) and Class 1, Div. II, Groups A, B, C and D ratings and a North American Temperature Classification of T3C Electrostatic shield standard on all three phase units and single phase units over 0.50 kVA All units are encapsulated with electrical grade silica and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration Rear and side entry into an easily accessible and roomy wiring compartment Installation made quick and easy via keyhole mounting slots All welded core construction made with high quality, high permeability silicon steel laminations Copper wound coils with high dielectric strength insulation Front accessible wiring compartment with high and low voltage copper lead wires or tabs 40 deg C maximum
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | Petrochemical, Marine, Industrial, Oil & gas, Mining, Waste Water |
| Catalog Number | Q005LEKF |
| Connection Type | Lead Wire/Tab |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 17-1/4 in H x 10 in W x 7-3/4 in D |
| Enclosure | NQ5-N3R - Indoor or Outdoor |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume per Pack Metric | 43.82 |
| Gross Volume UOM Metric | kg |
| Gross Weight Per Pack | 90.0000 lb |
| Gross Weight per Pack Metric | 90.00 |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 17.25 in |
| Input Voltage | 240X480 V |
| Insulation | 180 |
| Length | 10.00 in in |
| Mounting | Wall Mount |
| Mounting Type | Wall |
| Output Voltage | 120/240 V |
| Standard | CSA, UL, Class 1 Div II |
| Standards | cUL ListedClass 2 Div II CompliantABS ApprovedRoHS Compliant |
| Sub Brand | HPS Imperator™ |
| Temperature Rating | 30 °C |
| Type | Hazardous Location Encapsulated |
| UNSPSC | 39121027 |
| UPC 11 | 80342303304 |
| UPC 12 | 803423033040 |
| Warranty Description | cm |
| Wattage | 5,000 W |
| Width | 7.75 in in |
| Stock Status | NONSTOCK |
| Brand | HPS (Hammond Power Solutions) |
| Manufacturer | Hammond Power Solutions |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Petrochemical, Marine, Industrial, Oil & gas, Mining, Waste Water |
| Rugged potted construction for use in harsh environments comes standard with ABS(American Bureau of Ships) and Class 1, Div. II, Groups A, B, C and D ratings and a North American Temperature Classification of T3C |
| Electrostatic shield standard on all three phase units and single phase units over 0.50 kVA |
| All units are encapsulated with electrical grade silica and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration |
| Rear and side entry into an easily accessible and roomy wiring compartment |
| Installation made quick and easy via keyhole mounting slots |
| All welded core construction made with high quality, high permeability silicon steel laminations |
| Copper wound coils with high dielectric strength insulation |
| Front accessible wiring compartment with high and low voltage copper lead wires or tabs |
| 40 deg C maximum |
