HPS (Hammond Power Solutions)

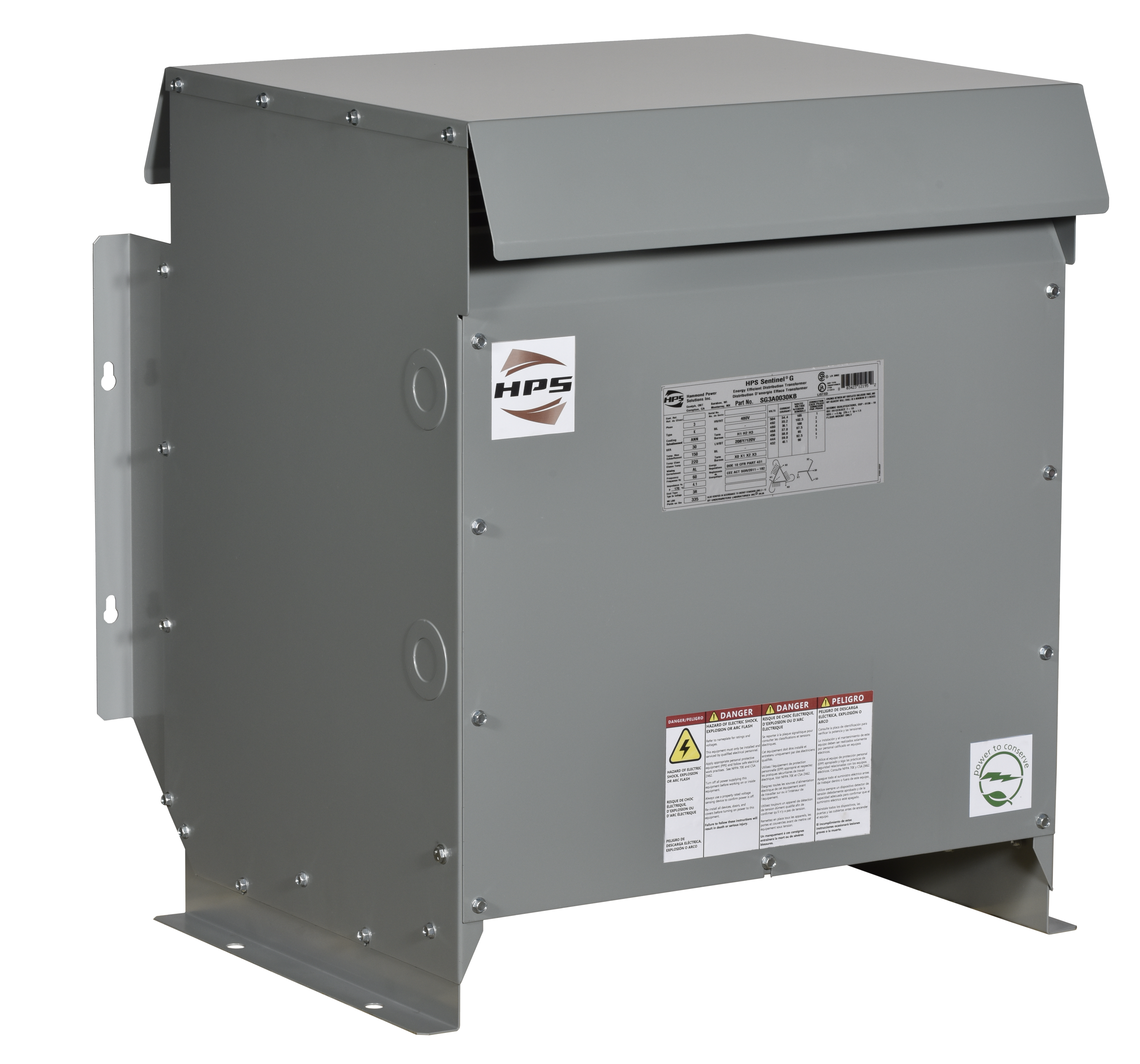

HPS Sentinel® G Sentinel® G SG3C0075KD Energy Efficient General Purpose Distribution Transformer, 480 VAC Delta Primary, 75 kVA
HPS (Hammond Power Solutions)
HPS Sentinel® G Sentinel® G SG3C0075KD Energy Efficient General Purpose Distribution Transformer, 480 VAC Delta Primary, 75 kVA
SKU908735
MFGR #SG3C0075KD
Call For Price
List: HPS Sentinel® G general purpose distribution transformers are rated for 600 volts and below. They are generally used for supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems.
HPS Sentinel® G general purpose distribution transformers are rated for 600 volts and below. They are generally used for supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems.
Application General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. ARRA Compliant C Buy American Compliant C Catalog Number SG3C0075KD Circuit Type ST-20 compliant Connection Type Lug/Pad Cooling Convection cooled Country of Origin MUL Currency USD Dimensions 36 in H x 28.3 in W x 27 in D Enclosure DH3-N3R - Indoor or Outdoor Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 510.0000 lb Height 36.0 in Housing Material 36 in Insulation Floor (Opt. Wall/Ceiling Mount) Insulation Class 220°C KVA Rating 75 Length 27.0 in Material Composition https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Maximum Amperage Rating 240D/120CT V Mounting Floor Mount with Optional Wall/Ceiling Mount Mounting Type Floor Number Of Phases 3 Power Factor 480.00 V Series Energy efficient General Purpose Distribution Transformer Standard CSA, UL Standards UL E112313 Listed, CSA File No. LR3902 Certified, RoHS Compliant Sub Brand Energy efficient General Purpose Distribution Transformer Temperature Rating Typical 30 Average/ 40 Maximum °C Type Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase UNSPSC 39121001 UPC 11 80342312422 UPC 12 803423124229 Width 28.3 in Winding ALUMINUM Stock Status NONSTOCK Brand HPS (Hammond Power Solutions) Manufacturer Hammond Power Solutions Frequency Rating 60 Hz Phase 3 kVA Power Rating 75 kVA Primary Voltage 480D V Secondary Voltage 240D/120CT or 240Y/139 V General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. Aluminum winding Meets latest U.S. DOE 10 CFR part 431 efficiency standards Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment Cores are precision cut to close tolerances which eliminates burrs and improves performance Core is coated to prevent the ingress of moisture Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions Robust interface between core & coils for better short circuit performance Standard 150 deg C temperature rise and 220 deg C insulation class ANSI 61 gray, UL50 enclosure finish Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation Side knockouts standard on all units bottom entry provision conduit entry Typically 3.5% to 6.5% impedance Generation 3 current design 40 deg C maximum temperature ST-20 standards sound level SCD 21 standard primary taps DH3 case style
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SG3C0075KD |
| Circuit Type | ST-20 compliant |
| Connection Type | Lug/Pad |
| Cooling | Convection cooled |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 36 in H x 28.3 in W x 27 in D |
| Enclosure | DH3-N3R - Indoor or Outdoor |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 510.0000 lb |
| Height | 36.0 in |
| Housing Material | 36 in |
| Insulation | Floor (Opt. Wall/Ceiling Mount) |
| Insulation Class | 220°C |
| KVA Rating | 75 |
| Length | 27.0 in |
| Material Composition | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Maximum Amperage Rating | 240D/120CT V |
| Mounting | Floor Mount with Optional Wall/Ceiling Mount |
| Mounting Type | Floor |
| Number Of Phases | 3 |
| Power Factor | 480.00 V |
| Series | Energy efficient General Purpose Distribution Transformer |
| Standard | CSA, UL |
| Standards | UL E112313 Listed, CSA File No. LR3902 Certified, RoHS Compliant |
| Sub Brand | Energy efficient General Purpose Distribution Transformer |
| Temperature Rating | Typical 30 Average/ 40 Maximum °C |
| Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| UNSPSC | 39121001 |
| UPC 11 | 80342312422 |
| UPC 12 | 803423124229 |
| Width | 28.3 in |
| Winding | ALUMINUM |
| Stock Status | NONSTOCK |
| Brand | HPS (Hammond Power Solutions) |
| Manufacturer | Hammond Power Solutions |
| Frequency Rating | 60 Hz |
| Phase | 3 kVA |
| Power Rating | 75 kVA |
| Primary Voltage | 480D V |
| Secondary Voltage | 240D/120CT or 240Y/139 V |
| General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Aluminum winding |
| Meets latest U.S. DOE 10 CFR part 431 efficiency standards |
| Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment |
| Cores are precision cut to close tolerances which eliminates burrs and improves performance |
| Core is coated to prevent the ingress of moisture |
| Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions |
| Robust interface between core & coils for better short circuit performance |
| Standard 150 deg C temperature rise and 220 deg C insulation class |
| ANSI 61 gray, UL50 enclosure finish |
| Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation |
| Side knockouts standard on all units bottom entry provision conduit entry |
| Typically 3.5% to 6.5% impedance |
| Generation 3 current design |
| 40 deg C maximum temperature |
| ST-20 standards sound level |
| SCD 21 standard primary taps |
| DH3 case style |
