HPS (Hammond Power Solutions)

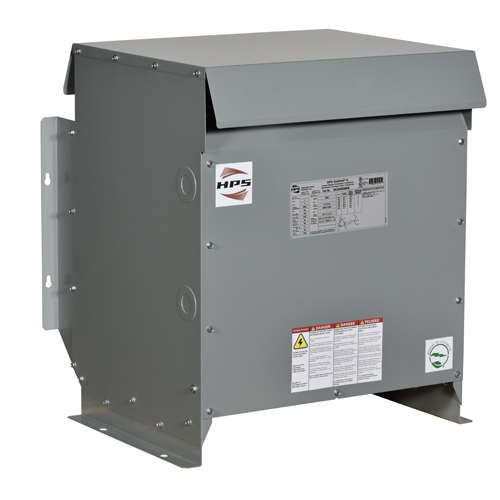

HPS Sentinel® G SG3C0015KD Energy Efficient General Purpose Distribution Transformer, 480 VAC Delta Primary, 15 kVA
Custom_Product_Images_Illustration
HPS (Hammond Power Solutions)
HPS Sentinel® G SG3C0015KD Energy Efficient General Purpose Distribution Transformer, 480 VAC Delta Primary, 15 kVA
SKU917302
MFGR #SG3C0015KD
Price Not Available
List: HPS Sentinel® G Distribution Transformer, Energy Efficient General Purpose, 480 VAC Delta Primary, 240 VAC Delta/120 VAC Secondary, 15 kVA, 60 Hz, 3-Phase, Lug/Pad, Floor/Wall/Ceiling Mount, NEMA 3R, 30 deg C, 97.89% Efficiency, 22 in H x 21.5 in W x 20.1 in D
HPS Sentinel® G Distribution Transformer, Energy Efficient General Purpose, 480 VAC Delta Primary, 240 VAC Delta/120 VAC Secondary, 15 kVA, 60 Hz, 3-Phase, Lug/Pad, Floor/Wall/Ceiling Mount, NEMA 3R, 30 deg C, 97.89% Efficiency, 22 in H x 21.5 in W x 20.1 in D
Application General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. ARRA Compliant C Buy American Compliant C Catalog Number SG3C0015KD Connection Type Lug/Pad Cooling Convection cooled Country of Origin MUL Currency USD Dimensions 22 in H x 21.5 in W x 20.1 in D Efficiency 98.00 % Enclosure DH1-N3R - Indoor or Outdoor Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 210.0000 lb Gross Weight per Pack Metric 95.26 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 22.00 in Height [Metric] 55.8800 cm Insulation Class 220°C KVA Rating 15 Length 20.10 in Length [Metric] 51.0540 cm Material Composition https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Material Composition Declaration https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Mounting Floor or Wall/Ceiling Mount Mounting Type Ceiling/Floor Number Of Phases 3 Standard CSA, UL Standards RoHS CompliantUL File No.E112313CSA File No. LR3902 Sub Brand Energy efficient General Purpose Distribution Transformer Temperature Rating Typical 30 Average/ 40 Maximum °C Type Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase UNSPSC 39121001 UPC 11 80342312415 UPC 12 803423124151 Width 21.50 in Width [Metric] 54.6100 cm Winding A - Aluminum Stock Status NONSTOCK Brand HPS (Hammond Power Solutions) Manufacturer Hammond Power Solutions Frequency Rating 60 Hz Phase 3 Power Rating 15 kVA Primary Voltage 480D V Secondary Voltage 240D/120CT V General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. Aluminum winding Meets latest U.S. DOE 10 CFR part 431 efficiency standards Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment Cores are precision cut to close tolerances which eliminates burrs and improves performance Core is coated to prevent the ingress of moisture Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions Robust interface between core and coils for better short circuit performance Standard 150 deg C temperature rise and 220 deg C insulation class ANSI 61 gray, UL50 enclosure finish Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation Side knockouts standard on all units bottom entry provision conduit entry Typically 3.5% to 6.5% impedance Generation 3 current design 40 deg C maximum temperature ST-20 standards sound level SCD 21 standard primary taps DH1 case style
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SG3C0015KD |
| Connection Type | Lug/Pad |
| Cooling | Convection cooled |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 22 in H x 21.5 in W x 20.1 in D |
| Efficiency | 98.00 % |
| Enclosure | DH1-N3R - Indoor or Outdoor |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 210.0000 lb |
| Gross Weight per Pack Metric | 95.26 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 22.00 in |
| Height [Metric] | 55.8800 cm |
| Insulation Class | 220°C |
| KVA Rating | 15 |
| Length | 20.10 in |
| Length [Metric] | 51.0540 cm |
| Material Composition | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Mounting | Floor or Wall/Ceiling Mount |
| Mounting Type | Ceiling/Floor |
| Number Of Phases | 3 |
| Standard | CSA, UL |
| Standards | RoHS CompliantUL File No.E112313CSA File No. LR3902 |
| Sub Brand | Energy efficient General Purpose Distribution Transformer |
| Temperature Rating | Typical 30 Average/ 40 Maximum °C |
| Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| UNSPSC | 39121001 |
| UPC 11 | 80342312415 |
| UPC 12 | 803423124151 |
| Width | 21.50 in |
| Width [Metric] | 54.6100 cm |
| Winding | A - Aluminum |
| Stock Status | NONSTOCK |
| Brand | HPS (Hammond Power Solutions) |
| Manufacturer | Hammond Power Solutions |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 15 kVA |
| Primary Voltage | 480D V |
| Secondary Voltage | 240D/120CT V |
| General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Aluminum winding |
| Meets latest U.S. DOE 10 CFR part 431 efficiency standards |
| Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment |
| Cores are precision cut to close tolerances which eliminates burrs and improves performance |
| Core is coated to prevent the ingress of moisture |
| Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions |
| Robust interface between core and coils for better short circuit performance |
| Standard 150 deg C temperature rise and 220 deg C insulation class |
| ANSI 61 gray, UL50 enclosure finish |
| Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation |
| Side knockouts standard on all units bottom entry provision conduit entry |
| Typically 3.5% to 6.5% impedance |
| Generation 3 current design |
| 40 deg C maximum temperature |
| ST-20 standards sound level |
| SCD 21 standard primary taps |
| DH1 case style |
