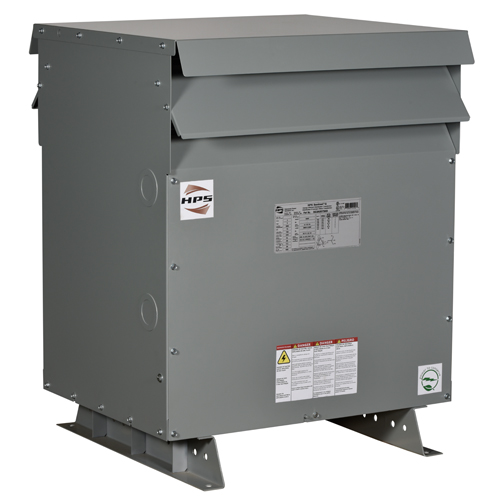

HPS Sentinel® G SG3A0075KK0C Energy Efficient General Purpose Distribution Transformer, 480 VAC Delta Primary, 75 kVA
Custom_Product_Images_Illustration
HPS Sentinel® G SG3A0075KK0C Energy Efficient General Purpose Distribution Transformer, 480 VAC Delta Primary, 75 kVA
SKU1062201
MFGR #SG3A0075KK0C
Call For Price
List: HPS Sentinel® G Distribution Transformer, Energy Efficient General Purpose, 480 VAC Delta Primary, 480Y/277 VAC Secondary, 75 kVA, 60 Hz, 3-Phase, Lug/Pad, Floor Mount, NEMA 3R, 30 deg C, 98.6% Efficiency, 36 in H x 28.3 in W x 27 in D
HPS Sentinel® G Distribution Transformer, Energy Efficient General Purpose, 480 VAC Delta Primary, 480Y/277 VAC Secondary, 75 kVA, 60 Hz, 3-Phase, Lug/Pad, Floor Mount, NEMA 3R, 30 deg C, 98.6% Efficiency, 36 in H x 28.3 in W x 27 in D
Application General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. ARRA Compliant C Buy American Compliant C Catalog Number SG3A0075KK0C Connection Type Lug/Pad Cooling Convection cooled Country of Origin MUL Currency USD Dimensions 36 in H x 28.3 in W x 27 in D Enclosure DH3-N3R - Indoor or Outdoor Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 590.0000 lb Gross Weight per Pack Metric 267.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 36.00 in Height [Metric] 91.4400 cm Insulation Class 220°C KVA Rating 75 Length 27.00 in Length [Metric] 68.5800 cm Material Composition https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Material Composition Declaration https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Mounting Floor (Opt. Wall/Ceiling Mount) Mounting Type Floor Number Of Phases 3 Standard CSA, UL Standards RoHS CompliantUL File No.E112313CSA File No. LR3902 Sub Brand Energy efficient General Purpose Distribution Transformer Temperature Rating Typical 30 Average/ 40 Maximum °C Type Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase UNSPSC 39121001 UPC 11 80342312512 UPC 12 803423125127 Width 28.30 in Width [Metric] 71.8820 cm Winding C - Copper Stock Status NONSTOCK Brand HPS (Hammond Power Solutions) Manufacturer Hammond Power Solutions Frequency Rating 60 Hz Power Rating 75 kVA Primary Voltage 480D V Secondary Voltage 480Y/277 V General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. Copper winding Meets latest U.S. DOE 10 CFR part 431 efficiency standards Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment Cores are precision cut to close tolerances which eliminates burrs and improves performance Core is coated to prevent the ingress of moisture Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions Robust interface between core & coils for better short circuit performance Standard 150 deg C temperature rise and 220 deg C insulation class ANSI 61 gray, UL50 enclosure finish Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation Side knockouts standard on all units bottom entry provision conduit entry Typically 3.5% to 6.5% impedance Generation 3 current design Delta primary, wye-N secondary phase 40 deg C maximum temperature ST-20 standards sound level SCD 19 standard primary taps DH3 case style
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SG3A0075KK0C |
| Connection Type | Lug/Pad |
| Cooling | Convection cooled |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 36 in H x 28.3 in W x 27 in D |
| Enclosure | DH3-N3R - Indoor or Outdoor |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 590.0000 lb |
| Gross Weight per Pack Metric | 267.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 36.00 in |
| Height [Metric] | 91.4400 cm |
| Insulation Class | 220°C |
| KVA Rating | 75 |
| Length | 27.00 in |
| Length [Metric] | 68.5800 cm |
| Material Composition | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Mounting | Floor (Opt. Wall/Ceiling Mount) |
| Mounting Type | Floor |
| Number Of Phases | 3 |
| Standard | CSA, UL |
| Standards | RoHS CompliantUL File No.E112313CSA File No. LR3902 |
| Sub Brand | Energy efficient General Purpose Distribution Transformer |
| Temperature Rating | Typical 30 Average/ 40 Maximum °C |
| Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| UNSPSC | 39121001 |
| UPC 11 | 80342312512 |
| UPC 12 | 803423125127 |
| Width | 28.30 in |
| Width [Metric] | 71.8820 cm |
| Winding | C - Copper |
| Stock Status | NONSTOCK |
| Brand | HPS (Hammond Power Solutions) |
| Manufacturer | Hammond Power Solutions |
| Frequency Rating | 60 Hz |
| Power Rating | 75 kVA |
| Primary Voltage | 480D V |
| Secondary Voltage | 480Y/277 V |
| General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Copper winding |
| Meets latest U.S. DOE 10 CFR part 431 efficiency standards |
| Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment |
| Cores are precision cut to close tolerances which eliminates burrs and improves performance |
| Core is coated to prevent the ingress of moisture |
| Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions |
| Robust interface between core & coils for better short circuit performance |
| Standard 150 deg C temperature rise and 220 deg C insulation class |
| ANSI 61 gray, UL50 enclosure finish |
| Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation |
| Side knockouts standard on all units bottom entry provision conduit entry |
| Typically 3.5% to 6.5% impedance |
| Generation 3 current design |
| Delta primary, wye-N secondary phase |
| 40 deg C maximum temperature |
| ST-20 standards sound level |
| SCD 19 standard primary taps |
| DH3 case style |
