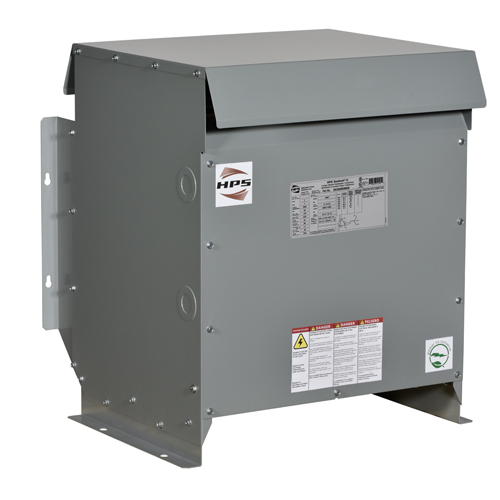

HPS Sentinel® G SG3A0030BK Energy Efficient General Purpose Distribution Transformer, 208 VAC Delta Primary, 30 kVA
Custom_Product_Images_Illustration
HPS Sentinel® G SG3A0030BK Energy Efficient General Purpose Distribution Transformer, 208 VAC Delta Primary, 30 kVA
SKU929528
MFGR #SG3A0030BK
Call For Price
List: HPS Sentinel® G Distribution Transformer, Energy Efficient General Purpose, 208 VAC Delta Primary, 480Y/277 VAC Secondary, 30 kVA, 60 Hz, 3-Phase, Lug/Pad, Floor/Wall/Ceiling Mount, NEMA 3R, 30 deg C, 98.23% Efficiency, 28.8 in H x 25.8 in W x 23.8 in D
HPS Sentinel® G Distribution Transformer, Energy Efficient General Purpose, 208 VAC Delta Primary, 480Y/277 VAC Secondary, 30 kVA, 60 Hz, 3-Phase, Lug/Pad, Floor/Wall/Ceiling Mount, NEMA 3R, 30 deg C, 98.23% Efficiency, 28.8 in H x 25.8 in W x 23.8 in D
Application General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. ARRA Compliant C Buy American Compliant C Catalog Number SG3A0030BK Connection Type Lug/Pad Cooling Convection cooled Country of Origin MUL Currency USD Dimensions 28.8 in H x 25.8 in W x 23.8 in D Efficiency 98.00 % Enclosure DH2-N3R - Indoor or Outdoor Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 310.0000 lb Gross Weight per Pack Metric 140.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 28.80 in Height [Metric] 73.1520 cm Insulation Class 220°C KVA Rating 30 Length 23.80 in Length [Metric] 60.4520 cm Material Composition https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Material Composition Declaration https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf Mounting Floor or Wall/Ceiling Mount Mounting Type Ceiling/Floor Number Of Phases 3 Standard CSA, UL Standards RoHS CompliantUL File No.E112313CSA File No. LR3902 Sub Brand Energy efficient General Purpose Distribution Transformer Temperature Rating Typical 30 Average/ 40 Maximum °C Type Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase UNSPSC 39121001 UPC 11 80342312274 UPC 12 803423122744 Width 25.80 in Width [Metric] 65.5320 cm Winding A - Aluminum Stock Status NONSTOCK Brand HPS (Hammond Power Solutions) Manufacturer Hammond Power Solutions Frequency Rating 60 Hz Phase 3 Power Rating 30 kVA Primary Voltage 208D V Secondary Voltage 480Y/277 V General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. Aluminum winding Meets latest U.S. DOE 10 CFR part 431 efficiency standards Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment Cores are precision cut to close tolerances which eliminates burrs and improves performance Core is coated to prevent the ingress of moisture Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions Robust interface between core and coils for better short circuit performance Standard 150 deg C temperature rise and 220 deg C insulation class ANSI 61 gray, UL50 enclosure finish Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation Side knockouts standard on all units bottom entry provision conduit entry Typically 3.5% to 6.5% impedance Generation 3 current design Delta primary, wye-N secondary phase 40 deg C maximum temperature ST-20 standards sound level SCD 53 standard primary taps DH2 case style
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SG3A0030BK |
| Connection Type | Lug/Pad |
| Cooling | Convection cooled |
| Country of Origin | MUL |
| Currency | USD |
| Dimensions | 28.8 in H x 25.8 in W x 23.8 in D |
| Efficiency | 98.00 % |
| Enclosure | DH2-N3R - Indoor or Outdoor |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 310.0000 lb |
| Gross Weight per Pack Metric | 140.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 28.80 in |
| Height [Metric] | 73.1520 cm |
| Insulation Class | 220°C |
| KVA Rating | 30 |
| Length | 23.80 in |
| Length [Metric] | 60.4520 cm |
| Material Composition | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| Mounting | Floor or Wall/Ceiling Mount |
| Mounting Type | Ceiling/Floor |
| Number Of Phases | 3 |
| Standard | CSA, UL |
| Standards | RoHS CompliantUL File No.E112313CSA File No. LR3902 |
| Sub Brand | Energy efficient General Purpose Distribution Transformer |
| Temperature Rating | Typical 30 Average/ 40 Maximum °C |
| Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| UNSPSC | 39121001 |
| UPC 11 | 80342312274 |
| UPC 12 | 803423122744 |
| Width | 25.80 in |
| Width [Metric] | 65.5320 cm |
| Winding | A - Aluminum |
| Stock Status | NONSTOCK |
| Brand | HPS (Hammond Power Solutions) |
| Manufacturer | Hammond Power Solutions |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 30 kVA |
| Primary Voltage | 208D V |
| Secondary Voltage | 480Y/277 V |
| General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Aluminum winding |
| Meets latest U.S. DOE 10 CFR part 431 efficiency standards |
| Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment |
| Cores are precision cut to close tolerances which eliminates burrs and improves performance |
| Core is coated to prevent the ingress of moisture |
| Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions |
| Robust interface between core and coils for better short circuit performance |
| Standard 150 deg C temperature rise and 220 deg C insulation class |
| ANSI 61 gray, UL50 enclosure finish |
| Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation |
| Side knockouts standard on all units bottom entry provision conduit entry |
| Typically 3.5% to 6.5% impedance |
| Generation 3 current design |
| Delta primary, wye-N secondary phase |
| 40 deg C maximum temperature |
| ST-20 standards sound level |
| SCD 53 standard primary taps |
| DH2 case style |
