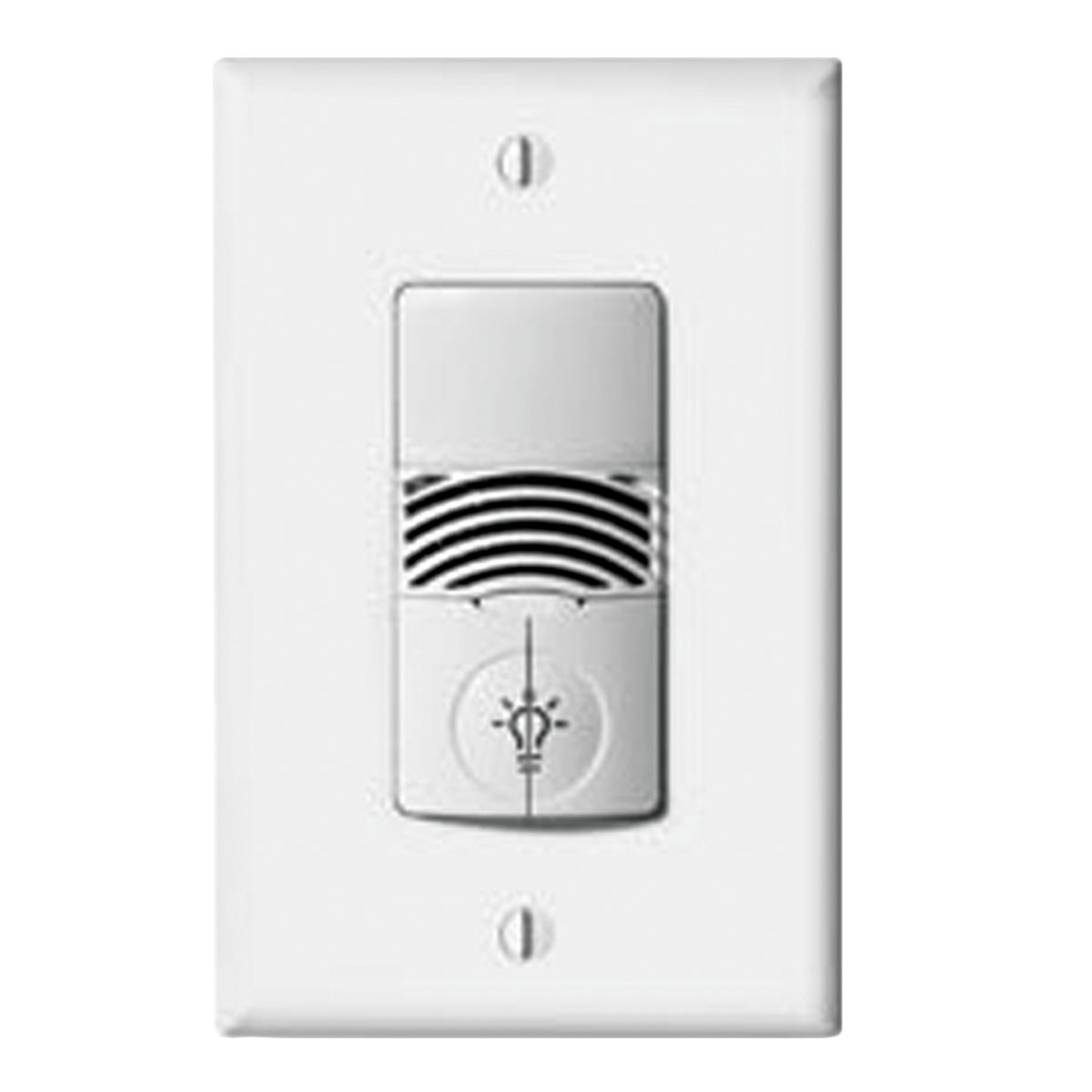

Greengate ONW-D-1001-DMV-W NeoSwitch ONW-D Dual Relay Wall Mount Occupancy Sensor With Neutral, 230/277 VAC, Dual Technology Sensor
Custom_Product_Images_Illustration
Greengate ONW-D-1001-DMV-W NeoSwitch ONW-D Dual Relay Wall Mount Occupancy Sensor With Neutral, 230/277 VAC, Dual Technology Sensor
SKU860830
MFGR #ONW-D-1001-DMV-W
Your Cost: $97.11/ea
The Dual Technology Dual Relay Occupancy Sensing Wall Switch is a motion sensing lighting control and conventional wall switch all-in-one that is used for energy savings and convenience. The unit contains two relays that allow the control of two separate loads. It does not require a neutral wire for installation making it ideal for retrofit applications. Dual Tech Dual Relay, No Neutral, 120/277V Wall Switch Sensor, White.
The Dual Technology Dual Relay Occupancy Sensing Wall Switch is a motion sensing lighting control and conventional wall switch all-in-one that is used for energy savings and convenience. The unit contains two relays that allow the control of two separate loads. It does not require a neutral wire for installation making it ideal for retrofit applications. Dual Tech Dual Relay, No Neutral, 120/277V Wall Switch Sensor, White.
Amperage Rating 6.7/9.8/10 A Application Lighting ARRA Compliant C Buy American Compliant C Catalog Number ONW-D-1001-DMV-W Color White Control Output Automatic/Manual On Country of Origin MY Currency USD Dimensions 2.618 in H x 1.752 in W x 1.9 in D EU RoHS Indicator C Gross Weight Per Pack 0.5460 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536507000 Height 5.25 in Height [Metric] 13.3350 cm Lamp Type Fluorescent/Incandescent/LED Length 3.31 in Length [Metric] 8.4150 cm Material ABS Resin Mounting Wall Switch Power Rating 800/1200/2700 VA Response Frequency 50/60 Hz Sensing Range 36 ft. Series ONW-D Standard cULus Listed;FCC Compliant;RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcULus ListedFCC CompliantECCN:EAR99NLR Sub Brand ONW/VNW-D-1001-DMV - Dual Tech/Dual Relay 120/277 (Grd Req) Temperature Rating 32 to 104 °F Time Delay 5/15/30 mins Type Wall Switch Occupancy and Vacancy Sensor - 120/277V Tier Two UNSPSC 39122236 UPC 11 08008352475 UPC 12 080083524754 Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand Cooper Lighting Solutions Manufacturer Cooper Lighting Solutions Coverage 36 ft² Sensor Type Dual Technology/Passive Infrared/Ultrasonic Viewing Angle 180 ° Voltage Rating 120/277 VAC Lighting Ultrasonic and Passive Infrared technologies Air gap switch ensures no leakage current to load Selectable built-in light level sensor NEMA WD7 guide robotic method utilized to verify coverage patterns Automatically adjust light levels based on occupancy or natural light ECO indicator intensity varies in real time in direct response to occupants lighting energy efficiency habits Replace any switch or dimmer with the most comprehensive offering of neutral and non-neutral units Universally recognized light icon ensures all occupants can easily find and adjust lights Surveyed users chose NeoSwitch as the easiest to use wall switch occupancy sensor compared to 4 other leading manufacturers Industry's most comprehensive line-of neutral and non-neutral wiring options for easy installations in new or existing applications Compatible with magnetic and electronic ballasts Self-adjusting time delay Durable injection molded housing ABS resin complies with UL 94V-0 4.195 in H x 1.732 in W strap mounting Red LED for PIR detection Green LED for ultrasonic detection Green LED acts as EcoMeter or nightlight locator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 6.7/9.8/10 A |
| Application | Lighting |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ONW-D-1001-DMV-W |
| Color | White |
| Control Output | Automatic/Manual On |
| Country of Origin | MY |
| Currency | USD |
| Dimensions | 2.618 in H x 1.752 in W x 1.9 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5460 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536507000 |
| Height | 5.25 in |
| Height [Metric] | 13.3350 cm |
| Lamp Type | Fluorescent/Incandescent/LED |
| Length | 3.31 in |
| Length [Metric] | 8.4150 cm |
| Material | ABS Resin |
| Mounting | Wall Switch |
| Power Rating | 800/1200/2700 VA |
| Response Frequency | 50/60 Hz |
| Sensing Range | 36 ft. |
| Series | ONW-D |
| Standard | cULus Listed;FCC Compliant;RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcULus ListedFCC CompliantECCN:EAR99NLR |
| Sub Brand | ONW/VNW-D-1001-DMV - Dual Tech/Dual Relay 120/277 (Grd Req) |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 5/15/30 mins |
| Type | Wall Switch Occupancy and Vacancy Sensor - 120/277V Tier Two |
| UNSPSC | 39122236 |
| UPC 11 | 08008352475 |
| UPC 12 | 080083524754 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | Cooper Lighting Solutions |
| Manufacturer | Cooper Lighting Solutions |
| Coverage | 36 ft² |
| Sensor Type | Dual Technology/Passive Infrared/Ultrasonic |
| Viewing Angle | 180 ° |
| Voltage Rating | 120/277 VAC |
| Lighting |
| Ultrasonic and Passive Infrared technologies |
| Air gap switch ensures no leakage current to load |
| Selectable built-in light level sensor |
| NEMA WD7 guide robotic method utilized to verify coverage patterns |
| Automatically adjust light levels based on occupancy or natural light |
| ECO indicator intensity varies in real time in direct response to occupants lighting energy efficiency habits |
| Replace any switch or dimmer with the most comprehensive offering of neutral and non-neutral units |
| Universally recognized light icon ensures all occupants can easily find and adjust lights |
| Surveyed users chose NeoSwitch as the easiest to use wall switch occupancy sensor compared to 4 other leading manufacturers |
| Industry's most comprehensive line-of neutral and non-neutral wiring options for easy installations in new or existing applications |
| Compatible with magnetic and electronic ballasts |
| Self-adjusting time delay |
| Durable injection molded housing |
| ABS resin complies with UL 94V-0 |
| 4.195 in H x 1.732 in W strap mounting |
| Red LED for PIR detection |
| Green LED for ultrasonic detection |
| Green LED acts as EcoMeter or nightlight locator |
