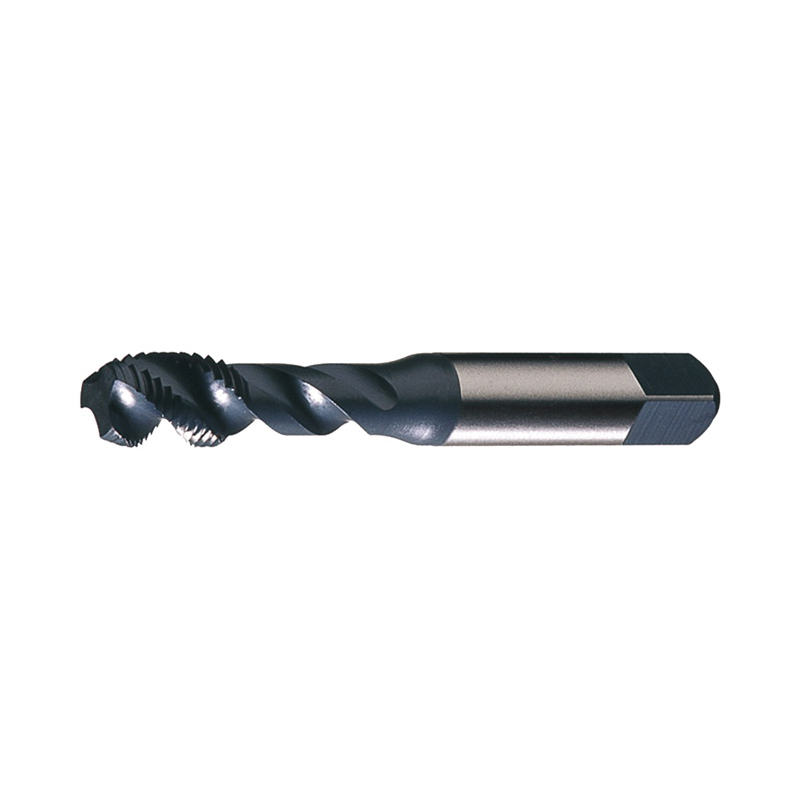

Greenfield Threading™ 330494 Vermont Tap and Die® SFS High Performance Spiral Flute Machine Tap, Imperial, 1/2-13, UNC Thread
Spiral Flute Taps
188750
MFG #: 330494
Greenfield Threading
41.41000
/ ea
Greenfield Threading Vermont Tap and Die® Spiral Flute Machine Tap, High Performance, Series: SFS, Measurement System: Imperial, 1/2-13, UNC, Semi-Bottoming Chamfer, 3 Flutes, M42 HSS-Co 8, Steam Oxide, Class of Fit: 2B/3B, Right Hand Cutting, 15/16 in Thread Length, 3-3/8 in Overall Length, 1/2 in Shank Dia, 0.367 in Shank Length
- Features
Ground thread for economical tapping |
40 deg helix |
H5 thread limit |
1.656 in neck length |
Compatible with CNC machine |
Straight with square shank configuration |
Applicable on soft metals and steel |
7/16 in shank square length |
2.5XD tap drill size |
0.275 in square size |
