GTD 14247 1951473 5303 7/16 20 NF H3 PLG TAP
Straight Flute Taps
12405
MFG #: 14247
WIDIA™
14.64000
/ ea

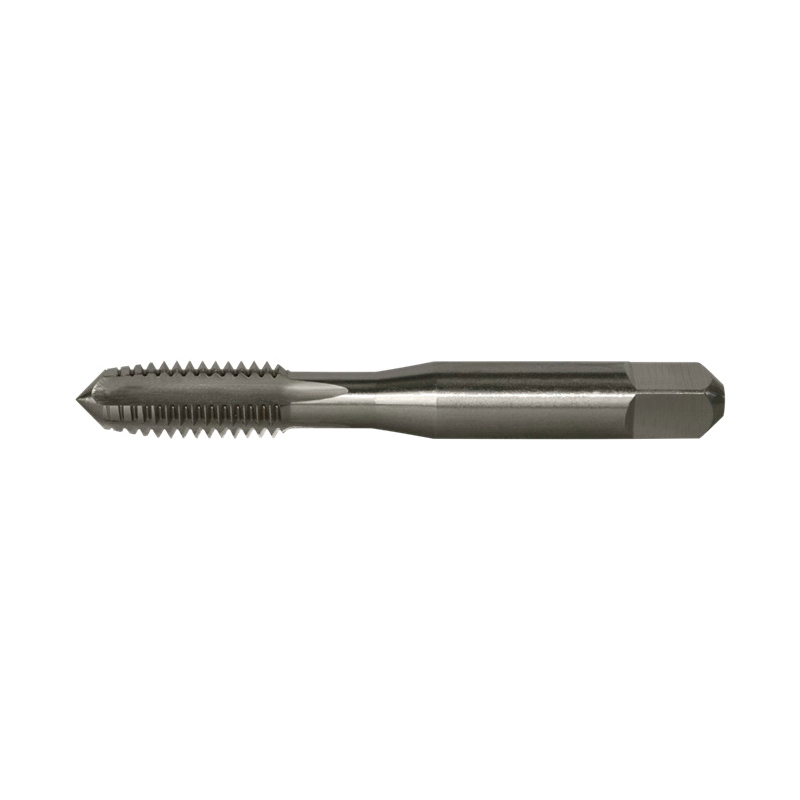

Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP, Measurement System: Imperial, 7/16-20, UNF, Plug Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting, 0.88 in Thread Length, 3.16 in Overall Length, 0.323 in Shank Dia
- Features
| Ground thread for economical tapping |
| Straight with square shank configuration |
| Applicable on cast iron, steel, stainless steel and non-ferrous materials |
| 0.4062 in shank square length |
| 2XD tap drill size |
| 0.242 in square size |
| H3 thread limit |
| 3.5P-5P chamfer |
| H3 thread limit |
