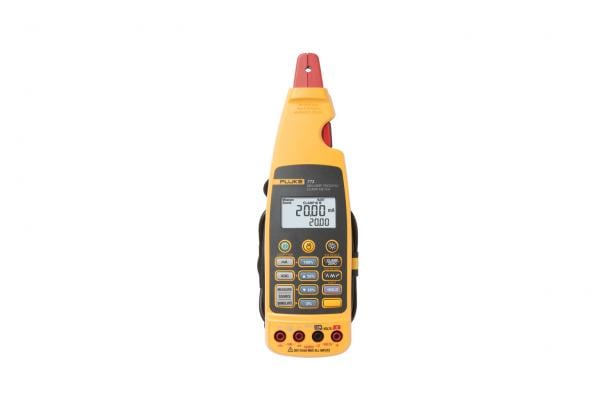

Fluke® FLUKE-773 Milliamp Process Clamp Meter, 0 - 30 VDC, 0 to 20.99 mA, Backlight Display
Custom_Product_Images_Illustration
Fluke®
Fluke® FLUKE-773 Milliamp Process Clamp Meter, 0 - 30 VDC, 0 to 20.99 mA, Backlight Display
SKU497376
MFGR #FLUKE-773
Your Cost: $1,899.99/ea
Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 773 mA Clamp Meter is Fluke?s premier mA Clamp Meter, providing you with the best in troubleshooting and process calibration power.
Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 773 mA Clamp Meter is Fluke?s premier mA Clamp Meter, providing you with the best in troubleshooting and process calibration power.
Alternate Catalog Number 3362365 Amperage Rating 100m A Application Measure output signals without breaking the loop or bringing down the system ARRA Compliant C Buy American Compliant C Catalog Number FLUKE-773 Country of Origin CN Currency USD Dimensions 11.61 in L x 5.91 in W x 2.95 in H Enclosure Hard plastic EU RoHS Indicator U Gross Weight Per Pack 1.3800 lb Gross Weight per Pack Metric 0.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9030320000 Height 2.95 in Height [Metric] 7.4930 cm Length 12.52 in Length [Metric] 31.8008 cm Material Plastic Model Fluke 773 Operating Temperature -10 to 50 °C Power Source (4) AA 1.5 V Alkaline Battery Repeatability Dual backlit display with both mA measurement and percent of 4 to 20 mA span Resolution Range: 0 to 20.99 mA, Accuracy: 0.2% + 2 counts; Range: 21.0 mA to 100.0 mA, Accuracy: 1% + 5 counts; Range: 0 to 30.00 V dc, Accuracy: 0.2% + 2 counts Standard EMI/RFI: Meets EN61326-1, Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. Standards CE Certified, FCC Certified, Meets EN61326-1, N10140 Registered Type Clamp Meter UNSPSC 41111905 UPC 11 09596947582 UPC 12 095969475822 Voltage Accuracy 0.2% + 2 Counts Voltage Rating 0 to 30 VDC Width 5.87 in Width [Metric] 14.9098 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Display Type Backlit Electrical Ratings 0 to 30 VDC, 0 to 100 mA Measure output signals without breaking the loop or bringing down the system Hard plastic enclosure type Measurement spotlight illuminates hard to see wires in dark enclosures Best in class 0.2 % accuracy Dual backlit display with both mA measurement and percent of 4 to 20 mA span Measure 4 to 20 mA signals without ”breaking the loop” Detachable clamp with extension cable for measurements in tight locations Measure 10 to 50 mA signals in older control systems using the 99.9 mA range Automatically change the 4 to 20 mA output for remote testing Power saving features, auto-off, backlight timeout extend battery life Hold function captures and displays changing measurements -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V alkaline, IEC LR6, 40 hours typical power, battery life Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement Scaled mA output provides a continuous mA signal that corresponds to the 4 mA to 20 mA signal measured by the mA clamp, enables milliamp signal logging to a separate logging device without breaking the loop Output mA signal enables a logging DMM or other device to record the 4- to 20 mA signal without breaking the loop, apply a mA input signal to a device and measure its’ 4-20mA output on devices such as valves or mA isolators voltage output linear ramp or 25% step output, automatically change the voltage output for remote testing DC voltage 0 to 30.00 VDC at (0.2% + 2 counts) accuracy 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 3362365 |
| Amperage Rating | 100m A |
| Application | Measure output signals without breaking the loop or bringing down the system |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | FLUKE-773 |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 11.61 in L x 5.91 in W x 2.95 in H |
| Enclosure | Hard plastic |
| EU RoHS Indicator | U |
| Gross Weight Per Pack | 1.3800 lb |
| Gross Weight per Pack Metric | 0.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9030320000 |
| Height | 2.95 in |
| Height [Metric] | 7.4930 cm |
| Length | 12.52 in |
| Length [Metric] | 31.8008 cm |
| Material | Plastic |
| Model | Fluke 773 |
| Operating Temperature | -10 to 50 °C |
| Power Source | (4) AA 1.5 V Alkaline Battery |
| Repeatability | Dual backlit display with both mA measurement and percent of 4 to 20 mA span |
| Resolution | Range: 0 to 20.99 mA, Accuracy: 0.2% + 2 counts; Range: 21.0 mA to 100.0 mA, Accuracy: 1% + 5 counts; Range: 0 to 30.00 V dc, Accuracy: 0.2% + 2 counts |
| Standard | EMI/RFI: Meets EN61326-1, Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m. |
| Standards | CE Certified, FCC Certified, Meets EN61326-1, N10140 Registered |
| Type | Clamp Meter |
| UNSPSC | 41111905 |
| UPC 11 | 09596947582 |
| UPC 12 | 095969475822 |
| Voltage Accuracy | 0.2% + 2 Counts |
| Voltage Rating | 0 to 30 VDC |
| Width | 5.87 in |
| Width [Metric] | 14.9098 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Display Type | Backlit |
| Electrical Ratings | 0 to 30 VDC, 0 to 100 mA |
| Measure output signals without breaking the loop or bringing down the system |
| Hard plastic enclosure type |
| Measurement spotlight illuminates hard to see wires in dark enclosures |
| Best in class 0.2 % accuracy |
| Dual backlit display with both mA measurement and percent of 4 to 20 mA span |
| Measure 4 to 20 mA signals without ”breaking the loop” |
| Detachable clamp with extension cable for measurements in tight locations |
| Measure 10 to 50 mA signals in older control systems using the 99.9 mA range |
| Automatically change the 4 to 20 mA output for remote testing |
| Power saving features, auto-off, backlight timeout extend battery life |
| Hold function captures and displays changing measurements |
| -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V alkaline, IEC LR6, 40 hours typical power, battery life |
| Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement |
| Scaled mA output provides a continuous mA signal that corresponds to the 4 mA to 20 mA signal measured by the mA clamp, enables milliamp signal logging to a separate logging device without breaking the loop |
| Output mA signal enables a logging DMM or other device to record the 4- to 20 mA signal without breaking the loop, apply a mA input signal to a device and measure its’ 4-20mA output on devices such as valves or mA isolators voltage output linear ramp or 25% step output, automatically change the voltage output for remote testing |
| DC voltage 0 to 30.00 VDC at (0.2% + 2 counts) accuracy |
| 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range |
