Fluke®

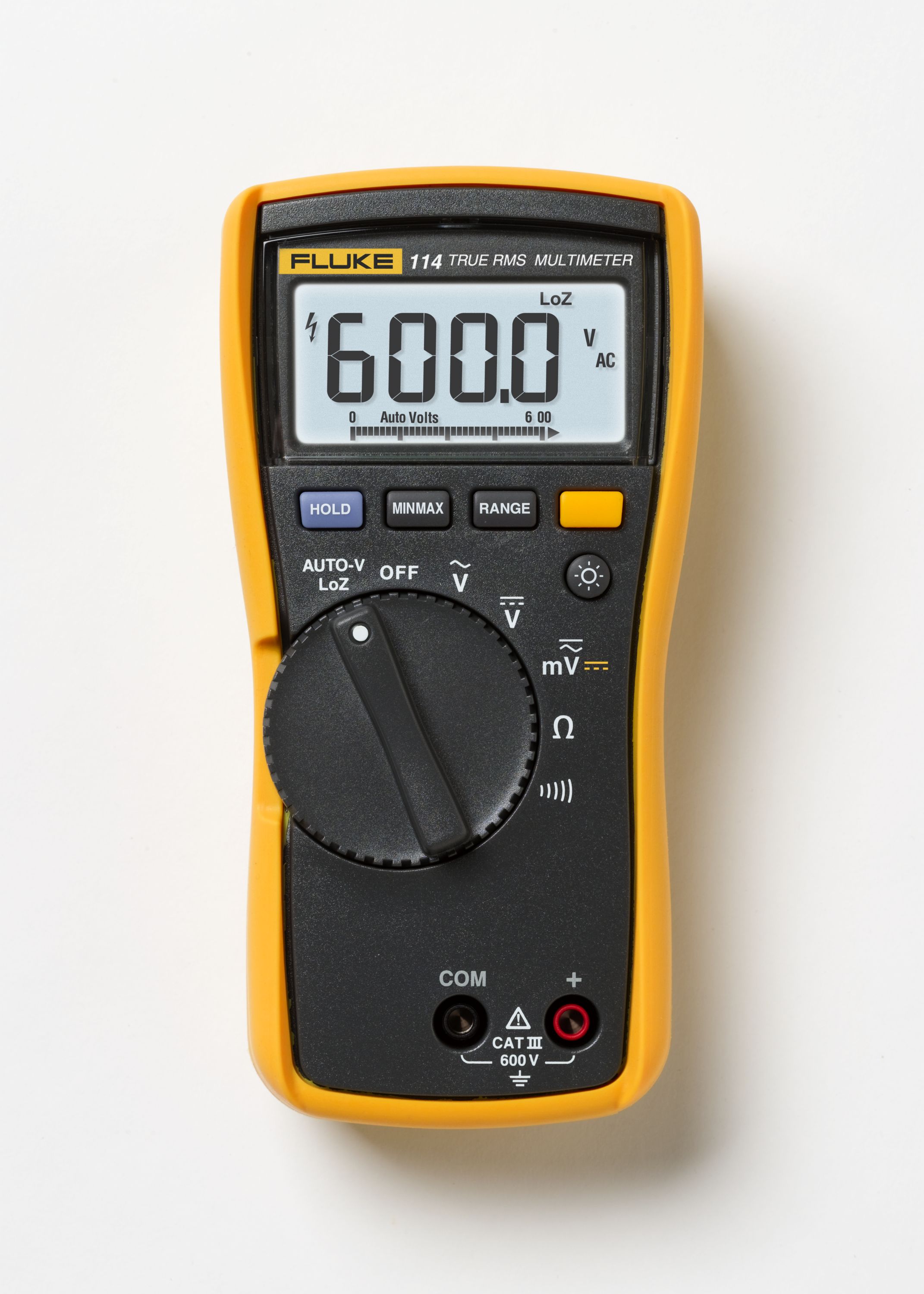

Fluke® FLUKE-114 Compact Digital Multimeter, 600 VDC/VAC, 40 MOhm, 600 VAC/VDC, 40 MOhm
Custom_Product_Images_Illustration
Fluke®
Fluke® FLUKE-114 Compact Digital Multimeter, 600 VDC/VAC, 40 MOhm, 600 VAC/VDC, 40 MOhm
SKU354535
MFGR #FLUKE-114
Your Cost: $216.99/ea
Fluke 114 true-rms digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevent false readings. The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy. Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments. And check out other members of the Fluke 110 family: the Fluke 113 Utility Multimeter, the Fluke 115 Field Service Multimeter, the Fluke 116 HVAC Multimeter and the Fluke 117 Commercial Electrician?s Multimeter.
Fluke 114 true-rms digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevent false readings. The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy. Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments. And check out other members of the Fluke 110 family: the Fluke 113 Utility Multimeter, the Fluke 115 Field Service Multimeter, the Fluke 116 HVAC Multimeter and the Fluke 117 Commercial Electrician?s Multimeter.
Alternate Catalog Number 2538783 Application Compact true-rms meter for everyday electrical troubleshooting ARRA Compliant C Battery 9 Volt Alkaline, NEDA 1604A / IEC 6LR61 Battery Type 9 VDC Alkaline NEDA 1604A/IEC 6LR61 Buy American Compliant C Capacitance 9999 uF Catalog Number FLUKE-114 Country of Origin MY Currency USD Dimensions 6.58 x 3.35 x 1.81 in Diode Test No Display Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec Display Type Digital Enclosure Hard Plastic EU RoHS Indicator U Frequency Rating 5-50k Hz Gross Weight Per Pack 1.6200 lb Gross Weight per Pack Metric 0.74 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9030310000 Height 3.74 in Height [Metric] 9.4996 cm Length 10.83 in Length [Metric] 27.5082 cm Material Hard Plastic Measuring Range 600 VDC/VAC, 40 MOhm Model FLUKE 114 Peak Hold No Resistance 0.1 O to 40 MO Ohm Safety Rating CAT III 600 VAC/VDC Standard CAT III 600 V Standards ARRA CompliantBuy American Act CompliantCE MarkedCSA CertifiedUL ListedECCN 3A992PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation. Temperature Rating -10 ?°C to 50 ?°C (14 ?°F to 122 ?°F) °F Type Digital Multimeter UNSPSC 41113630 UPC 11 09596932417 UPC 12 095969324175 Voltage Rating 6/60/600 V Width 6.30 in Width [Metric] 16.0020 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Compact true-rms meter for everyday electrical troubleshooting AutoVolt automatic AC/DC voltage selection Low input impedance helps prevent false readings due to ghost voltage Work in poorly lit areas with the large white LED backlit display Resistance and continuity Record signal fluctuations using minimum maximum/average Integral holster with probe holders for easy storage Auto and manual ranging Optional TPAK magnetic hanger allows the user hands-free flexibility 2 deg pollution 0.5% 2 VDC accuracy AC voltage at 45 Hz to 500 Hz- 600 V with accuracy of +/-( 2% 3), at 500 Hz to 1 kHz- 600 V with accuracy of +/-(4% 3), at 45 Hz to 500 Hz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(1% 3), at 500 Hz to 1 kHz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(2% 3) Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 40 MOhm with accuracy of +/-(1.5% 2) 400 hr typical alkaline, without backlight Digital 6000 count, update 4/s display Digital 6000 count, update 4/sec display
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2538783 |
| Application | Compact true-rms meter for everyday electrical troubleshooting |
| ARRA Compliant | C |
| Battery | 9 Volt Alkaline, NEDA 1604A / IEC 6LR61 |
| Battery Type | 9 VDC Alkaline NEDA 1604A/IEC 6LR61 |
| Buy American Compliant | C |
| Capacitance | 9999 uF |
| Catalog Number | FLUKE-114 |
| Country of Origin | MY |
| Currency | USD |
| Dimensions | 6.58 x 3.35 x 1.81 in |
| Diode Test | No |
| Display | Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec |
| Display Type | Digital |
| Enclosure | Hard Plastic |
| EU RoHS Indicator | U |
| Frequency Rating | 5-50k Hz |
| Gross Weight Per Pack | 1.6200 lb |
| Gross Weight per Pack Metric | 0.74 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9030310000 |
| Height | 3.74 in |
| Height [Metric] | 9.4996 cm |
| Length | 10.83 in |
| Length [Metric] | 27.5082 cm |
| Material | Hard Plastic |
| Measuring Range | 600 VDC/VAC, 40 MOhm |
| Model | FLUKE 114 |
| Peak Hold | No |
| Resistance | 0.1 O to 40 MO Ohm |
| Safety Rating | CAT III 600 VAC/VDC |
| Standard | CAT III 600 V |
| Standards | ARRA CompliantBuy American Act CompliantCE MarkedCSA CertifiedUL ListedECCN 3A992PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation. |
| Temperature Rating | -10 ?°C to 50 ?°C (14 ?°F to 122 ?°F) °F |
| Type | Digital Multimeter |
| UNSPSC | 41113630 |
| UPC 11 | 09596932417 |
| UPC 12 | 095969324175 |
| Voltage Rating | 6/60/600 V |
| Width | 6.30 in |
| Width [Metric] | 16.0020 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Compact true-rms meter for everyday electrical troubleshooting |
| AutoVolt automatic AC/DC voltage selection |
| Low input impedance helps prevent false readings due to ghost voltage |
| Work in poorly lit areas with the large white LED backlit display |
| Resistance and continuity |
| Record signal fluctuations using minimum maximum/average |
| Integral holster with probe holders for easy storage |
| Auto and manual ranging |
| Optional TPAK magnetic hanger allows the user hands-free flexibility |
| 2 deg pollution |
| 0.5% 2 VDC accuracy |
| AC voltage at 45 Hz to 500 Hz- 600 V with accuracy of +/-( 2% 3), at 500 Hz to 1 kHz- 600 V with accuracy of +/-(4% 3), at 45 Hz to 500 Hz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(1% 3), at 500 Hz to 1 kHz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(2% 3) |
| Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 40 MOhm with accuracy of +/-(1.5% 2) |
| 400 hr typical alkaline, without backlight |
| Digital 6000 count, update 4/s display |
| Digital 6000 count, update 4/sec display |
