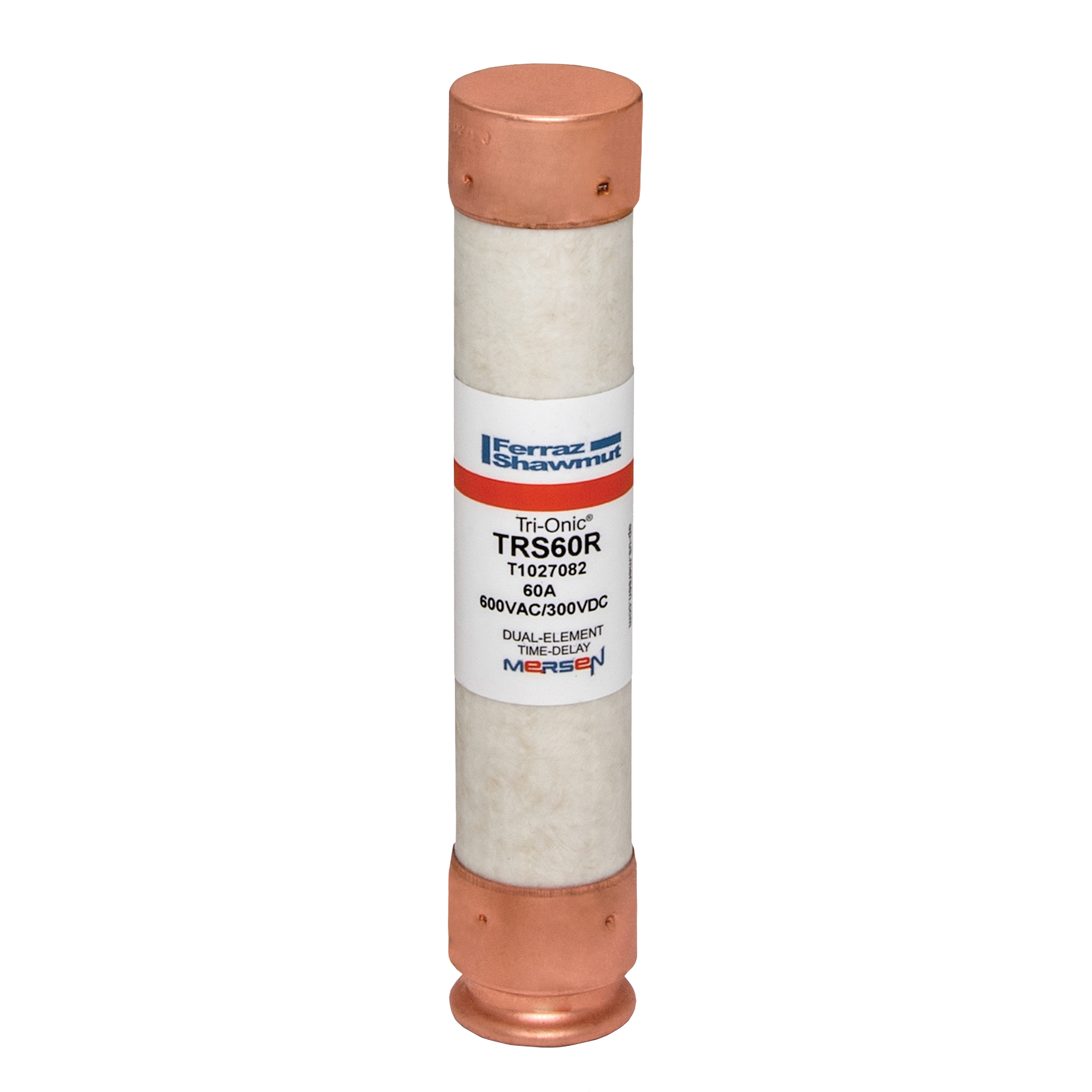

Ferraz Shawmut TRS60R TRI-ONIC® TRS-R Current Limiting Time Delay Fuse, 60 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
Custom_Product_Images_Illustration
Ferraz Shawmut TRS60R TRI-ONIC® TRS-R Current Limiting Time Delay Fuse, 60 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
SKU512600
MFGR #TRS60R
Your Cost: $47.09/ea
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Alternate Catalog Number TRS60R Application Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment ARRA Compliant X Body Size 1-1/16 in Dia x 5-1/2 in L Buy American Compliant X Catalog Number TRS60R Connection Ferrule Country of Origin MX Currency USD Element Dual EU RoHS Indicator N Gross Volume Per Pack 6.18 Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.06 in Height [Metric] 27.0000 mm Indicating|Non~Indicating Non-Indicating Length 5.50 in Length [Metric] 139.7000 mm Material Polyester Mounting Clip Mounting Type Clip Rejection|Non~Rejection Rejection Series TRS-R Size 5.5 x 1.06 in Standard UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12 Standards UL 248-12 File No. E2137CSA C22.2 No.248.12 Sub Brand Tri-Onic?® Terminal Type Ferrule Type North American Power Fuses UNSPSC 39121604 UPC 11 78200174904 UPC 12 782001749040 Width 1.06 in Width [Metric] 27.0000 mm Stock Status NONSTOCK Brand Ferraz Shawmut Manufacturer Ferraz Shawmut Amperage Rating 60 A Body Type Cylindrical Class RK-5 Interrupt Rating 200 kA Voltage Rating 600 VAC Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | TRS60R |
| Application | Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment |
| ARRA Compliant | X |
| Body Size | 1-1/16 in Dia x 5-1/2 in L |
| Buy American Compliant | X |
| Catalog Number | TRS60R |
| Connection | Ferrule |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 6.18 |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.06 in |
| Height [Metric] | 27.0000 mm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 5.50 in |
| Length [Metric] | 139.7000 mm |
| Material | Polyester |
| Mounting | Clip |
| Mounting Type | Clip |
| Rejection|Non~Rejection | Rejection |
| Series | TRS-R |
| Size | 5.5 x 1.06 in |
| Standard | UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12 |
| Standards | UL 248-12 File No. E2137CSA C22.2 No.248.12 |
| Sub Brand | Tri-Onic?® |
| Terminal Type | Ferrule |
| Type | North American Power Fuses |
| UNSPSC | 39121604 |
| UPC 11 | 78200174904 |
| UPC 12 | 782001749040 |
| Width | 1.06 in |
| Width [Metric] | 27.0000 mm |
| Stock Status | NONSTOCK |
| Brand | Ferraz Shawmut |
| Manufacturer | Ferraz Shawmut |
| Amperage Rating | 60 A |
| Body Type | Cylindrical |
| Class | RK-5 |
| Interrupt Rating | 200 kA |
| Voltage Rating | 600 VAC |
| Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment |
| Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block) |
