Ferraz Shawmut

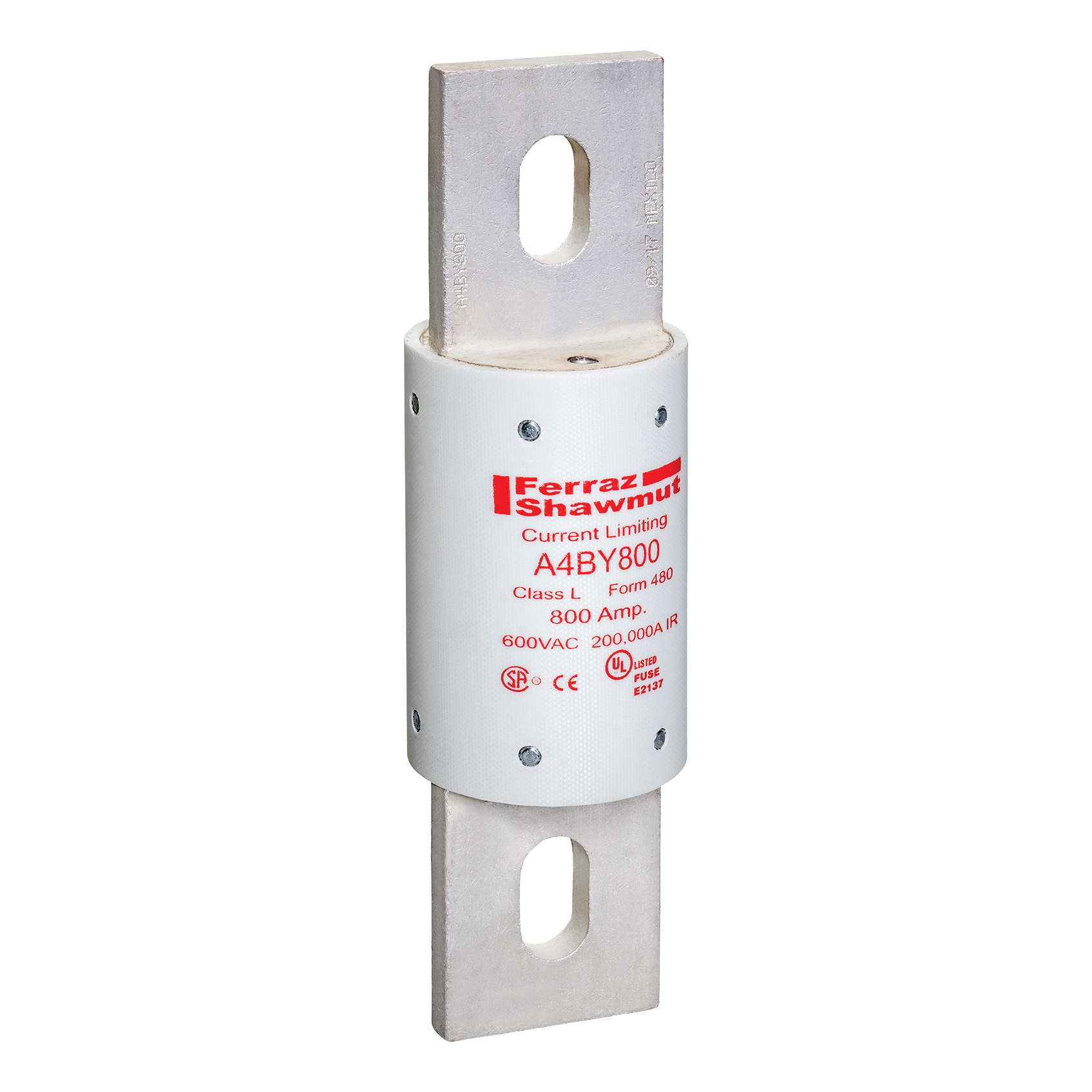

Ferraz Shawmut A4BY800 Amp-Trap® A4BY Current Limiting Time Delay Fuse, 800 A, 600 VAC/300 VDC, 200/100 kA Interrupt, Class L
Custom_Product_Images_Illustration
Ferraz Shawmut
Ferraz Shawmut A4BY800 Amp-Trap® A4BY Current Limiting Time Delay Fuse, 800 A, 600 VAC/300 VDC, 200/100 kA Interrupt, Class L
SKU490240
MFGR #A4BY800
Your Cost: $1,254.00/ea
List: Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100% rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500% rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100% rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500% rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Alternate Catalog Number A4BY800 Application Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers ARRA Compliant X Body Size 2-1/2 in Dia x 8-5/8 in L Buy American Compliant X Catalog Number A4BY800 Connection Blade Country of Origin MX Currency USD Element Dual EU RoHS Indicator Y Gross Volume Per Pack 34.52 Gross Weight Per Pack 3.9500 lb Gross Weight per Pack Metric 1.65 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 2.00 in Height [Metric] 50.8000 mm Indicating|Non~Indicating Non-Indicating Length 8.63 in Length [Metric] 219.2020 mm Material Fiber Mounting Bolt On Mounting Type Bolt-On Rejection|Non~Rejection Rejection Response Time 4 s at 500% Series A4BY Size 8.63 x 2 in Standard UL Listed to Standard 248-10, File E2137 CSA Certified to Standard C22.2, No. 248.10 Standards RoHS CompliantUL 248-10UL File No. E2137CSA C22.2 No.248.10IEC 269-2-1 Sub Brand Amp-Trap?® Terminal Type Blade Type North American Power Fuses UNSPSC 39121627 UPC 11 78200193911 UPC 12 78200193911 Width 2.00 in Width [Metric] 50.8000 mm Stock Status NONSTOCK Brand Ferraz Shawmut Manufacturer Ferraz Shawmut Amperage Rating 800 A Body Type Cylindrical Class L Interrupt Rating 200 kA Voltage Rating 600 VAC Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Glass melamine body and plated terminals provide superior reliability in harsh environments
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | A4BY800 |
| Application | Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers |
| ARRA Compliant | X |
| Body Size | 2-1/2 in Dia x 8-5/8 in L |
| Buy American Compliant | X |
| Catalog Number | A4BY800 |
| Connection | Blade |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 34.52 |
| Gross Weight Per Pack | 3.9500 lb |
| Gross Weight per Pack Metric | 1.65 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 2.00 in |
| Height [Metric] | 50.8000 mm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 8.63 in |
| Length [Metric] | 219.2020 mm |
| Material | Fiber |
| Mounting | Bolt On |
| Mounting Type | Bolt-On |
| Rejection|Non~Rejection | Rejection |
| Response Time | 4 s at 500% |
| Series | A4BY |
| Size | 8.63 x 2 in |
| Standard | UL Listed to Standard 248-10, File E2137 CSA Certified to Standard C22.2, No. 248.10 |
| Standards | RoHS CompliantUL 248-10UL File No. E2137CSA C22.2 No.248.10IEC 269-2-1 |
| Sub Brand | Amp-Trap?® |
| Terminal Type | Blade |
| Type | North American Power Fuses |
| UNSPSC | 39121627 |
| UPC 11 | 78200193911 |
| UPC 12 | 78200193911 |
| Width | 2.00 in |
| Width [Metric] | 50.8000 mm |
| Stock Status | NONSTOCK |
| Brand | Ferraz Shawmut |
| Manufacturer | Ferraz Shawmut |
| Amperage Rating | 800 A |
| Body Type | Cylindrical |
| Class | L |
| Interrupt Rating | 200 kA |
| Voltage Rating | 600 VAC |
| Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers |
| Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Glass melamine body and plated terminals provide superior reliability in harsh environments |
